SDO HMI 2014-01-08 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.43 | 208.95 | 26.00 | 157.25 | 5.81 | 44.60 | -47.77 | 78.71 | 0.7530 | -1011.6 | -227.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

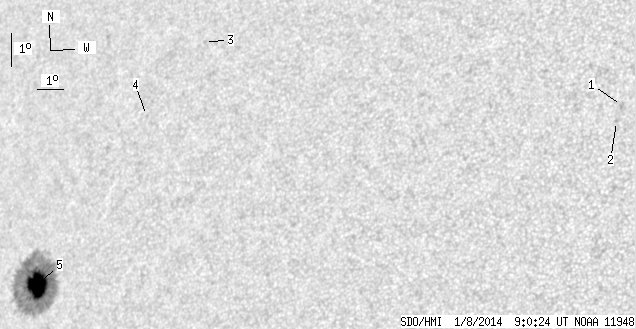

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.64 | 0.00 | 1.51 | 10.16 | 65.84 | -26.53 | 61.87 | 0.5006 | -507.0 | -403.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 9.67 | 65.71 | -26.66 | 62.85 | 0.4991 | -551.0 | -471.5 | |
| 0.00 | 1.11 | 0.00 | 0.77 | 12.70 | 50.21 | -42.16 | 67.74 | 0.7098 | -476.0 | -375.2 | |
| 0.00 | 1.02 | 0.00 | 0.73 | 10.57 | 48.22 | -44.15 | 71.40 | 0.7248 | -547.0 | -516.6 | |
| 34.43 | 202.73 | 26.00 | 153.42 | 5.69 | 44.23 | -48.14 | 79.05 | 0.7572 | -1087.2 | -221.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
