SDO HMI 2014-01-08 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.59 | 0.00 | 15.41 | -14.37 | 112.11 | 20.29 | 240.16 | 0.3883 | -596.6 | -462.5 | |
|
previous
or next observation for the same group /

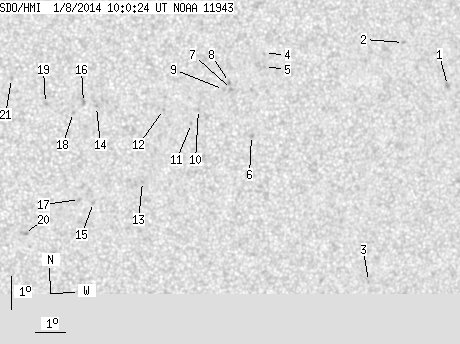

back to the solar disc SDO HMI 2014-01-08 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.21 | 0.00 | 1.26 | -12.81 | 120.87 | 29.04 | 250.90 | 0.5030 | 919.0 | 793.7 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -11.57 | 119.22 | 27.39 | 252.54 | 0.4744 | 729.0 | 587.8 | |
| 0.00 | 1.10 | 0.00 | 0.63 | -18.79 | 119.01 | 27.19 | 238.53 | 0.5092 | 673.0 | 529.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -12.02 | 114.63 | 22.81 | 248.77 | 0.4085 | -815.0 | -590.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -12.41 | 114.67 | 22.84 | 247.89 | 0.4110 | -652.0 | -507.2 | |
| 0.00 | 1.78 | 0.00 | 0.97 | -14.48 | 114.44 | 22.62 | 243.03 | 0.4196 | -694.0 | -601.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -13.12 | 113.65 | 21.83 | 245.40 | 0.4000 | -882.0 | -770.7 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -12.91 | 113.57 | 21.74 | 245.81 | 0.3976 | -938.0 | -784.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -13.13 | 113.39 | 21.57 | 245.15 | 0.3962 | -845.0 | -750.4 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -13.74 | 112.64 | 20.81 | 242.97 | 0.3891 | -755.0 | -579.5 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -14.17 | 112.45 | 20.62 | 241.78 | 0.3893 | -822.0 | -611.3 | |
| 0.00 | 0.76 | 0.00 | 0.41 | -13.77 | 111.50 | 19.68 | 241.71 | 0.3731 | -793.0 | -672.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -15.94 | 111.03 | 19.20 | 236.03 | 0.3830 | -770.0 | -621.2 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -13.72 | 109.35 | 17.53 | 239.20 | 0.3422 | -965.0 | -779.7 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -16.61 | 109.50 | 17.68 | 232.43 | 0.3688 | -702.0 | -619.6 | |
| 0.00 | 2.29 | 0.00 | 1.21 | -13.61 | 108.93 | 17.11 | 238.91 | 0.3353 | -878.0 | -767.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -16.52 | 109.04 | 17.22 | 231.93 | 0.3621 | -976.0 | -714.1 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -13.91 | 108.64 | 16.81 | 237.70 | 0.3337 | -670.0 | -529.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -13.66 | 107.73 | 15.91 | 237.02 | 0.3190 | -789.0 | -738.1 | |
| 0.00 | 3.31 | 0.00 | 1.75 | -17.58 | 107.37 | 15.55 | 226.82 | 0.3519 | -1015.0 | -766.0 | |
| 0.00 | 1.61 | 0.00 | 0.84 | -12.93 | 106.62 | 14.79 | 237.27 | 0.2972 | -889.0 | -671.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
