SDO HMI 2014-01-08 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.76 | 200.92 | 25.98 | 149.92 | 5.72 | 44.47 | -47.36 | 78.75 | 0.7482 | -968.6 | -230.4 | |
|
previous
or next observation for the same group /

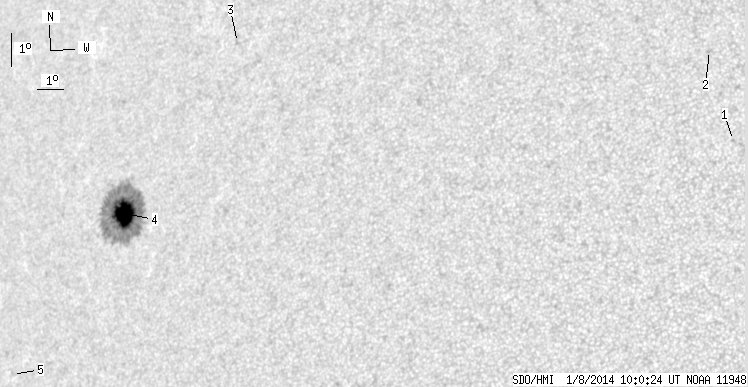

back to the solar disc SDO HMI 2014-01-08 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.62 | 6.94 | 66.76 | -25.07 | 66.73 | 0.4598 | -656.0 | -509.8 | |
| 0.00 | 1.87 | 0.00 | 1.06 | 9.68 | 65.77 | -26.05 | 62.30 | 0.4910 | -642.0 | -476.8 | |
| 0.00 | 1.53 | 0.00 | 1.08 | 10.63 | 48.34 | -43.49 | 71.08 | 0.7174 | -532.0 | -497.8 | |
| 34.76 | 194.98 | 25.98 | 145.98 | 5.69 | 44.23 | -47.60 | 78.92 | 0.7511 | -1051.8 | -228.8 | |
| 0.00 | 1.44 | 0.00 | 1.18 | 1.16 | 39.36 | -52.47 | 85.60 | 0.7975 | 115.0 | 226.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
