SDO HMI 2014-01-08 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.66 | 0.00 | 14.99 | -13.65 | 112.84 | 21.56 | 242.95 | 0.4016 | -585.5 | -414.2 | |
|
previous
or next observation for the same group /

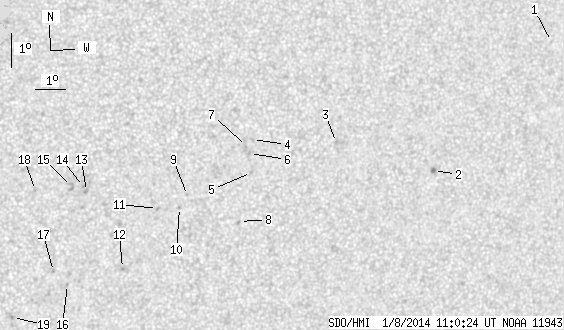

back to the solar disc SDO HMI 2014-01-08 11:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.55 | -8.86 | 124.57 | 33.29 | 259.74 | 0.5534 | 566.0 | 417.5 | |
| 0.00 | 2.72 | 0.00 | 1.56 | -12.82 | 120.87 | 29.59 | 251.14 | 0.5109 | 911.0 | 746.6 | |
| 0.00 | 1.95 | 0.00 | 1.09 | -12.09 | 117.47 | 26.19 | 250.84 | 0.4588 | 641.0 | 512.5 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -12.07 | 114.68 | 23.40 | 249.09 | 0.4175 | -812.0 | -614.3 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -13.05 | 114.74 | 23.46 | 246.91 | 0.4234 | -677.0 | -539.8 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -12.49 | 114.62 | 23.34 | 248.09 | 0.4187 | -757.0 | -674.9 | |
| 0.00 | 0.25 | 0.00 | 0.14 | -12.28 | 114.50 | 23.22 | 248.47 | 0.4159 | -836.0 | -689.7 | |
| 0.00 | 0.76 | 0.00 | 0.42 | -14.53 | 114.49 | 23.21 | 243.47 | 0.4283 | -755.0 | -564.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -13.79 | 112.71 | 21.43 | 243.47 | 0.3983 | -735.0 | -565.1 | |
| 0.00 | 0.93 | 0.00 | 0.50 | -14.16 | 112.48 | 21.20 | 242.41 | 0.3974 | -812.0 | -610.1 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -14.20 | 111.77 | 20.49 | 241.56 | 0.3876 | -791.0 | -626.2 | |
| 0.00 | 1.10 | 0.00 | 0.59 | -16.03 | 110.81 | 19.53 | 236.26 | 0.3881 | -864.0 | -790.5 | |
| 0.00 | 2.12 | 0.00 | 1.12 | -13.74 | 109.44 | 18.16 | 239.98 | 0.3513 | -940.0 | -795.6 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -13.59 | 109.34 | 18.06 | 240.22 | 0.3487 | -994.0 | -804.5 | |
| 0.00 | 4.42 | 0.00 | 2.33 | -13.60 | 108.95 | 17.68 | 239.71 | 0.3433 | -640.0 | -728.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -16.54 | 109.08 | 17.80 | 232.75 | 0.3697 | -984.0 | -692.2 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -16.16 | 108.59 | 17.31 | 232.91 | 0.3599 | -899.0 | -697.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.74 | 107.82 | 16.54 | 237.76 | 0.3284 | -728.0 | -694.1 | |
| 0.00 | 0.93 | 0.00 | 0.50 | -17.57 | 107.40 | 16.12 | 227.83 | 0.3587 | -1018.0 | -843.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
