SDO HMI 2014-01-08 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.32 | 0.00 | 2.38 | -24.01 | 102.80 | 12.62 | 206.83 | 0.4267 | -23.5 | -122.3 | |
|
previous
or next observation for the same group /

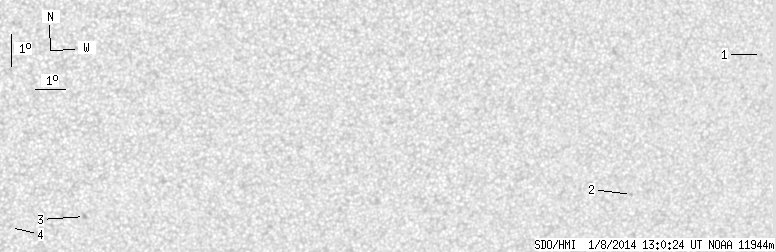

back to the solar disc SDO HMI 2014-01-08 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.76 | 0.00 | 0.44 | -19.78 | 117.12 | 26.94 | 236.59 | 0.5128 | 761.0 | 664.3 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -24.23 | 113.39 | 23.20 | 225.50 | 0.5059 | 747.0 | 637.9 | |
| 0.00 | 2.46 | 0.00 | 1.31 | -25.19 | 95.11 | 4.93 | 192.06 | 0.3739 | -800.0 | -610.4 | |
| 0.00 | 0.25 | 0.00 | 0.14 | -25.54 | 92.71 | 2.52 | 186.13 | 0.3734 | -802.0 | -674.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
