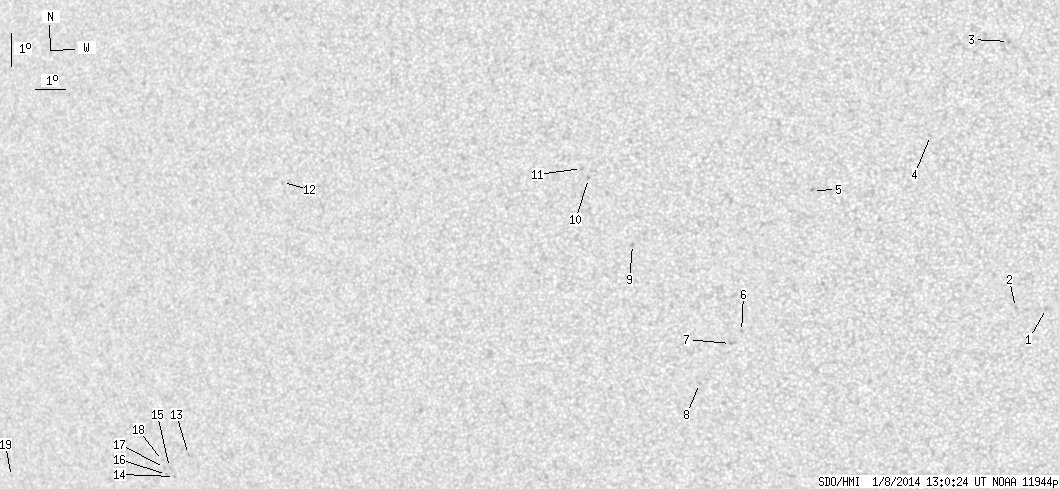

SDO HMI 2014-01-08 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.11 | 0.00 | 12.21 | -19.39 | 65.46 | -24.72 | 128.48 | 0.4793 | -198.8 | -189.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 13:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.66 | -19.26 | 83.56 | -6.62 | 157.75 | 0.2887 | 790.0 | 746.5 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -19.22 | 82.59 | -7.59 | 154.83 | 0.2946 | 786.0 | 613.3 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -11.21 | 82.68 | -7.51 | 135.10 | 0.1824 | -872.0 | -819.1 | |
| 0.00 | 0.76 | 0.00 | 0.39 | -13.99 | 80.19 | -9.99 | 136.42 | 0.2454 | -520.0 | -476.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -15.59 | 76.42 | -13.76 | 131.85 | 0.3089 | 811.0 | 676.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -19.82 | 73.77 | -16.41 | 136.26 | 0.3860 | 777.0 | 621.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -20.18 | 73.37 | -16.81 | 136.28 | 0.3944 | 817.0 | 645.4 | |
| 0.00 | 0.93 | 0.00 | 0.51 | -21.39 | 72.20 | -17.98 | 136.65 | 0.4205 | 866.0 | 723.7 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -17.10 | 70.51 | -19.67 | 125.89 | 0.3989 | -841.0 | -659.6 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -15.08 | 69.29 | -20.89 | 120.01 | 0.3994 | -721.0 | -650.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -14.77 | 69.09 | -21.09 | 119.11 | 0.4000 | -801.0 | -686.1 | |
| 0.00 | 0.93 | 0.00 | 0.55 | -14.89 | 58.89 | -31.29 | 111.81 | 0.5428 | -667.0 | -547.2 | |
| 0.00 | 1.10 | 0.00 | 0.72 | -23.04 | 53.42 | -36.76 | 121.76 | 0.6500 | -735.0 | -607.2 | |
| 0.00 | 1.10 | 0.00 | 0.73 | -23.70 | 52.64 | -37.54 | 122.26 | 0.6622 | -661.0 | -520.8 | |
| 0.00 | 1.02 | 0.00 | 0.67 | -23.41 | 52.53 | -37.65 | 121.80 | 0.6619 | -654.0 | -581.1 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -23.62 | 52.34 | -37.84 | 122.00 | 0.6651 | -546.0 | -478.7 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -23.40 | 52.33 | -37.85 | 121.68 | 0.6641 | -516.0 | -468.8 | |
| 0.00 | 1.10 | 0.00 | 0.73 | -23.18 | 52.33 | -37.86 | 121.37 | 0.6631 | -572.0 | -394.3 | |
| 0.00 | 0.93 | 0.00 | 0.68 | -23.40 | 45.78 | -44.40 | 118.75 | 0.7347 | -519.0 | -433.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
