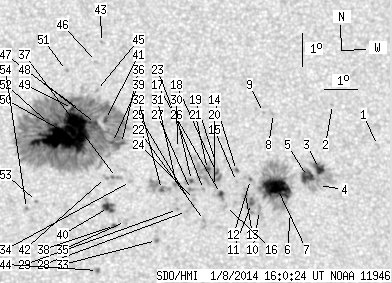

SDO HMI 2014-01-08 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 172.94 | 875.95 | 90.01 | 455.50 | 9.08 | 100.30 | 11.77 | 318.43 | 0.3041 | 249.6 | 135.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.87 | 9.35 | 108.11 | 19.58 | 304.20 | 0.4014 | -628.0 | -575.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 10.56 | 106.76 | 18.23 | 308.64 | 0.3953 | -747.0 | -632.3 | |
| 6.20 | 44.26 | 3.30 | 23.55 | 8.61 | 106.24 | 17.71 | 305.29 | 0.3701 | -967.5 | -357.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 8.10 | 106.18 | 17.65 | 304.21 | 0.3646 | -171.0 | -168.5 | |
| 8.33 | -3.00 | 4.42 | -3.00 | 8.36 | 105.85 | 17.32 | 305.32 | 0.3626 | -1039.4 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 7.30 | 105.28 | 16.74 | 303.72 | 0.3451 | -622.0 | -461.1 | |
| 32.20 | 104.49 | 16.99 | 55.15 | 7.98 | 104.90 | 16.37 | 305.97 | 0.3464 | -1225.2 | -457.0 | |
| 0.00 | 0.59 | 0.00 | 0.32 | 10.25 | 104.89 | 16.36 | 311.03 | 0.3690 | -774.0 | -615.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 10.28 | 104.58 | 16.05 | 311.63 | 0.3654 | -766.0 | -652.4 | |
| 0.00 | 4.42 | 0.00 | 2.32 | 7.31 | 104.32 | 15.79 | 305.33 | 0.3322 | -897.0 | -756.1 | |
| 0.85 | 9.77 | 0.45 | 5.12 | 7.52 | 104.08 | 15.55 | 306.26 | 0.3310 | -1206.3 | -874.2 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 8.24 | 104.08 | 15.54 | 308.00 | 0.3381 | -1035.0 | -887.7 | |
| 0.00 | 4.08 | 0.00 | 2.14 | 7.82 | 103.90 | 15.37 | 307.29 | 0.3316 | -997.0 | -858.9 | |
| 0.00 | 2.21 | 0.00 | 1.16 | 8.50 | 103.65 | 15.12 | 309.39 | 0.3354 | -1015.0 | -814.6 | |
| 0.00 | 0.76 | 0.00 | 0.40 | 8.17 | 103.64 | 15.11 | 308.63 | 0.3318 | -814.0 | -704.4 | |
| 0.00 | 2.12 | 0.00 | 1.11 | 7.41 | 103.27 | 14.74 | 307.46 | 0.3193 | -920.0 | -726.3 | |
| 1.44 | 5.01 | 0.75 | 2.62 | 7.80 | 103.13 | 14.60 | 308.69 | 0.3214 | -1182.8 | -881.5 | |
| 0.68 | 30.75 | 0.36 | 16.09 | 8.43 | 103.03 | 14.50 | 310.40 | 0.3268 | -985.8 | -790.9 | |
| 0.00 | 0.76 | 0.00 | 0.40 | 8.77 | 103.02 | 14.49 | 311.21 | 0.3301 | -421.0 | -340.4 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 8.01 | 102.96 | 14.43 | 309.54 | 0.3213 | -789.0 | -678.0 | |
| 1.44 | -18.00 | 0.76 | -18.00 | 8.52 | 102.76 | 14.23 | 311.14 | 0.3243 | -982.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 6.98 | 102.61 | 14.08 | 307.62 | 0.3063 | -911.0 | -760.8 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 7.92 | 102.62 | 14.08 | 309.98 | 0.3160 | -932.0 | -798.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 7.61 | 102.33 | 13.80 | 309.80 | 0.3091 | -1070.0 | -763.8 | |
| 0.00 | 0.93 | 0.00 | 0.49 | 7.43 | 102.26 | 13.73 | 309.48 | 0.3063 | -944.0 | -781.2 | |
| 0.68 | 4.50 | 0.35 | 2.35 | 8.18 | 102.26 | 13.73 | 311.36 | 0.3143 | -1095.0 | -829.8 | |
| 0.00 | 2.72 | 0.00 | 1.42 | 7.91 | 102.22 | 13.69 | 310.78 | 0.3109 | -1046.0 | -886.1 | |
| 0.00 | 0.76 | 0.00 | 0.40 | 7.25 | 102.07 | 13.54 | 309.40 | 0.3019 | -883.0 | -623.7 | |
| 0.00 | 1.10 | 0.00 | 0.57 | 7.30 | 101.80 | 13.27 | 310.12 | 0.2990 | -884.0 | -692.8 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 9.14 | 101.86 | 13.33 | 314.43 | 0.3203 | -648.0 | -536.8 | |
| 0.00 | 3.31 | 0.00 | 1.72 | 8.05 | 101.79 | 13.26 | 312.02 | 0.3071 | -803.0 | -698.7 | |
| 0.59 | 16.14 | 0.31 | 8.38 | 7.90 | 101.33 | 12.80 | 312.65 | 0.2997 | -1041.9 | -581.3 | |
| 0.00 | 1.61 | 0.00 | 0.83 | 6.36 | 101.13 | 12.60 | 309.05 | 0.2805 | -1138.0 | -988.6 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 8.12 | 100.39 | 11.86 | 315.39 | 0.2911 | 507.0 | 291.3 | |
| 0.00 | 3.06 | 0.00 | 1.57 | 6.92 | 100.21 | 11.68 | 312.75 | 0.2748 | 387.0 | 407.4 | |
| 0.51 | 587.17 | 0.26 | 303.76 | 9.27 | 100.16 | 11.63 | 318.63 | 0.3023 | 558.3 | 426.3 | |
| 0.00 | 4.50 | 0.00 | 2.33 | 8.24 | 99.97 | 11.44 | 316.70 | 0.2875 | 885.0 | 719.9 | |
| 0.68 | 1.95 | 0.35 | 1.00 | 6.80 | 99.87 | 11.34 | 313.25 | 0.2692 | 965.5 | 744.5 | |
| 0.93 | -36.00 | 0.48 | -36.00 | 9.30 | 99.88 | 11.35 | 319.36 | 0.2996 | 757.0 | 999999 | |
| 5.35 | 11.13 | 2.75 | 5.73 | 7.33 | 99.70 | 11.17 | 315.11 | 0.2735 | 1168.7 | 791.2 | |
| 1.87 | -36.00 | 0.97 | -36.00 | 9.99 | 99.69 | 11.16 | 321.32 | 0.3065 | 889.2 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.14 | 8.24 | 99.64 | 11.11 | 317.54 | 0.2837 | 939.0 | 815.0 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 12.34 | 99.67 | 11.14 | 325.81 | 0.3373 | 689.0 | 681.4 | |
| 0.00 | 2.29 | 0.00 | 1.17 | 5.44 | 99.33 | 10.79 | 310.72 | 0.2471 | -1144.0 | -938.3 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 10.87 | 99.45 | 10.92 | 323.68 | 0.3155 | 712.0 | 468.6 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 11.76 | 99.49 | 10.96 | 325.23 | 0.3277 | 751.0 | 600.1 | |
| 1.70 | -36.00 | 0.88 | -36.00 | 9.87 | 99.39 | 10.85 | 321.84 | 0.3016 | 779.5 | 999999 | |
| 1.27 | -36.00 | 0.66 | -36.00 | 10.25 | 98.94 | 10.41 | 323.78 | 0.3023 | 725.9 | 999999 | |
| 1.19 | -36.00 | 0.62 | -36.00 | 10.31 | 98.70 | 10.17 | 324.53 | 0.3007 | 819.7 | 999999 | |
| 105.93 | -36.00 | 54.78 | -36.00 | 9.55 | 98.49 | 9.96 | 323.55 | 0.2885 | 1360.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 11.47 | 98.56 | 10.03 | 327.06 | 0.3153 | -786.0 | -549.3 | |
| 1.10 | -36.00 | 0.57 | -36.00 | 9.85 | 97.96 | 9.43 | 325.65 | 0.2873 | 998.6 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 7.49 | 97.53 | 9.00 | 321.64 | 0.2511 | 966.0 | 740.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 7.28 | 97.23 | 8.70 | 322.07 | 0.2451 | 1078.0 | 870.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
