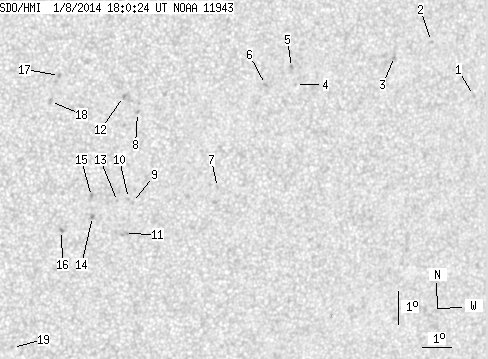

SDO HMI 2014-01-08 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 29.54 | 0.00 | 16.37 | -14.90 | 111.46 | 24.03 | 242.71 | 0.4450 | -477.4 | -377.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 1.07 | -13.12 | 120.97 | 33.54 | 252.30 | 0.5670 | 684.0 | 547.1 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -11.57 | 119.24 | 31.82 | 254.44 | 0.5383 | 753.0 | 641.3 | |
| 0.00 | 2.55 | 0.00 | 1.48 | -12.05 | 118.00 | 30.57 | 253.06 | 0.5221 | 746.0 | 595.7 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -12.99 | 114.69 | 27.27 | 249.62 | 0.4782 | -691.0 | -544.7 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -12.49 | 114.50 | 27.07 | 250.53 | 0.4733 | -859.0 | -743.8 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -13.02 | 113.68 | 26.25 | 248.95 | 0.4637 | -894.0 | -795.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -16.15 | 112.44 | 25.02 | 241.69 | 0.4633 | -611.0 | -479.1 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -13.97 | 109.52 | 22.10 | 243.74 | 0.4088 | -759.0 | -591.1 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -16.67 | 109.66 | 22.23 | 238.00 | 0.4292 | -636.0 | -510.6 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -16.56 | 109.51 | 22.08 | 238.09 | 0.4264 | -763.0 | -696.9 | |
| 0.00 | 3.23 | 0.00 | 1.77 | -17.62 | 109.51 | 22.08 | 235.92 | 0.4344 | -526.0 | -578.8 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -13.50 | 109.02 | 21.59 | 244.34 | 0.3987 | -945.0 | -801.3 | |
| 0.00 | 0.42 | 0.00 | 0.23 | -16.66 | 109.16 | 21.73 | 237.51 | 0.4224 | -795.0 | -743.6 | |
| 0.00 | 1.95 | 0.00 | 1.06 | -17.13 | 108.39 | 20.96 | 235.65 | 0.4158 | -872.0 | -730.2 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -16.52 | 108.28 | 20.86 | 236.81 | 0.4097 | -974.0 | -783.0 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -17.57 | 107.42 | 19.99 | 233.54 | 0.4070 | -930.0 | -803.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -12.92 | 106.90 | 19.47 | 243.64 | 0.3643 | -980.0 | -820.4 | |
| 0.00 | 2.46 | 0.00 | 1.31 | -13.70 | 106.67 | 19.25 | 241.43 | 0.3663 | -874.0 | -604.0 | |
| 0.00 | 1.19 | 0.00 | 0.65 | -21.18 | 106.23 | 18.81 | 224.97 | 0.4272 | 856.0 | 629.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
