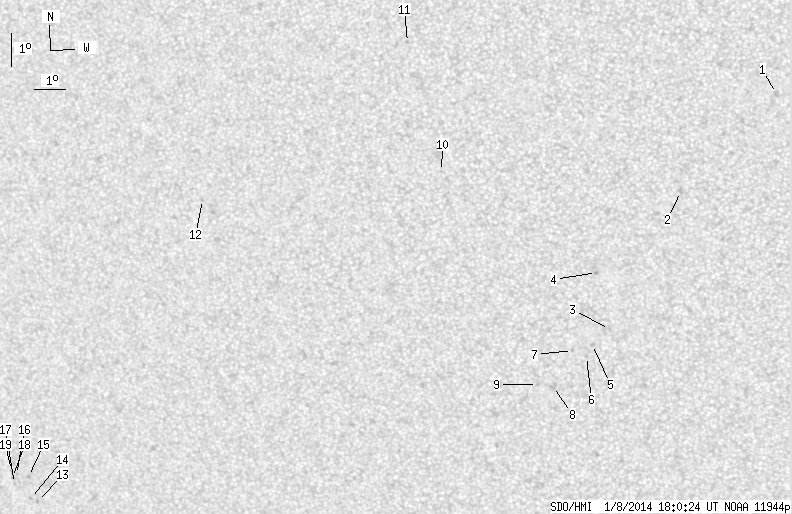

SDO HMI 2014-01-08 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.33 | 0.00 | 15.29 | -19.68 | 66.52 | -20.91 | 132.33 | 0.4351 | -65.7 | -6.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.23 | 0.00 | 1.63 | -12.62 | 79.70 | -7.73 | 139.34 | 0.2023 | -726.0 | -571.4 | |
| 0.00 | 2.29 | 0.00 | 1.18 | -15.52 | 76.62 | -10.81 | 138.35 | 0.2730 | 779.0 | 642.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -19.67 | 74.09 | -13.34 | 141.59 | 0.3513 | 808.0 | 688.5 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -17.93 | 73.81 | -13.61 | 137.54 | 0.3332 | 863.0 | 722.1 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -20.12 | 73.50 | -13.93 | 141.26 | 0.3628 | 840.0 | 646.2 | |
| 0.00 | 0.76 | 0.00 | 0.41 | -20.49 | 73.27 | -14.16 | 141.49 | 0.3696 | 720.0 | 571.6 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -20.30 | 72.83 | -14.59 | 140.32 | 0.3717 | 714.0 | 537.1 | |
| 0.00 | 4.33 | 0.00 | 2.33 | -21.39 | 72.10 | -15.33 | 140.95 | 0.3923 | 699.0 | 653.6 | |
| 0.00 | 1.10 | 0.00 | 0.60 | -21.32 | 71.58 | -15.85 | 139.92 | 0.3968 | 733.0 | 530.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -14.79 | 69.13 | -18.30 | 122.40 | 0.3611 | -712.0 | -552.3 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -10.92 | 68.35 | -19.08 | 111.48 | 0.3465 | -891.0 | -691.5 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -15.42 | 61.16 | -26.27 | 115.88 | 0.4761 | -541.0 | -415.9 | |
| 0.00 | 1.19 | 0.00 | 0.76 | -24.47 | 53.20 | -34.22 | 125.30 | 0.6295 | -809.0 | -663.6 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -24.36 | 52.96 | -34.47 | 124.99 | 0.6316 | -694.0 | -564.7 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -23.67 | 53.09 | -34.33 | 124.09 | 0.6260 | -739.0 | -665.1 | |
| 0.00 | 0.76 | 0.00 | 0.49 | -23.59 | 52.65 | -34.78 | 123.69 | 0.6306 | -720.0 | -544.6 | |
| 0.00 | 0.93 | 0.00 | 0.60 | -23.87 | 52.48 | -34.94 | 123.99 | 0.6340 | -521.0 | -428.6 | |
| 0.00 | 1.70 | 0.00 | 1.08 | -23.68 | 52.46 | -34.96 | 123.70 | 0.6331 | -550.0 | -491.6 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -23.46 | 52.49 | -34.93 | 123.41 | 0.6316 | -502.0 | -454.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
