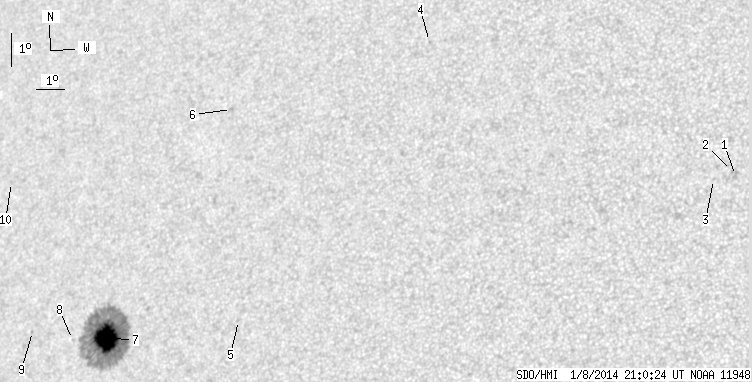

SDO HMI 2014-01-08 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.31 | 229.66 | 25.76 | 153.98 | 5.79 | 44.63 | -41.13 | 76.82 | 0.6741 | -1033.4 | -326.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.06 | 0.00 | 1.66 | 9.74 | 65.87 | -19.90 | 55.38 | 0.4094 | -869.0 | -632.9 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 9.89 | 65.73 | -20.03 | 55.24 | 0.4126 | -711.0 | -580.4 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 9.63 | 65.18 | -20.59 | 56.50 | 0.4177 | -734.0 | -514.7 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 14.17 | 55.21 | -30.56 | 58.60 | 0.5798 | -714.0 | -559.6 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 5.94 | 49.28 | -36.49 | 75.10 | 0.6144 | -566.0 | -384.1 | |
| 0.00 | 1.70 | 0.00 | 1.11 | 12.36 | 48.24 | -37.53 | 65.91 | 0.6542 | -624.0 | -547.6 | |
| 38.31 | 218.88 | 25.76 | 147.31 | 5.62 | 44.25 | -41.51 | 77.33 | 0.6784 | -1217.4 | -322.5 | |
| 0.00 | 0.59 | 0.00 | 0.41 | 5.66 | 42.89 | -42.88 | 77.69 | 0.6955 | -362.0 | -286.9 | |
| 0.00 | 1.10 | 0.00 | 0.78 | 5.98 | 41.21 | -44.56 | 77.71 | 0.7165 | 430.0 | 390.2 | |
| 0.00 | 0.93 | 0.00 | 0.69 | 10.54 | 39.65 | -46.12 | 72.11 | 0.7470 | -410.0 | -347.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
