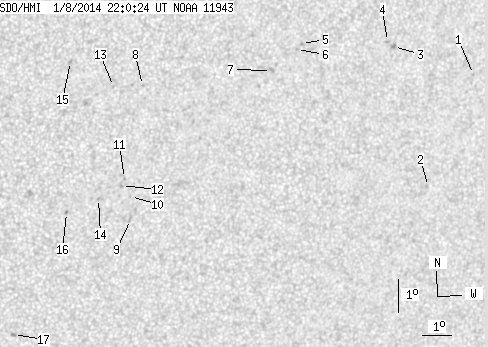

SDO HMI 2014-01-08 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.39 | 0.00 | 12.71 | -14.93 | 111.92 | 26.70 | 244.80 | 0.4828 | -311.8 | -202.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.52 | -12.94 | 121.05 | 35.83 | 253.44 | 0.5976 | 622.0 | 501.4 | |
| 0.00 | 0.25 | 0.00 | 0.16 | -16.35 | 120.00 | 34.78 | 247.45 | 0.5949 | 515.0 | 501.7 | |
| 0.00 | 2.38 | 0.00 | 1.41 | -12.21 | 118.01 | 32.79 | 253.66 | 0.5538 | 874.0 | 737.5 | |
| 0.00 | 1.61 | 0.00 | 0.96 | -12.07 | 117.78 | 32.56 | 253.83 | 0.5501 | 812.0 | 667.7 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -12.23 | 114.76 | 29.55 | 252.33 | 0.5079 | -743.0 | -673.9 | |
| 0.00 | 0.93 | 0.00 | 0.54 | -12.41 | 114.61 | 29.40 | 251.90 | 0.5064 | -698.0 | -595.1 | |
| 0.00 | 2.29 | 0.00 | 1.31 | -13.06 | 113.83 | 28.61 | 250.26 | 0.4977 | -710.0 | -653.0 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -13.64 | 109.53 | 24.31 | 246.37 | 0.4385 | -722.0 | -547.0 | |
| 0.00 | 2.29 | 0.00 | 1.28 | -17.68 | 109.63 | 24.42 | 238.22 | 0.4652 | -638.0 | -564.3 | |
| 0.00 | 1.10 | 0.00 | 0.61 | -16.98 | 109.53 | 24.32 | 239.48 | 0.4591 | -669.0 | -501.2 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -16.44 | 109.26 | 24.04 | 240.30 | 0.4518 | -776.0 | -644.5 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -16.66 | 109.19 | 23.97 | 239.81 | 0.4522 | -832.0 | -676.1 | |
| 0.00 | 0.76 | 0.00 | 0.42 | -13.69 | 108.57 | 23.35 | 245.50 | 0.4251 | -731.0 | -564.4 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -17.07 | 108.47 | 23.25 | 238.29 | 0.4455 | -786.0 | -718.1 | |
| 0.00 | 2.04 | 0.00 | 1.10 | -12.98 | 107.09 | 21.87 | 245.87 | 0.3995 | -853.0 | -695.8 | |
| 0.00 | 0.93 | 0.00 | 0.51 | -17.52 | 107.45 | 22.24 | 236.34 | 0.4354 | -801.0 | -712.1 | |
| 0.00 | 2.04 | 0.00 | 1.13 | -21.28 | 106.19 | 20.98 | 227.74 | 0.4526 | 835.0 | 679.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
