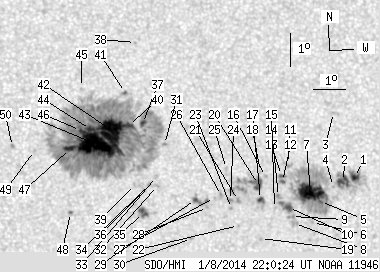

SDO HMI 2014-01-08 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 152.88 | 896.74 | 80.83 | 473.41 | 9.12 | 100.43 | 15.21 | 311.24 | 0.3452 | 195.4 | 147.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-08 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.08 | 41.62 | 2.22 | 22.63 | 8.54 | 106.43 | 21.21 | 300.50 | 0.4171 | -921.2 | -417.1 | |
| 6.80 | -1.00 | 3.69 | -1.00 | 8.41 | 106.07 | 20.85 | 300.66 | 0.4111 | -942.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 10.50 | 105.89 | 20.67 | 305.13 | 0.4262 | -739.0 | -625.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 8.25 | 105.74 | 20.53 | 300.71 | 0.4054 | -826.0 | -648.8 | |
| 0.93 | 140.07 | 0.50 | 75.43 | 7.79 | 105.31 | 20.09 | 300.25 | 0.3957 | -817.8 | -409.0 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 7.15 | 105.02 | 19.80 | 299.17 | 0.3867 | -747.0 | -586.7 | |
| 29.39 | -5.00 | 15.82 | -5.00 | 8.05 | 105.00 | 19.79 | 301.21 | 0.3936 | -1180.9 | 999999 | |
| 0.00 | 3.82 | 0.00 | 2.04 | 7.11 | 104.45 | 19.23 | 299.79 | 0.3783 | -886.0 | -699.8 | |
| 0.00 | 2.80 | 0.00 | 1.50 | 7.32 | 104.37 | 19.15 | 300.38 | 0.3788 | -822.0 | -770.5 | |
| 3.06 | 9.26 | 1.64 | 4.95 | 7.59 | 104.28 | 19.07 | 301.10 | 0.3799 | -1080.5 | -936.4 | |
| 0.00 | 4.42 | 0.00 | 2.38 | 8.88 | 104.32 | 19.10 | 303.93 | 0.3914 | -708.0 | -451.0 | |
| 0.76 | -5.00 | 0.41 | -5.00 | 8.37 | 104.13 | 18.92 | 303.06 | 0.3844 | -1036.0 | 999999 | |
| 0.85 | -5.00 | 0.46 | -5.00 | 8.55 | 104.11 | 18.90 | 303.48 | 0.3857 | -860.0 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.04 | 7.91 | 103.99 | 18.77 | 302.24 | 0.3785 | -1020.0 | -910.5 | |
| 0.00 | 0.76 | 0.00 | 0.41 | 7.55 | 103.84 | 18.63 | 301.61 | 0.3734 | -734.0 | -569.1 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 8.51 | 103.61 | 18.39 | 304.11 | 0.3785 | -697.0 | -599.7 | |
| 1.78 | 5.69 | 0.95 | 3.03 | 7.81 | 103.42 | 18.20 | 302.81 | 0.3698 | -1108.3 | -841.0 | |
| 0.00 | 0.93 | 0.00 | 0.50 | 8.65 | 103.46 | 18.24 | 304.65 | 0.3778 | -510.0 | -371.0 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 6.64 | 103.37 | 18.15 | 300.11 | 0.3593 | -798.0 | -689.2 | |
| 3.91 | 27.35 | 2.08 | 14.56 | 8.26 | 103.38 | 18.16 | 303.90 | 0.3732 | -1032.1 | -802.6 | |
| 0.00 | 2.21 | 0.00 | 1.17 | 7.77 | 102.73 | 17.51 | 303.72 | 0.3600 | -1080.0 | -913.2 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 7.01 | 102.69 | 17.48 | 301.98 | 0.3530 | -777.0 | -588.3 | |
| 0.00 | 0.93 | 0.00 | 0.49 | 7.52 | 102.50 | 17.28 | 303.49 | 0.3547 | -958.0 | -815.6 | |
| 0.00 | 2.12 | 0.00 | 1.13 | 7.76 | 102.48 | 17.26 | 304.09 | 0.3566 | -1025.0 | -898.0 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 8.72 | 102.40 | 17.18 | 306.43 | 0.3645 | -683.0 | -570.1 | |
| 0.00 | 2.46 | 0.00 | 1.30 | 7.91 | 102.20 | 16.99 | 304.86 | 0.3542 | -827.0 | -637.7 | |
| 0.00 | 0.76 | 0.00 | 0.40 | 7.84 | 101.98 | 16.77 | 305.06 | 0.3507 | -675.0 | -533.9 | |
| 0.00 | 0.76 | 0.00 | 0.40 | 7.54 | 101.75 | 16.54 | 304.71 | 0.3448 | -944.0 | -753.3 | |
| 1.19 | 8.07 | 0.63 | 4.25 | 7.77 | 101.39 | 16.17 | 305.87 | 0.3421 | -992.6 | -812.1 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 6.60 | 101.22 | 16.01 | 303.24 | 0.3289 | -990.0 | -735.4 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 9.41 | 100.50 | 15.29 | 311.22 | 0.3473 | 648.0 | 491.8 | |
| 0.00 | 1.78 | 0.00 | 0.94 | 8.17 | 100.23 | 15.02 | 308.88 | 0.3309 | 575.0 | 461.0 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 8.44 | 100.21 | 15.00 | 309.55 | 0.3334 | 623.0 | 539.4 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 8.20 | 99.99 | 14.77 | 309.40 | 0.3280 | 753.0 | 614.6 | |
| 3.91 | 6.88 | 2.04 | 3.59 | 7.35 | 99.77 | 14.55 | 307.74 | 0.3166 | 1062.6 | 800.9 | |
| 0.00 | 0.93 | 0.00 | 0.49 | 8.01 | 99.79 | 14.58 | 309.33 | 0.3237 | 672.0 | 508.8 | |
| 2.29 | 608.17 | 1.21 | 318.62 | 10.04 | 99.85 | 14.63 | 313.81 | 0.3463 | 890.9 | 423.8 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 12.51 | 99.77 | 14.55 | 318.82 | 0.3741 | 831.0 | 659.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 8.19 | 99.53 | 14.31 | 310.28 | 0.3221 | 908.0 | 707.4 | |
| 2.63 | -37.00 | 1.39 | -37.00 | 9.97 | 99.42 | 14.20 | 314.53 | 0.3404 | 772.2 | 999999 | |
| 0.42 | 2.72 | 0.22 | 1.44 | 10.98 | 99.37 | 14.15 | 316.68 | 0.3515 | -686.2 | -409.9 | |
| 34.40 | -37.00 | 18.05 | -37.00 | 9.81 | 98.88 | 13.67 | 315.27 | 0.3323 | 1137.5 | 999999 | |
| 46.80 | -37.00 | 24.47 | -37.00 | 9.38 | 98.41 | 13.19 | 315.35 | 0.3218 | 1430.4 | 999999 | |
| 4.08 | -37.00 | 2.13 | -37.00 | 9.83 | 98.24 | 13.02 | 316.70 | 0.3252 | 1007.7 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.31 | 11.11 | 98.02 | 12.80 | 319.79 | 0.3383 | -676.0 | -514.0 | |
| 1.10 | -37.00 | 0.58 | -37.00 | 9.80 | 97.93 | 12.71 | 317.31 | 0.3213 | 1132.2 | 999999 | |
| 4.50 | -37.00 | 2.34 | -37.00 | 9.25 | 97.60 | 12.39 | 316.85 | 0.3110 | 1306.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.32 | 97.54 | 12.32 | 312.34 | 0.2877 | 859.0 | 765.7 | |
| 0.00 | 0.59 | 0.00 | 0.31 | 9.17 | 96.50 | 11.29 | 319.32 | 0.2978 | 707.0 | 572.7 | |
| 0.00 | 1.61 | 0.00 | 0.84 | 9.29 | 95.84 | 10.62 | 321.28 | 0.2921 | 1030.0 | 802.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
