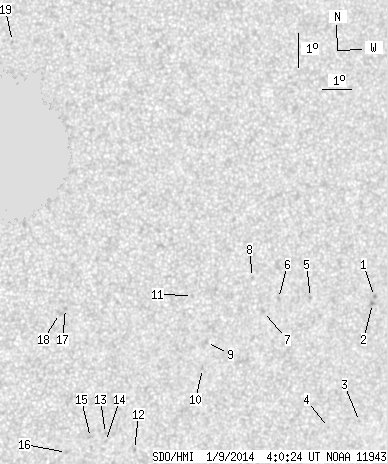

SDO HMI 2014-01-09 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.64 | 0.00 | 14.92 | -13.73 | 111.95 | 30.02 | 249.60 | 0.5208 | -403.5 | -315.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.84 | -12.28 | 117.93 | 36.00 | 254.62 | 0.5980 | 887.0 | 798.8 | |
| 0.00 | 2.38 | 0.00 | 1.47 | -12.50 | 117.89 | 35.96 | 254.26 | 0.5979 | 731.0 | 624.8 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -16.04 | 118.05 | 36.12 | 248.58 | 0.6109 | 690.0 | 593.9 | |
| 0.00 | 0.59 | 0.00 | 0.37 | -16.26 | 116.92 | 35.00 | 247.74 | 0.5972 | 592.0 | 492.1 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -12.40 | 115.59 | 33.66 | 253.69 | 0.5663 | -669.0 | -537.6 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -12.47 | 114.44 | 32.52 | 253.16 | 0.5506 | -778.0 | -655.4 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -12.88 | 113.96 | 32.04 | 252.24 | 0.5452 | -794.0 | -543.4 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -11.88 | 113.44 | 31.51 | 253.85 | 0.5346 | -659.0 | -559.5 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -13.87 | 112.08 | 30.16 | 249.59 | 0.5225 | -784.0 | -652.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -14.65 | 112.06 | 30.13 | 248.14 | 0.5254 | -731.0 | -561.5 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -12.48 | 111.41 | 29.48 | 251.88 | 0.5077 | -529.0 | -447.4 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -17.16 | 110.06 | 28.14 | 242.31 | 0.5110 | -525.0 | -487.6 | |
| 0.00 | 1.10 | 0.00 | 0.63 | -16.71 | 108.98 | 27.06 | 242.35 | 0.4939 | -812.0 | -678.2 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -16.95 | 109.02 | 27.09 | 241.93 | 0.4958 | -667.0 | -567.1 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -16.84 | 108.49 | 26.56 | 241.71 | 0.4880 | -794.0 | -681.2 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -17.32 | 107.73 | 25.81 | 240.20 | 0.4809 | -741.0 | -625.2 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -13.00 | 107.14 | 25.22 | 248.46 | 0.4482 | -901.0 | -699.9 | |
| 0.00 | 3.14 | 0.00 | 1.74 | -13.15 | 106.96 | 25.03 | 248.00 | 0.4463 | -661.0 | -546.4 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -5.14 | 104.85 | 22.93 | 266.10 | 0.3906 | -522.0 | -384.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
