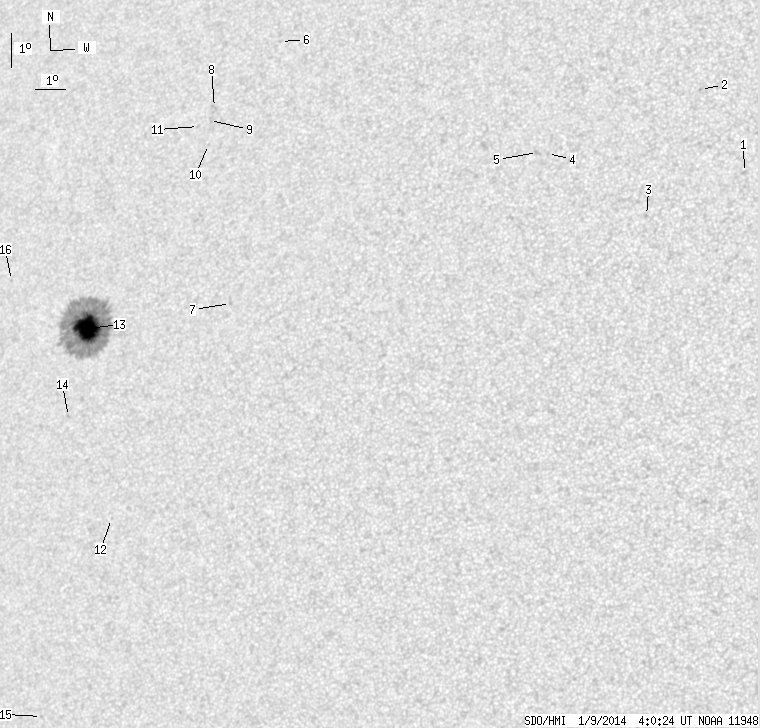

SDO HMI 2014-01-09 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.16 | 251.36 | 24.25 | 159.00 | 5.81 | 44.91 | -37.02 | 75.19 | 0.6215 | -976.7 | -359.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 04:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.26 | 9.57 | 66.08 | -15.84 | 49.36 | 0.3563 | -831.0 | -548.2 | |
| 0.00 | 0.76 | 0.00 | 0.41 | 12.13 | 64.56 | -17.37 | 46.82 | 0.4019 | -754.0 | -625.2 | |
| 0.00 | 1.10 | 0.00 | 0.59 | 8.34 | 63.08 | -18.85 | 56.82 | 0.3836 | -806.0 | -626.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 10.30 | 59.80 | -22.13 | 56.96 | 0.4440 | -974.0 | -698.3 | |
| 0.00 | 2.63 | 0.00 | 1.46 | 10.34 | 59.47 | -22.45 | 57.27 | 0.4486 | -620.0 | -652.4 | |
| 0.00 | 1.10 | 0.00 | 0.68 | 14.05 | 50.34 | -31.59 | 59.53 | 0.5918 | -542.0 | -441.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 6.13 | 49.44 | -32.48 | 72.92 | 0.5608 | -607.0 | -488.1 | |
| 0.00 | 2.38 | 0.00 | 1.48 | 12.10 | 48.25 | -33.68 | 63.95 | 0.6057 | -851.0 | -565.5 | |
| 0.00 | 0.59 | 0.00 | 0.37 | 11.71 | 48.13 | -33.80 | 64.63 | 0.6052 | -718.0 | -710.9 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 10.97 | 48.19 | -33.74 | 65.72 | 0.6004 | -617.0 | -566.5 | |
| 0.00 | 1.44 | 0.00 | 0.90 | 11.54 | 47.75 | -34.18 | 65.12 | 0.6090 | -568.0 | -440.1 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -0.10 | 45.38 | -36.54 | 84.87 | 0.6001 | 659.0 | 521.1 | |
| 38.16 | 231.94 | 24.25 | 147.53 | 5.59 | 44.29 | -37.64 | 76.02 | 0.6286 | -1308.2 | -357.3 | |
| 0.00 | 1.44 | 0.00 | 0.92 | 3.00 | 43.73 | -38.20 | 80.26 | 0.6289 | 756.0 | 594.9 | |
| 0.00 | 0.59 | 0.00 | 0.38 | -5.82 | 42.51 | -39.42 | 94.38 | 0.6359 | 469.0 | 393.1 | |
| 0.00 | 0.76 | 0.00 | 0.51 | 7.17 | 41.23 | -40.70 | 74.77 | 0.6729 | -609.0 | -491.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
