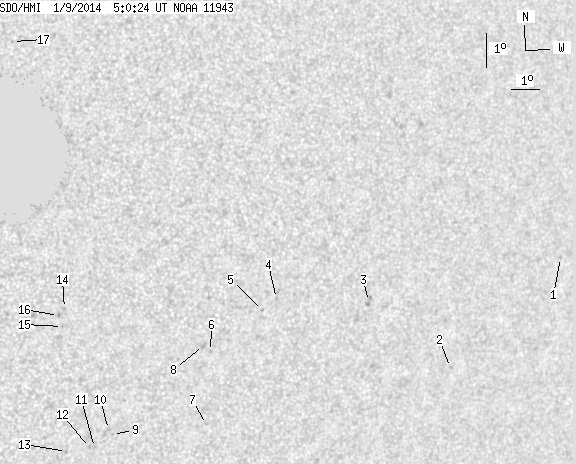

SDO HMI 2014-01-09 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.73 | 0.00 | 12.89 | -13.61 | 113.13 | 31.75 | 250.41 | 0.5437 | -490.6 | -244.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 05:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.82 | -10.79 | 125.17 | 43.79 | 258.52 | 0.6960 | 585.0 | 447.0 | |
| 0.00 | 1.19 | 0.00 | 0.78 | -14.26 | 121.38 | 40.00 | 252.65 | 0.6550 | 589.0 | 448.9 | |
| 0.00 | 3.82 | 0.00 | 2.37 | -12.42 | 117.86 | 36.48 | 254.55 | 0.6047 | 569.0 | 645.3 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -12.46 | 114.48 | 33.10 | 253.40 | 0.5586 | -813.0 | -655.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -12.83 | 114.03 | 32.65 | 252.58 | 0.5535 | -798.0 | -579.8 | |
| 0.00 | 0.93 | 0.00 | 0.55 | -14.12 | 112.36 | 30.98 | 249.55 | 0.5349 | -554.0 | -520.2 | |
| 0.00 | 0.59 | 0.00 | 0.35 | -16.31 | 112.57 | 31.19 | 245.77 | 0.5473 | -612.0 | -479.3 | |
| 0.00 | 2.63 | 0.00 | 1.54 | -13.95 | 112.09 | 30.70 | 249.73 | 0.5304 | -823.0 | -604.3 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -16.72 | 109.31 | 27.93 | 242.98 | 0.5057 | -753.0 | -656.0 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -16.57 | 109.15 | 27.77 | 243.14 | 0.5026 | -765.0 | -650.0 | |
| 0.00 | 0.93 | 0.00 | 0.53 | -17.13 | 108.75 | 27.37 | 241.81 | 0.5005 | -725.0 | -597.9 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -17.13 | 108.58 | 27.20 | 241.67 | 0.4982 | -690.0 | -593.8 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -17.28 | 107.81 | 26.42 | 240.80 | 0.4888 | -710.0 | -619.2 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -12.99 | 107.17 | 25.79 | 248.87 | 0.4564 | -835.0 | -709.1 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -13.53 | 107.17 | 25.78 | 247.74 | 0.4589 | -673.0 | -541.5 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -13.20 | 106.99 | 25.61 | 248.30 | 0.4549 | -730.0 | -670.8 | |
| 0.00 | 0.85 | 0.00 | 0.46 | -5.13 | 104.89 | 23.51 | 266.19 | 0.3999 | -603.0 | -467.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
