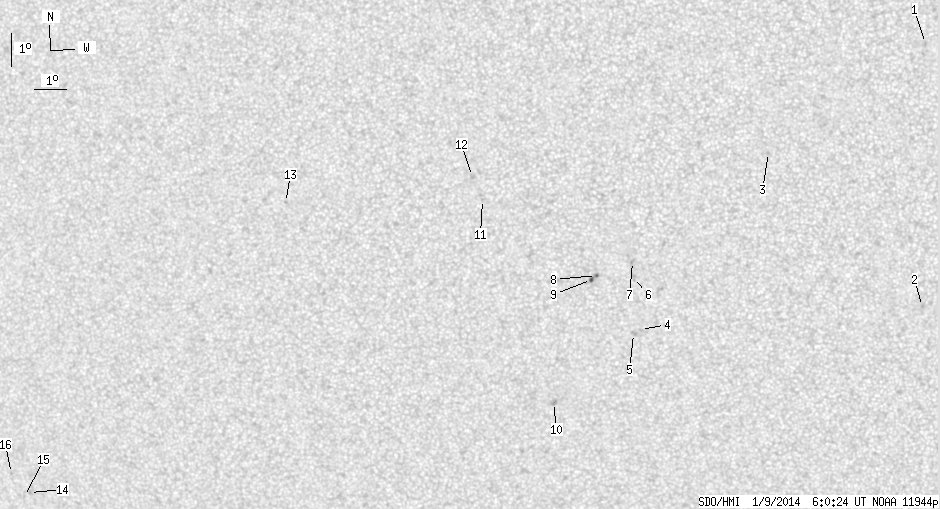

SDO HMI 2014-01-09 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.37 | 27.24 | 0.70 | 14.25 | -18.61 | 71.38 | -9.46 | 153.15 | 0.3093 | -251.3 | 22.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.85 | -11.20 | 83.18 | 2.34 | 197.58 | 0.1332 | -936.0 | -668.0 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -19.11 | 83.16 | 2.32 | 188.33 | 0.2657 | 799.0 | 683.2 | |
| 0.00 | 1.28 | 0.00 | 0.64 | -14.45 | 78.42 | -2.41 | 167.39 | 0.1877 | -852.0 | -704.9 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -19.79 | 74.32 | -6.51 | 158.67 | 0.2948 | 785.0 | 608.9 | |
| 0.00 | 2.55 | 0.00 | 1.32 | -19.91 | 74.10 | -6.74 | 158.16 | 0.2980 | 713.0 | 647.4 | |
| 0.00 | 2.89 | 0.00 | 1.49 | -18.20 | 74.17 | -6.67 | 155.90 | 0.2714 | 851.0 | 681.1 | |
| 0.00 | 1.87 | 0.00 | 0.96 | -17.71 | 74.16 | -6.68 | 155.06 | 0.2640 | 901.0 | 786.8 | |
| 0.43 | 1.36 | 0.22 | 0.70 | -18.12 | 73.01 | -7.82 | 152.22 | 0.2788 | -1021.4 | -837.5 | |
| 0.94 | 2.30 | 0.48 | 1.18 | -18.24 | 72.85 | -7.98 | 151.95 | 0.2818 | -942.6 | -779.8 | |
| 0.00 | 4.00 | 0.00 | 2.11 | -22.01 | 71.43 | -9.41 | 154.01 | 0.3474 | 657.0 | 568.2 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -15.78 | 69.57 | -11.26 | 137.67 | 0.2804 | -786.0 | -626.4 | |
| 0.00 | 2.47 | 0.00 | 1.27 | -15.09 | 69.30 | -11.53 | 135.21 | 0.2753 | -807.0 | -581.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -15.76 | 63.34 | -17.50 | 125.69 | 0.3578 | -751.0 | -633.2 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -24.43 | 53.27 | -27.57 | 130.27 | 0.5545 | -791.0 | -681.3 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -24.55 | 53.05 | -27.78 | 130.26 | 0.5578 | -671.0 | -527.5 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -23.81 | 52.75 | -28.08 | 128.88 | 0.5554 | -668.0 | -597.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
