SDO HMI 2014-01-09 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 148.90 | 800.43 | 80.42 | 432.92 | 9.09 | 100.44 | 19.60 | 304.19 | 0.4014 | 293.4 | 127.8 | |
|
previous
or next observation for the same group /

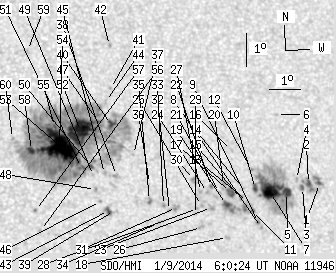

back to the solar disc SDO HMI 2014-01-09 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.28 | 7.57 | 0.72 | 4.27 | 8.43 | 106.70 | 25.87 | 295.69 | 0.4809 | -828.3 | -630.2 | |
| 2.21 | 14.03 | 1.24 | 7.88 | 8.42 | 106.34 | 25.50 | 295.99 | 0.4758 | -843.0 | -590.4 | |
| 1.11 | -2.00 | 0.62 | -2.00 | 8.30 | 106.13 | 25.30 | 295.93 | 0.4721 | -899.4 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.10 | 8.53 | 105.95 | 25.11 | 296.54 | 0.4711 | -611.0 | -552.0 | |
| 5.53 | 121.21 | 3.09 | 67.49 | 8.13 | 105.59 | 24.76 | 296.09 | 0.4635 | -874.3 | -475.4 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 10.49 | 105.45 | 24.61 | 300.70 | 0.4782 | -743.0 | -613.9 | |
| 15.22 | -5.00 | 8.46 | -5.00 | 8.11 | 105.07 | 24.23 | 296.54 | 0.4561 | -1224.9 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 7.05 | 104.71 | 23.87 | 294.73 | 0.4441 | -821.0 | -657.5 | |
| 0.43 | 2.72 | 0.23 | 1.50 | 7.20 | 104.62 | 23.78 | 295.11 | 0.4438 | -925.6 | -786.9 | |
| 2.47 | -5.00 | 1.37 | -5.00 | 8.22 | 104.59 | 23.75 | 297.22 | 0.4502 | -1005.4 | 999999 | |
| 0.85 | 22.87 | 0.47 | 12.58 | 7.56 | 104.45 | 23.61 | 296.01 | 0.4437 | -951.1 | -852.8 | |
| 0.00 | 1.87 | 0.00 | 1.04 | 8.79 | 104.49 | 23.66 | 298.45 | 0.4529 | -785.0 | -555.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 7.82 | 104.30 | 23.46 | 296.69 | 0.4434 | -809.0 | -642.6 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 8.21 | 104.20 | 23.36 | 297.59 | 0.4446 | -728.0 | -663.6 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 7.91 | 104.11 | 23.27 | 297.06 | 0.4414 | -929.0 | -809.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 9.35 | 103.88 | 23.05 | 300.18 | 0.4487 | 530.0 | 466.6 | |
| 4.00 | 7.06 | 2.20 | 3.88 | 8.08 | 103.77 | 22.93 | 297.76 | 0.4377 | -1065.3 | -794.5 | |
| 0.00 | 2.21 | 0.00 | 1.21 | 6.72 | 103.59 | 22.76 | 295.09 | 0.4260 | -780.0 | -663.7 | |
| 2.98 | -11.00 | 1.63 | -11.00 | 7.71 | 103.61 | 22.78 | 297.16 | 0.4330 | -1182.2 | 999999 | |
| 0.00 | 4.59 | 0.00 | 2.52 | 8.31 | 103.55 | 22.72 | 298.46 | 0.4365 | -334.0 | -291.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 8.07 | 103.41 | 22.57 | 298.11 | 0.4327 | -871.0 | -723.9 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 8.24 | 103.16 | 22.33 | 298.73 | 0.4306 | -912.0 | -734.0 | |
| 0.00 | 2.89 | 0.00 | 1.58 | 7.61 | 103.13 | 22.29 | 297.45 | 0.4254 | -972.0 | -832.6 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 8.06 | 103.02 | 22.19 | 298.50 | 0.4273 | -998.0 | -725.3 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 7.66 | 102.81 | 21.97 | 297.90 | 0.4214 | -917.0 | -789.1 | |
| 0.00 | 2.13 | 0.00 | 1.16 | 7.00 | 102.77 | 21.93 | 296.52 | 0.4161 | -810.0 | -784.2 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 8.08 | 102.80 | 21.96 | 298.80 | 0.4243 | -867.0 | -701.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 7.57 | 102.67 | 21.84 | 297.85 | 0.4188 | -937.0 | -723.4 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 7.39 | 102.60 | 21.76 | 297.53 | 0.4164 | -796.0 | -585.6 | |
| 0.00 | 4.00 | 0.00 | 2.18 | 8.44 | 102.63 | 21.79 | 299.73 | 0.4247 | -796.0 | -714.8 | |
| 0.00 | 3.23 | 0.00 | 1.75 | 7.58 | 102.00 | 21.17 | 298.62 | 0.4095 | -924.0 | -840.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 7.49 | 101.77 | 20.94 | 298.67 | 0.4056 | -890.0 | -758.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 7.63 | 101.59 | 20.75 | 299.21 | 0.4041 | -982.0 | -843.3 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 7.12 | 101.44 | 20.60 | 298.25 | 0.3981 | -719.0 | -592.2 | |
| 0.00 | 2.89 | 0.00 | 1.56 | 7.77 | 101.15 | 20.32 | 300.04 | 0.3991 | -951.0 | -875.6 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 8.29 | 101.18 | 20.34 | 301.12 | 0.4036 | 529.0 | 425.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 9.15 | 100.72 | 19.89 | 303.54 | 0.4046 | -709.0 | -527.8 | |
| 0.00 | 2.98 | 0.00 | 1.60 | 8.50 | 100.15 | 19.31 | 302.93 | 0.3913 | 605.0 | 360.5 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 7.45 | 100.03 | 19.19 | 300.73 | 0.3809 | 228.0 | 309.0 | |
| 3.74 | 555.41 | 2.02 | 297.52 | 10.05 | 100.08 | 19.24 | 306.26 | 0.4042 | 838.0 | 417.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 11.14 | 100.12 | 19.28 | 308.37 | 0.4151 | -591.0 | -458.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 12.46 | 100.19 | 19.35 | 310.74 | 0.4289 | 787.0 | 664.1 | |
| 1.87 | 4.51 | 1.00 | 2.41 | 7.44 | 99.84 | 19.00 | 300.97 | 0.3782 | 1109.9 | 798.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 10.74 | 99.93 | 19.10 | 307.86 | 0.4089 | 491.0 | 379.3 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 8.56 | 99.77 | 18.93 | 303.56 | 0.3867 | 54.0 | 231.6 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 7.71 | 99.60 | 18.77 | 301.90 | 0.3771 | 804.0 | 687.8 | |
| 0.77 | -40.00 | 0.41 | -40.00 | 10.13 | 99.67 | 18.84 | 307.01 | 0.3997 | 722.0 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 8.07 | 99.46 | 18.63 | 302.90 | 0.3783 | 773.0 | 621.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 8.49 | 99.42 | 18.58 | 303.90 | 0.3814 | 666.0 | 517.2 | |
| 1.11 | -40.00 | 0.59 | -40.00 | 8.76 | 99.37 | 18.54 | 304.56 | 0.3832 | 614.7 | 999999 | |
| 2.04 | -40.00 | 1.09 | -40.00 | 8.72 | 99.06 | 18.22 | 304.94 | 0.3787 | 697.7 | 999999 | |
| 39.53 | -40.00 | 21.24 | -40.00 | 9.84 | 99.09 | 18.25 | 307.29 | 0.3895 | 1024.3 | 999999 | |
| 2.21 | -40.00 | 1.18 | -40.00 | 8.90 | 98.94 | 18.10 | 305.51 | 0.3788 | 882.4 | 999999 | |
| 55.25 | -40.00 | 29.51 | -40.00 | 9.34 | 98.40 | 17.56 | 307.29 | 0.3759 | 1372.8 | 999999 | |
| 2.13 | -40.00 | 1.14 | -40.00 | 9.95 | 98.27 | 17.44 | 308.77 | 0.3802 | 826.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 6.80 | 97.69 | 16.85 | 302.52 | 0.3429 | 791.0 | 659.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 7.40 | 97.56 | 16.72 | 304.19 | 0.3465 | 828.0 | 729.2 | |
| 4.17 | -40.00 | 2.21 | -40.00 | 9.20 | 97.52 | 16.68 | 308.42 | 0.3632 | 1258.1 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 12.25 | 97.57 | 16.73 | 314.47 | 0.3959 | 778.0 | 638.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 9.56 | 96.94 | 16.10 | 310.17 | 0.3595 | 1004.0 | 801.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
