SDO HMI 2014-01-09 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.03 | 244.72 | 27.57 | 153.25 | 5.72 | 44.42 | -36.42 | 75.26 | 0.6130 | -1098.3 | -341.8 | |
|
previous
or next observation for the same group /

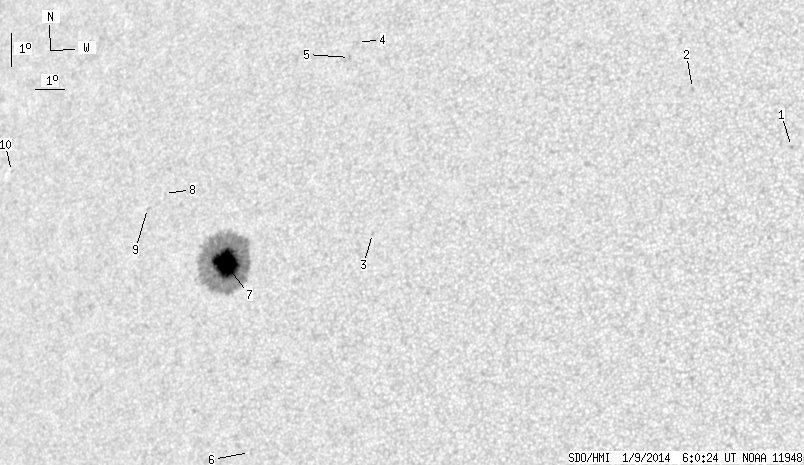

back to the solar disc SDO HMI 2014-01-09 06:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.63 | 8.48 | 63.11 | -17.73 | 54.85 | 0.3699 | -862.0 | -710.8 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 10.32 | 59.87 | -20.97 | 55.50 | 0.4291 | -950.0 | -773.4 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 6.28 | 49.50 | -31.34 | 72.04 | 0.5457 | -681.0 | -556.3 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 12.10 | 48.38 | -32.45 | 63.12 | 0.5905 | -685.0 | -545.3 | |
| 0.00 | 1.70 | 0.00 | 1.04 | 11.65 | 48.16 | -32.68 | 63.97 | 0.5908 | -837.0 | -613.8 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -0.06 | 45.35 | -35.49 | 84.59 | 0.5854 | 459.0 | 496.5 | |
| 44.03 | 235.20 | 27.57 | 147.42 | 5.59 | 44.28 | -36.56 | 75.59 | 0.6144 | -1309.3 | -339.7 | |
| 0.00 | 1.02 | 0.00 | 0.67 | 7.80 | 41.78 | -39.06 | 73.21 | 0.6544 | -577.0 | -478.5 | |
| 0.00 | 0.51 | 0.00 | 0.34 | 7.38 | 41.17 | -39.67 | 74.07 | 0.6607 | -488.0 | -450.7 | |
| 0.00 | 1.19 | 0.00 | 0.86 | 8.77 | 35.47 | -45.37 | 74.13 | 0.7335 | 553.0 | 455.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
