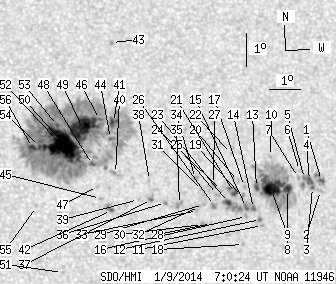

SDO HMI 2014-01-09 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.59 | 801.67 | 76.81 | 435.26 | 9.08 | 100.48 | 20.19 | 303.38 | 0.4092 | 265.9 | 128.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 07:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 22.19 | 0.92 | 12.55 | 8.45 | 106.76 | 26.47 | 295.22 | 0.4894 | -727.2 | -617.5 | |
| 0.00 | 2.98 | 0.00 | 1.68 | 8.15 | 106.71 | 26.41 | 294.70 | 0.4867 | -93.0 | -130.6 | |
| 0.68 | -1.00 | 0.38 | -1.00 | 8.23 | 106.45 | 26.15 | 295.07 | 0.4836 | -775.2 | 999999 | |
| 2.98 | -1.00 | 1.68 | -1.00 | 8.44 | 106.36 | 26.07 | 295.54 | 0.4838 | -813.9 | 999999 | |
| 0.51 | -1.00 | 0.29 | -1.00 | 8.50 | 106.20 | 25.91 | 295.78 | 0.4819 | -878.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 8.73 | 106.05 | 25.76 | 296.36 | 0.4814 | -526.0 | -356.9 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 8.52 | 106.00 | 25.71 | 296.00 | 0.4793 | -743.0 | -538.3 | |
| 5.36 | 123.60 | 3.00 | 69.13 | 8.15 | 105.61 | 25.32 | 295.63 | 0.4715 | -880.0 | -483.8 | |
| 14.79 | -8.00 | 8.26 | -8.00 | 8.13 | 105.08 | 24.79 | 296.07 | 0.4641 | -1230.7 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 9.13 | 105.12 | 24.83 | 297.96 | 0.4714 | -581.0 | -344.3 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 7.04 | 104.72 | 24.43 | 294.21 | 0.4519 | -836.0 | -694.2 | |
| 0.43 | 1.70 | 0.24 | 0.94 | 7.22 | 104.67 | 24.37 | 294.62 | 0.4523 | -911.6 | -767.3 | |
| 1.87 | -8.00 | 1.04 | -8.00 | 8.18 | 104.60 | 24.30 | 296.61 | 0.4576 | -1053.3 | 999999 | |
| 1.02 | 8.67 | 0.57 | 4.80 | 7.54 | 104.46 | 24.16 | 295.47 | 0.4514 | -952.3 | -791.3 | |
| 1.28 | -14.00 | 0.71 | -14.00 | 7.57 | 104.23 | 23.94 | 295.73 | 0.4484 | -968.8 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 7.30 | 104.21 | 23.92 | 295.19 | 0.4464 | -696.0 | -615.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 8.20 | 104.21 | 23.91 | 297.02 | 0.4523 | -730.0 | -635.2 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 6.45 | 104.07 | 23.78 | 293.57 | 0.4390 | -774.0 | -620.2 | |
| 0.00 | 2.13 | 0.00 | 1.18 | 7.89 | 104.12 | 23.83 | 296.50 | 0.4490 | -990.0 | -834.2 | |
| 0.00 | 1.96 | 0.00 | 1.08 | 8.34 | 104.02 | 23.73 | 297.49 | 0.4507 | -626.0 | -456.1 | |
| 2.64 | 8.50 | 1.46 | 4.70 | 8.01 | 103.87 | 23.57 | 296.97 | 0.4463 | -1099.1 | -787.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 9.19 | 103.85 | 23.56 | 299.32 | 0.4544 | 606.0 | 461.6 | |
| 2.21 | 14.54 | 1.22 | 8.02 | 7.70 | 103.65 | 23.36 | 296.56 | 0.4412 | -1198.6 | -914.8 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 8.06 | 103.45 | 23.16 | 297.49 | 0.4408 | -910.0 | -769.0 | |
| 0.00 | 2.13 | 0.00 | 1.17 | 7.93 | 103.31 | 23.02 | 297.37 | 0.4380 | -966.0 | -861.3 | |
| 0.00 | 3.74 | 0.00 | 2.05 | 7.60 | 103.19 | 22.90 | 296.80 | 0.4340 | -898.0 | -775.6 | |
| 0.43 | 1.87 | 0.23 | 1.03 | 8.23 | 103.20 | 22.91 | 298.10 | 0.4386 | -852.0 | -686.2 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 7.05 | 103.07 | 22.77 | 295.79 | 0.4285 | -706.0 | -605.7 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 7.62 | 102.84 | 22.55 | 297.21 | 0.4292 | -870.0 | -734.7 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 7.02 | 102.78 | 22.48 | 296.00 | 0.4241 | -928.0 | -784.2 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 8.04 | 102.83 | 22.54 | 298.09 | 0.4321 | -760.0 | -621.1 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 7.56 | 102.71 | 22.42 | 297.21 | 0.4269 | -834.0 | -735.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 7.43 | 102.64 | 22.34 | 297.03 | 0.4250 | -826.0 | -737.9 | |
| 0.00 | 2.72 | 0.00 | 1.49 | 8.40 | 102.63 | 22.34 | 299.04 | 0.4319 | -876.0 | -752.7 | |
| 0.00 | 3.74 | 0.00 | 2.04 | 7.60 | 102.07 | 21.78 | 297.98 | 0.4182 | -947.0 | -867.7 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 7.65 | 101.62 | 21.33 | 298.58 | 0.4123 | -920.0 | -825.4 | |
| 0.43 | 3.23 | 0.23 | 1.75 | 7.73 | 101.18 | 20.89 | 299.26 | 0.4067 | -1084.0 | -868.9 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 8.30 | 101.15 | 20.86 | 300.53 | 0.4108 | 556.0 | 442.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 7.72 | 100.77 | 20.47 | 299.73 | 0.4009 | -309.0 | -318.9 | |
| 0.00 | 3.23 | 0.00 | 1.74 | 8.49 | 100.08 | 19.79 | 302.27 | 0.3977 | 600.0 | 357.4 | |
| 4.68 | 563.93 | 2.54 | 303.10 | 10.03 | 100.11 | 19.81 | 305.45 | 0.4115 | 827.2 | 415.4 | |
| 0.68 | 4.85 | 0.36 | 2.60 | 7.37 | 99.89 | 19.60 | 300.03 | 0.3860 | 1027.1 | 924.1 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 12.48 | 100.22 | 19.93 | 309.95 | 0.4360 | 840.0 | 663.6 | |
| 0.51 | -41.00 | 0.28 | -41.00 | 9.54 | 99.98 | 19.69 | 304.62 | 0.4055 | 706.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 7.72 | 99.56 | 19.27 | 301.26 | 0.3843 | 936.0 | 684.8 | |
| 0.94 | -41.00 | 0.51 | -41.00 | 10.11 | 99.67 | 19.38 | 306.22 | 0.4066 | 678.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 8.08 | 99.49 | 19.19 | 302.16 | 0.3862 | 838.0 | 697.1 | |
| 1.19 | -41.00 | 0.64 | -41.00 | 8.74 | 99.36 | 19.07 | 303.78 | 0.3902 | 650.6 | 999999 | |
| 34.00 | -41.00 | 18.33 | -41.00 | 9.86 | 99.11 | 18.82 | 306.49 | 0.3970 | 1038.1 | 999999 | |
| 1.79 | -41.00 | 0.96 | -41.00 | 8.88 | 98.93 | 18.64 | 304.69 | 0.3857 | 900.7 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 5.48 | 98.28 | 17.99 | 297.56 | 0.3483 | -817.0 | -703.9 | |
| 56.61 | -41.00 | 30.33 | -41.00 | 9.33 | 98.42 | 18.13 | 306.40 | 0.3831 | 1364.9 | 999999 | |
| 1.02 | -41.00 | 0.55 | -41.00 | 9.90 | 98.33 | 18.03 | 307.75 | 0.3874 | 711.2 | 999999 | |
| 1.11 | -41.00 | 0.59 | -41.00 | 9.25 | 97.72 | 17.43 | 307.31 | 0.3734 | 1225.7 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 7.44 | 97.55 | 17.25 | 303.47 | 0.3541 | 872.0 | 735.2 | |
| 2.81 | -41.00 | 1.49 | -41.00 | 9.22 | 97.50 | 17.21 | 307.58 | 0.3702 | 1223.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
