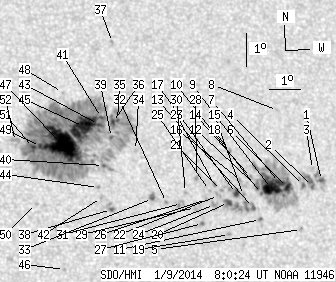

SDO HMI 2014-01-09 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.90 | 799.63 | 74.54 | 435.98 | 9.05 | 100.56 | 20.82 | 302.53 | 0.4173 | 318.0 | 128.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 08:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.19 | 27.88 | 0.68 | 15.85 | 8.44 | 106.78 | 27.03 | 294.74 | 0.4971 | -748.4 | -566.9 | |
| 0.77 | -1.00 | 0.43 | -1.00 | 8.25 | 106.47 | 26.72 | 294.64 | 0.4915 | -753.9 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.02 | 8.76 | 106.51 | 26.76 | 295.56 | 0.4953 | -441.0 | -348.2 | |
| 1.02 | -1.00 | 0.58 | -1.00 | 8.27 | 106.17 | 26.42 | 294.92 | 0.4875 | -860.3 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.05 | 6.94 | 106.01 | 26.26 | 292.50 | 0.4774 | 597.0 | 419.3 | |
| 3.57 | 125.30 | 2.01 | 70.42 | 8.19 | 105.63 | 25.88 | 295.22 | 0.4796 | -906.7 | -450.2 | |
| 4.17 | -6.00 | 2.34 | -6.00 | 8.33 | 105.38 | 25.63 | 295.72 | 0.4770 | -882.8 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 10.52 | 105.49 | 25.74 | 299.66 | 0.4934 | -676.0 | -544.4 | |
| 15.30 | -6.00 | 8.59 | -6.00 | 8.14 | 105.10 | 25.35 | 295.60 | 0.4719 | -1201.7 | 999999 | |
| 0.51 | -6.00 | 0.29 | -6.00 | 7.98 | 104.76 | 25.01 | 295.59 | 0.4662 | -1031.0 | 999999 | |
| 0.43 | 1.62 | 0.24 | 0.90 | 7.20 | 104.67 | 24.93 | 294.11 | 0.4600 | -928.6 | -778.0 | |
| 1.11 | -6.00 | 0.62 | -6.00 | 8.16 | 104.64 | 24.89 | 296.04 | 0.4656 | -1061.6 | 999999 | |
| 0.94 | 24.40 | 0.52 | 13.54 | 7.55 | 104.47 | 24.72 | 295.00 | 0.4593 | -903.5 | -864.7 | |
| 0.00 | 1.96 | 0.00 | 1.09 | 8.46 | 104.46 | 24.71 | 296.78 | 0.4652 | -797.0 | -664.1 | |
| 0.00 | 2.30 | 0.00 | 1.28 | 7.91 | 104.16 | 24.41 | 295.97 | 0.4573 | -956.0 | -777.6 | |
| 0.00 | 2.13 | 0.00 | 1.18 | 8.36 | 104.09 | 24.35 | 296.93 | 0.4594 | -743.0 | -519.9 | |
| 2.98 | 9.01 | 1.65 | 5.00 | 7.96 | 103.94 | 24.19 | 296.29 | 0.4545 | -1043.5 | -721.5 | |
| 0.00 | 1.96 | 0.00 | 1.09 | 9.23 | 103.80 | 24.05 | 298.91 | 0.4614 | 215.0 | 331.6 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 6.72 | 103.64 | 23.89 | 294.04 | 0.4422 | -817.0 | -697.2 | |
| 2.64 | -13.00 | 1.46 | -13.00 | 7.68 | 103.66 | 23.91 | 295.99 | 0.4488 | -1168.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 8.04 | 103.45 | 23.71 | 296.91 | 0.4483 | -840.0 | -737.8 | |
| 0.00 | 2.72 | 0.00 | 1.50 | 7.88 | 103.35 | 23.60 | 296.70 | 0.4458 | -872.0 | -867.9 | |
| 0.34 | 1.96 | 0.19 | 1.08 | 8.21 | 103.24 | 23.49 | 297.47 | 0.4465 | -822.2 | -643.2 | |
| 0.00 | 4.08 | 0.00 | 2.25 | 7.61 | 103.20 | 23.45 | 296.29 | 0.4418 | -1001.0 | -795.0 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 8.03 | 103.06 | 23.31 | 297.27 | 0.4428 | -818.0 | -692.0 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 7.75 | 102.95 | 23.20 | 296.83 | 0.4393 | -901.0 | -740.0 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 7.03 | 102.78 | 23.03 | 295.48 | 0.4320 | -939.0 | -810.0 | |
| 0.00 | 2.04 | 0.00 | 1.12 | 8.41 | 102.66 | 22.92 | 298.45 | 0.4400 | -790.0 | -743.0 | |
| 0.00 | 3.06 | 0.00 | 1.68 | 7.50 | 102.58 | 22.83 | 296.68 | 0.4324 | -750.0 | -652.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 7.95 | 102.28 | 22.53 | 297.91 | 0.4313 | -759.0 | -538.2 | |
| 0.00 | 4.08 | 0.00 | 2.23 | 7.61 | 102.13 | 22.38 | 297.36 | 0.4269 | -615.0 | -824.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 7.63 | 101.65 | 21.90 | 297.91 | 0.4202 | -957.0 | -807.6 | |
| 1.02 | 3.91 | 0.55 | 2.13 | 7.74 | 101.21 | 21.46 | 298.63 | 0.4148 | -992.6 | -766.4 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 9.18 | 100.75 | 21.00 | 302.18 | 0.4199 | -419.0 | -363.2 | |
| 0.85 | 546.17 | 0.46 | 294.55 | 10.07 | 100.23 | 20.49 | 304.64 | 0.4207 | 743.6 | 426.2 | |
| 1.53 | -35.00 | 0.83 | -35.00 | 10.01 | 100.07 | 20.32 | 304.73 | 0.4179 | 913.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 12.46 | 100.25 | 20.51 | 309.13 | 0.4428 | 731.0 | 601.6 | |
| 0.68 | 4.93 | 0.37 | 2.65 | 7.38 | 99.88 | 20.14 | 299.39 | 0.3936 | 1053.1 | 866.6 | |
| 0.68 | -35.00 | 0.37 | -35.00 | 9.55 | 100.01 | 20.26 | 303.89 | 0.4131 | 784.2 | 999999 | |
| 0.51 | -35.00 | 0.28 | -35.00 | 8.70 | 99.70 | 19.95 | 302.50 | 0.4017 | 589.5 | 999999 | |
| 0.94 | -35.00 | 0.51 | -35.00 | 10.15 | 99.73 | 19.98 | 305.47 | 0.4148 | 656.0 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.05 | 7.73 | 99.59 | 19.84 | 300.55 | 0.3922 | 885.0 | 568.2 | |
| 0.94 | -35.00 | 0.51 | -35.00 | 9.94 | 99.62 | 19.87 | 305.19 | 0.4114 | 857.0 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 8.03 | 99.51 | 19.76 | 301.31 | 0.3935 | 891.0 | 746.3 | |
| 31.28 | -35.00 | 16.93 | -35.00 | 9.87 | 99.14 | 19.39 | 305.70 | 0.4045 | 1033.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 5.54 | 98.33 | 18.58 | 296.98 | 0.3575 | -859.0 | -670.3 | |
| 60.27 | -35.00 | 32.40 | -35.00 | 9.30 | 98.44 | 18.69 | 305.52 | 0.3903 | 1349.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 10.89 | 98.54 | 18.79 | 308.60 | 0.4065 | 637.0 | 455.8 | |
| 1.53 | -35.00 | 0.82 | -35.00 | 9.23 | 97.74 | 17.99 | 306.39 | 0.3805 | 1252.7 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 7.51 | 97.53 | 17.78 | 302.84 | 0.3620 | 979.0 | 757.9 | |
| 1.70 | -35.00 | 0.91 | -35.00 | 9.19 | 97.52 | 17.77 | 306.66 | 0.3773 | 1307.1 | 999999 | |
| 0.00 | 5.44 | 0.00 | 2.90 | 9.37 | 96.97 | 17.22 | 307.90 | 0.3717 | 389.0 | 551.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
