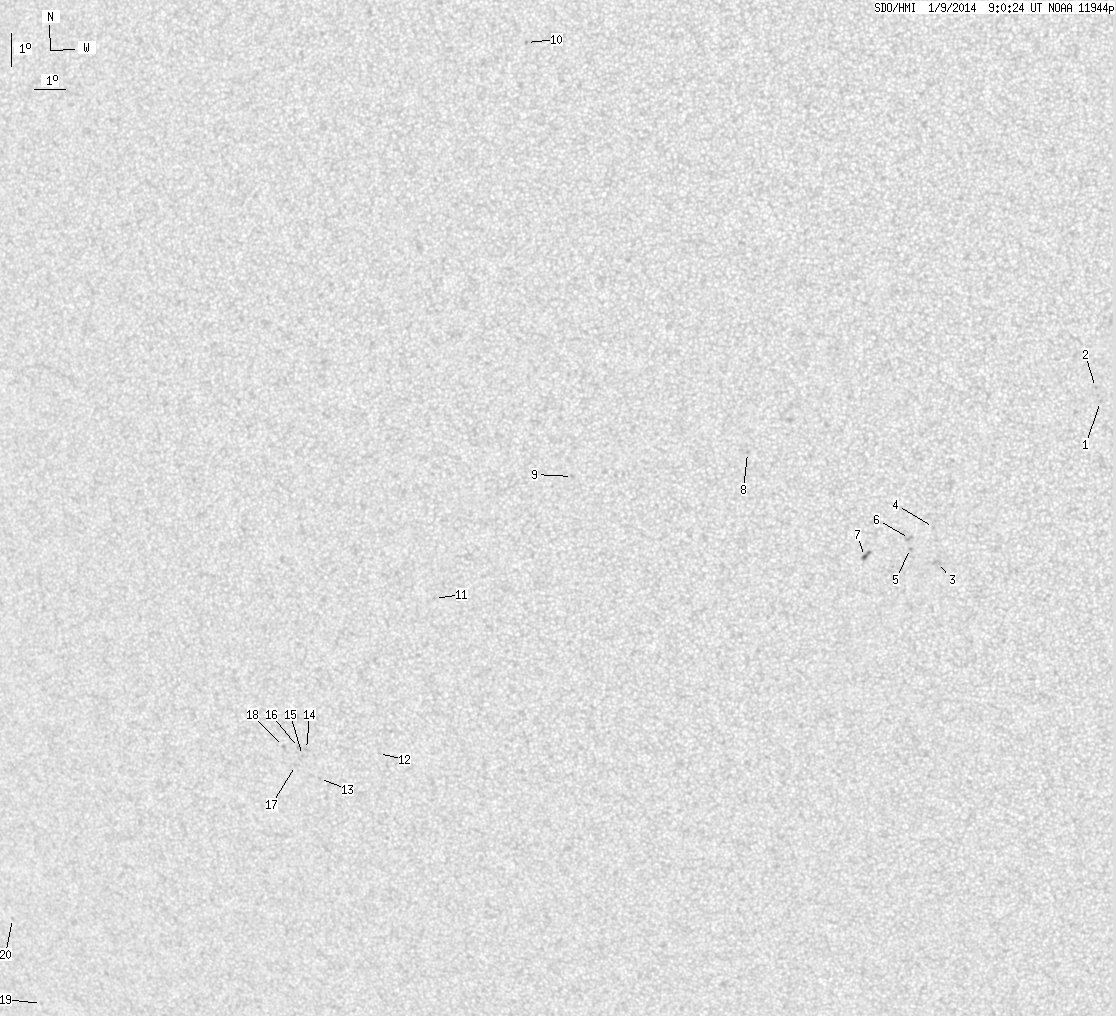

SDO HMI 2014-01-09 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.94 | 29.04 | 0.48 | 15.87 | -20.14 | 63.94 | -15.26 | 145.81 | 0.3846 | -480.2 | -272.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 09:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.56 | -13.71 | 80.13 | 0.93 | 185.33 | 0.1710 | -891.0 | -717.9 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -13.30 | 79.98 | 0.78 | 184.66 | 0.1636 | -921.0 | -799.2 | |
| 0.00 | 3.91 | 0.00 | 2.01 | -18.56 | 75.08 | -4.12 | 164.88 | 0.2624 | 705.0 | 579.6 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -17.49 | 74.98 | -4.22 | 163.32 | 0.2456 | 773.0 | 585.8 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -18.12 | 74.25 | -4.95 | 161.49 | 0.2595 | 644.0 | 666.8 | |
| 0.00 | 2.55 | 0.00 | 1.31 | -17.82 | 74.23 | -4.97 | 161.01 | 0.2548 | 1008.0 | 775.1 | |
| 0.94 | 4.08 | 0.48 | 2.10 | -18.36 | 72.81 | -6.39 | 157.00 | 0.2718 | -1024.0 | -848.3 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -15.17 | 69.31 | -9.89 | 139.70 | 0.2575 | -938.0 | -702.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -15.81 | 63.78 | -15.42 | 129.07 | 0.3311 | -835.0 | -689.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -2.91 | 62.97 | -16.24 | 86.81 | 0.2810 | -867.0 | -733.4 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -19.41 | 58.92 | -20.29 | 129.59 | 0.4262 | -804.0 | -638.5 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -24.16 | 56.24 | -22.96 | 134.54 | 0.5015 | -796.0 | -672.0 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -24.88 | 53.99 | -25.21 | 133.22 | 0.5324 | -751.0 | -615.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -23.96 | 53.73 | -25.48 | 131.53 | 0.5272 | -933.0 | -766.4 | |
| 0.00 | 0.85 | 0.00 | 0.50 | -24.14 | 53.54 | -25.66 | 131.64 | 0.5308 | -725.0 | -621.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -23.89 | 53.45 | -25.75 | 131.15 | 0.5297 | -785.0 | -660.3 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -24.45 | 53.22 | -25.98 | 131.79 | 0.5370 | -745.0 | -575.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -23.84 | 52.93 | -26.28 | 130.57 | 0.5352 | -753.0 | -620.0 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -31.75 | 40.64 | -38.56 | 132.11 | 0.7168 | -287.0 | -361.1 | |
| 0.00 | 1.19 | 0.00 | 0.82 | -28.93 | 40.70 | -38.50 | 128.62 | 0.6997 | -418.0 | -333.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
