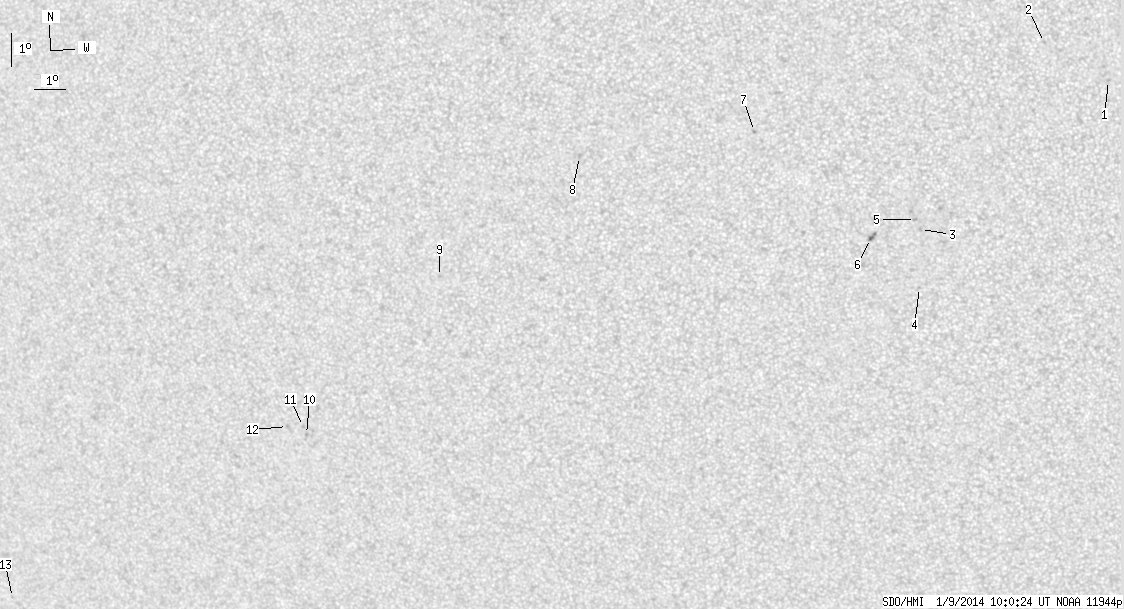

SDO HMI 2014-01-09 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.77 | 18.65 | 0.39 | 9.91 | -18.97 | 66.73 | -11.93 | 150.62 | 0.3374 | -454.7 | -374.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.60 | -13.69 | 80.17 | 1.51 | 188.61 | 0.1717 | -952.0 | -759.7 | |
| 0.00 | 1.11 | 0.00 | 0.55 | -12.55 | 78.23 | -0.43 | 177.20 | 0.1503 | -929.0 | -662.1 | |
| 0.00 | 1.70 | 0.00 | 0.87 | -18.16 | 74.36 | -4.30 | 163.83 | 0.2568 | 902.0 | 665.3 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -19.93 | 74.28 | -4.38 | 165.39 | 0.2859 | 767.0 | 543.0 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -17.86 | 74.21 | -4.45 | 162.94 | 0.2526 | 1009.0 | 796.6 | |
| 0.77 | 4.25 | 0.39 | 2.18 | -18.42 | 72.79 | -5.86 | 158.82 | 0.2695 | -1049.9 | -845.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -15.15 | 69.32 | -9.33 | 141.25 | 0.2512 | -915.0 | -754.4 | |
| 0.00 | 1.87 | 0.00 | 0.98 | -15.82 | 63.81 | -14.85 | 130.12 | 0.3239 | -778.0 | -600.6 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -19.36 | 58.91 | -19.75 | 130.21 | 0.4192 | -754.0 | -506.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -24.13 | 53.54 | -25.12 | 132.16 | 0.5247 | -817.0 | -718.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -23.88 | 53.49 | -25.17 | 131.71 | 0.5231 | -757.0 | -644.2 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -23.86 | 52.92 | -25.74 | 131.12 | 0.5293 | -809.0 | -598.4 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -28.92 | 40.64 | -38.02 | 128.88 | 0.6950 | -596.0 | -476.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
