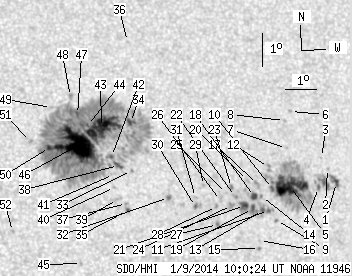

SDO HMI 2014-01-09 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 160.02 | 815.42 | 88.05 | 447.76 | 9.10 | 100.51 | 21.85 | 301.36 | 0.4315 | 211.5 | 145.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 10:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.04 | 6.97 | 1.18 | 4.01 | 8.41 | 106.83 | 28.18 | 293.80 | 0.5126 | -689.3 | -574.7 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 8.82 | 106.56 | 27.91 | 294.76 | 0.5114 | -342.0 | -295.5 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 9.15 | 106.39 | 27.73 | 295.48 | 0.5110 | -531.0 | -401.8 | |
| 0.60 | 16.32 | 0.34 | 9.36 | 8.24 | 106.21 | 27.56 | 293.96 | 0.5031 | -838.6 | -630.8 | |
| 36.47 | 122.40 | 20.69 | 69.48 | 8.24 | 105.28 | 26.62 | 294.71 | 0.4901 | -991.1 | -398.6 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 10.51 | 105.47 | 26.81 | 298.68 | 0.5076 | -699.0 | -554.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 9.38 | 105.23 | 26.58 | 296.86 | 0.4968 | -418.0 | -396.5 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 10.23 | 105.24 | 26.58 | 298.39 | 0.5027 | -690.0 | -540.9 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 7.20 | 104.74 | 26.08 | 293.15 | 0.4764 | -926.0 | -784.6 | |
| 1.19 | -5.00 | 0.67 | -5.00 | 8.16 | 104.67 | 26.01 | 295.06 | 0.4813 | -1028.3 | 999999 | |
| 0.60 | 10.88 | 0.33 | 6.11 | 7.49 | 104.49 | 25.84 | 293.92 | 0.4747 | -875.9 | -752.8 | |
| 0.00 | 3.06 | 0.00 | 1.73 | 8.79 | 104.59 | 25.93 | 296.33 | 0.4841 | -533.0 | -572.7 | |
| 1.11 | -11.00 | 0.62 | -11.00 | 7.49 | 104.29 | 25.64 | 294.08 | 0.4718 | -946.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 7.91 | 104.29 | 25.63 | 294.90 | 0.4744 | -928.0 | -858.8 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 6.34 | 104.13 | 25.47 | 291.94 | 0.4627 | -864.0 | -794.3 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 6.58 | 104.14 | 25.48 | 292.41 | 0.4643 | -706.0 | -554.7 | |
| 0.00 | 3.91 | 0.00 | 2.20 | 8.27 | 104.18 | 25.53 | 295.68 | 0.4752 | -690.0 | -627.6 | |
| 3.06 | 7.91 | 1.72 | 4.43 | 7.90 | 104.06 | 25.40 | 295.09 | 0.4711 | -1084.2 | -757.4 | |
| 1.96 | 16.32 | 1.09 | 9.12 | 7.54 | 103.97 | 25.31 | 294.45 | 0.4675 | -1081.3 | -812.6 | |
| 0.00 | 2.13 | 0.00 | 1.19 | 8.38 | 103.86 | 25.20 | 296.18 | 0.4714 | -644.0 | -416.0 | |
| 4.17 | -19.00 | 2.33 | -19.00 | 7.62 | 103.71 | 25.05 | 294.84 | 0.4644 | -1097.6 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.23 | 7.88 | 103.43 | 24.77 | 295.60 | 0.4622 | -1004.0 | -857.6 | |
| 0.00 | 1.79 | 0.00 | 1.00 | 8.15 | 103.32 | 24.66 | 296.23 | 0.4624 | -894.0 | -734.9 | |
| 0.00 | 3.23 | 0.00 | 1.80 | 7.61 | 103.28 | 24.63 | 295.19 | 0.4584 | -945.0 | -833.7 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 7.96 | 103.14 | 24.48 | 296.03 | 0.4587 | -698.0 | -605.8 | |
| 0.00 | 1.79 | 0.00 | 0.99 | 7.75 | 102.93 | 24.27 | 295.79 | 0.4543 | -867.0 | -720.2 | |
| 0.00 | 2.72 | 0.00 | 1.51 | 7.02 | 102.79 | 24.13 | 294.45 | 0.4477 | -966.0 | -805.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 7.56 | 102.79 | 24.13 | 295.55 | 0.4511 | -1026.0 | -826.0 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 8.18 | 102.40 | 23.75 | 297.17 | 0.4499 | -785.0 | -595.3 | |
| 0.43 | 4.25 | 0.23 | 2.34 | 7.54 | 102.11 | 23.45 | 296.16 | 0.4414 | -1084.0 | -861.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 7.82 | 102.12 | 23.46 | 296.70 | 0.4434 | -656.0 | -555.4 | |
| 0.00 | 2.64 | 0.00 | 1.45 | 7.79 | 101.25 | 22.59 | 297.54 | 0.4310 | -965.0 | -881.6 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 8.58 | 100.10 | 21.45 | 300.42 | 0.4211 | 551.0 | 463.5 | |
| 2.89 | 572.99 | 1.59 | 311.19 | 10.03 | 100.17 | 21.51 | 303.28 | 0.4338 | 816.7 | 403.1 | |
| 0.68 | 1.62 | 0.37 | 0.88 | 7.37 | 99.91 | 21.25 | 298.08 | 0.4092 | 865.8 | 747.7 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 12.51 | 100.27 | 21.61 | 307.78 | 0.4569 | 765.0 | 508.0 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 7.58 | 99.89 | 21.23 | 298.56 | 0.4104 | 897.0 | 768.6 | |
| 2.04 | -34.00 | 1.11 | -34.00 | 8.72 | 99.70 | 21.04 | 301.20 | 0.4167 | 693.9 | 999999 | |
| 0.00 | 3.66 | 0.00 | 1.98 | 7.69 | 99.61 | 20.95 | 299.12 | 0.4074 | 777.0 | 442.7 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 8.05 | 99.53 | 20.87 | 299.99 | 0.4091 | 845.0 | 653.4 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 8.44 | 99.52 | 20.86 | 300.83 | 0.4120 | 435.0 | 367.1 | |
| 0.77 | -34.00 | 0.42 | -34.00 | 8.99 | 99.49 | 20.83 | 302.01 | 0.4160 | 830.3 | 999999 | |
| 39.78 | -34.00 | 21.69 | -34.00 | 9.86 | 99.23 | 20.57 | 304.11 | 0.4199 | 971.8 | 999999 | |
| 0.68 | -34.00 | 0.37 | -34.00 | 9.91 | 98.78 | 20.12 | 304.79 | 0.4145 | 820.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 5.74 | 98.38 | 19.72 | 296.10 | 0.3755 | -787.0 | -568.4 | |
| 57.97 | -34.00 | 31.37 | -34.00 | 9.29 | 98.42 | 19.77 | 304.01 | 0.4044 | 1336.6 | 999999 | |
| 1.79 | -34.00 | 0.97 | -34.00 | 10.23 | 98.48 | 19.83 | 305.85 | 0.4136 | 404.7 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.53 | 10.78 | 98.30 | 19.64 | 307.18 | 0.4162 | -325.0 | -95.5 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 10.43 | 97.67 | 19.01 | 307.38 | 0.4050 | 660.0 | 496.4 | |
| 1.79 | -34.00 | 0.96 | -34.00 | 9.21 | 97.53 | 18.88 | 305.07 | 0.3919 | 1286.2 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 9.38 | 96.94 | 18.29 | 306.29 | 0.3857 | 665.0 | 593.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 6.66 | 96.25 | 17.59 | 301.08 | 0.3521 | 794.0 | 641.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
