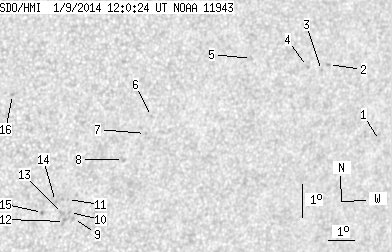

SDO HMI 2014-01-09 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.21 | 0.00 | 13.08 | -15.33 | 112.36 | 34.80 | 248.87 | 0.5915 | -347.0 | -343.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.71 | -14.43 | 121.40 | 43.84 | 253.37 | 0.7024 | 464.0 | 386.4 | |
| 0.00 | 1.10 | 0.00 | 0.73 | -12.26 | 118.83 | 41.26 | 255.96 | 0.6667 | 750.0 | 691.1 | |
| 0.00 | 0.93 | 0.00 | 0.62 | -12.45 | 118.58 | 41.02 | 255.63 | 0.6639 | 684.0 | 564.7 | |
| 0.00 | 1.19 | 0.00 | 0.78 | -12.36 | 118.00 | 40.44 | 255.65 | 0.6564 | 592.0 | 523.2 | |
| 0.00 | 1.19 | 0.00 | 0.76 | -12.21 | 115.79 | 38.22 | 255.36 | 0.6274 | -541.0 | -520.4 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -14.08 | 112.33 | 34.77 | 251.25 | 0.5864 | -852.0 | -735.3 | |
| 0.00 | 0.93 | 0.00 | 0.57 | -14.60 | 112.20 | 34.64 | 250.34 | 0.5863 | -554.0 | -522.1 | |
| 0.00 | 2.29 | 0.00 | 1.39 | -15.41 | 111.53 | 33.97 | 248.72 | 0.5804 | -638.0 | -541.4 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -17.25 | 110.05 | 32.48 | 244.91 | 0.5686 | -581.0 | -470.5 | |
| 0.00 | 0.93 | 0.00 | 0.56 | -17.07 | 109.87 | 32.30 | 245.10 | 0.5654 | -557.0 | -459.7 | |
| 0.00 | 0.59 | 0.00 | 0.36 | -16.68 | 109.72 | 32.16 | 245.68 | 0.5617 | -554.0 | -563.3 | |
| 0.00 | 2.72 | 0.00 | 1.63 | -17.35 | 109.74 | 32.17 | 244.57 | 0.5650 | -620.0 | -573.8 | |
| 0.00 | 2.21 | 0.00 | 1.32 | -17.11 | 109.62 | 32.05 | 244.90 | 0.5623 | -840.0 | -694.2 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -16.76 | 109.30 | 31.73 | 245.32 | 0.5564 | -692.0 | -635.9 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -17.11 | 108.89 | 31.33 | 244.50 | 0.5528 | -861.0 | -709.0 | |
| 0.00 | 1.10 | 0.00 | 0.64 | -13.60 | 107.26 | 29.70 | 249.89 | 0.5148 | -752.0 | -643.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
