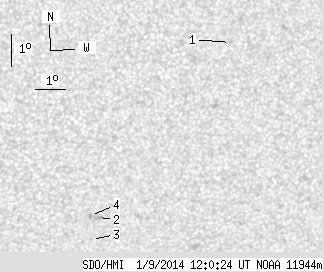

SDO HMI 2014-01-09 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.03 | 0.00 | 3.35 | -24.39 | 95.96 | 18.40 | 219.31 | 0.4581 | -706.0 | -647.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.76 | 0.00 | 0.42 | -19.49 | 99.26 | 21.70 | 232.00 | 0.4442 | -698.0 | -624.2 | |
| 0.00 | 3.40 | 0.00 | 1.89 | -25.01 | 95.56 | 18.00 | 217.70 | 0.4598 | -738.0 | -651.5 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -25.71 | 95.46 | 17.90 | 216.55 | 0.4670 | -543.0 | -461.4 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -24.95 | 95.31 | 17.75 | 217.42 | 0.4568 | -845.0 | -756.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
