SDO HMI 2014-01-09 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.93 | 0.00 | 10.29 | -19.61 | 63.67 | -13.89 | 149.57 | 0.3656 | -405.7 | -397.1 | |
|
previous
or next observation for the same group /

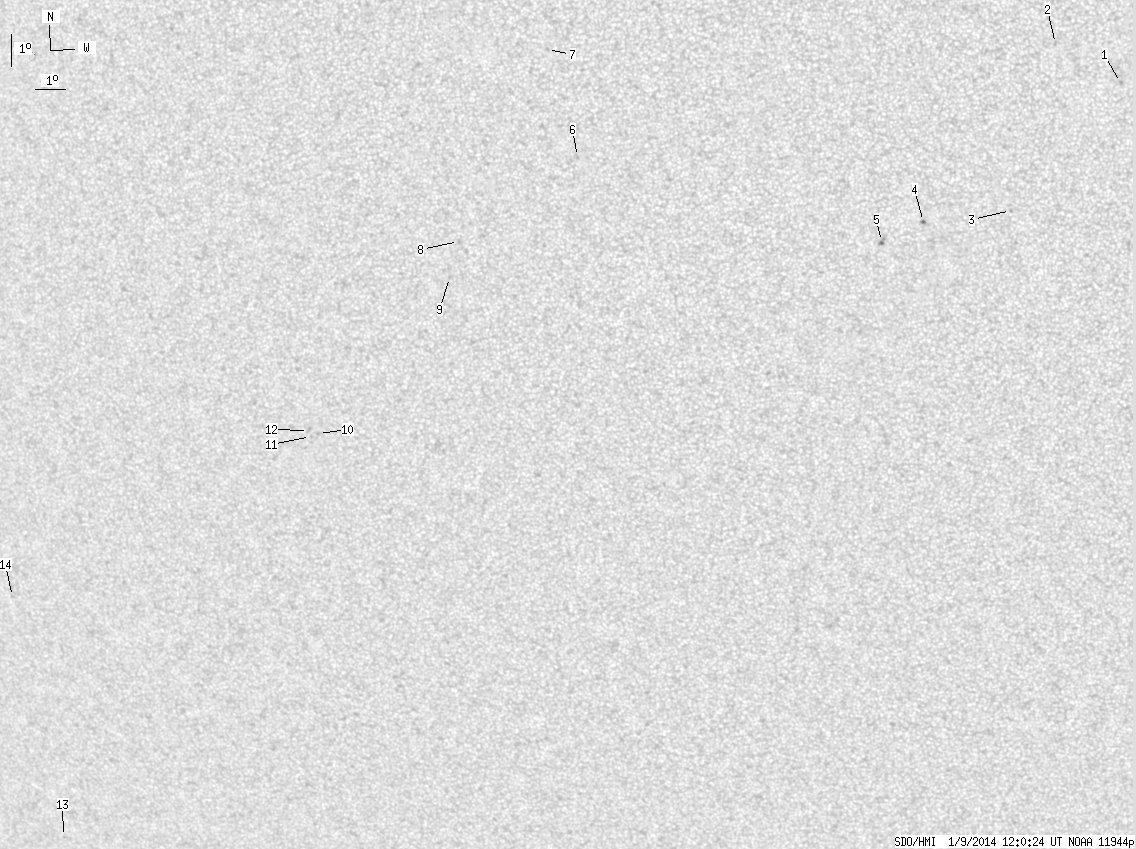

back to the solar disc SDO HMI 2014-01-09 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.77 | -13.65 | 80.22 | 2.66 | 194.99 | 0.1752 | -857.0 | -726.1 | |
| 0.00 | 1.44 | 0.00 | 0.72 | -12.49 | 78.25 | 0.69 | 184.50 | 0.1495 | -745.0 | -620.5 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -17.51 | 76.87 | -0.69 | 177.17 | 0.2356 | 638.0 | 558.4 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -17.83 | 74.17 | -3.39 | 166.78 | 0.2475 | 999.0 | 879.4 | |
| 0.00 | 2.80 | 0.00 | 1.44 | -18.43 | 72.85 | -4.71 | 162.69 | 0.2631 | -951.0 | -913.4 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -15.74 | 63.48 | -14.09 | 131.35 | 0.3135 | -726.0 | -560.6 | |
| 0.00 | 1.10 | 0.00 | 0.57 | -12.52 | 62.75 | -14.82 | 121.19 | 0.2931 | 727.0 | 565.1 | |
| 0.00 | 1.78 | 0.00 | 0.96 | -18.24 | 59.43 | -18.13 | 130.21 | 0.3887 | -735.0 | -612.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -19.33 | 59.01 | -18.55 | 131.79 | 0.4045 | -685.0 | -471.8 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -24.04 | 53.81 | -23.75 | 133.47 | 0.5089 | -810.0 | -658.6 | |
| 0.00 | 0.68 | 0.00 | 0.39 | -24.13 | 53.51 | -24.05 | 133.28 | 0.5130 | -786.0 | -668.5 | |
| 0.00 | 1.87 | 0.00 | 1.08 | -23.94 | 53.48 | -24.08 | 132.94 | 0.5116 | -737.0 | -639.2 | |
| 0.00 | 0.68 | 0.00 | 0.51 | -36.94 | 38.86 | -38.70 | 138.07 | 0.7503 | -401.0 | -424.4 | |
| 0.00 | 0.76 | 0.00 | 0.52 | -28.83 | 40.69 | -36.88 | 129.45 | 0.6832 | -611.0 | -508.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
