SDO HMI 2014-01-09 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.76 | 822.17 | 70.22 | 455.50 | 9.01 | 100.53 | 22.97 | 299.94 | 0.4458 | 249.7 | 134.8 | |
|
previous
or next observation for the same group /

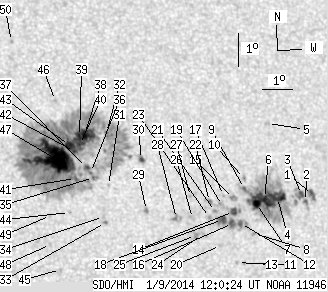

back to the solar disc SDO HMI 2014-01-09 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.97 | 160.71 | 1.73 | 92.34 | 8.44 | 106.86 | 29.30 | 293.06 | 0.5282 | -706.2 | -478.0 | |
| 0.68 | -1.00 | 0.39 | -1.00 | 8.22 | 106.60 | 29.04 | 292.85 | 0.5235 | -718.0 | 999999 | |
| 2.46 | -1.00 | 1.43 | -1.00 | 8.43 | 106.48 | 28.92 | 293.31 | 0.5230 | -805.5 | 999999 | |
| 10.54 | -1.00 | 6.06 | -1.00 | 8.31 | 105.66 | 28.10 | 293.70 | 0.5110 | -880.1 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.23 | 10.55 | 105.52 | 27.96 | 297.76 | 0.5230 | -631.0 | -536.2 | |
| 2.46 | -1.00 | 1.41 | -1.00 | 8.27 | 105.22 | 27.65 | 293.95 | 0.5047 | -1099.0 | 999999 | |
| 5.35 | -1.00 | 3.06 | -1.00 | 8.11 | 104.94 | 27.37 | 293.88 | 0.4998 | -1244.7 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.63 | 7.20 | 104.77 | 27.21 | 292.30 | 0.4923 | -862.0 | -783.5 | |
| 0.93 | -1.00 | 0.53 | -1.00 | 8.55 | 104.57 | 27.01 | 294.98 | 0.4974 | -811.6 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.21 | 8.85 | 104.59 | 27.03 | 295.52 | 0.4996 | -728.0 | -584.4 | |
| 0.00 | 0.93 | 0.00 | 0.53 | 6.29 | 104.41 | 26.85 | 290.81 | 0.4823 | -777.0 | -657.0 | |
| 1.53 | 5.95 | 0.87 | 3.37 | 7.49 | 104.36 | 26.79 | 293.16 | 0.4881 | -912.4 | -748.7 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 6.32 | 104.18 | 26.62 | 291.02 | 0.4791 | -870.0 | -695.6 | |
| 3.06 | 6.54 | 1.73 | 3.71 | 7.84 | 104.15 | 26.58 | 294.00 | 0.4873 | -1093.1 | -809.6 | |
| 0.00 | 3.82 | 0.00 | 2.17 | 8.24 | 104.18 | 26.61 | 294.72 | 0.4901 | -734.0 | -659.8 | |
| 2.80 | 5.61 | 1.59 | 3.17 | 7.48 | 104.09 | 26.53 | 293.35 | 0.4843 | -1020.3 | -885.7 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 8.32 | 103.85 | 26.29 | 295.14 | 0.4860 | -553.0 | -473.5 | |
| 4.08 | 7.39 | 2.30 | 4.17 | 7.59 | 103.76 | 26.20 | 293.82 | 0.4804 | -1078.9 | -824.9 | |
| 0.00 | 5.35 | 0.00 | 3.03 | 8.01 | 103.79 | 26.23 | 294.61 | 0.4834 | -755.0 | -639.3 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 6.81 | 103.65 | 26.09 | 292.39 | 0.4742 | -809.0 | -547.8 | |
| 0.00 | 1.87 | 0.00 | 1.05 | 7.83 | 103.55 | 25.99 | 294.45 | 0.4788 | -1068.0 | -912.8 | |
| 0.00 | 3.40 | 0.00 | 1.91 | 8.12 | 103.37 | 25.81 | 295.17 | 0.4782 | -717.0 | -634.7 | |
| 0.00 | 1.70 | 0.00 | 0.96 | 7.64 | 103.34 | 25.77 | 294.27 | 0.4747 | -1037.0 | -866.5 | |
| 0.00 | 0.42 | 0.00 | 0.24 | 7.12 | 103.07 | 25.51 | 293.47 | 0.4678 | -691.0 | -549.2 | |
| 0.00 | 4.50 | 0.00 | 2.52 | 7.08 | 102.84 | 25.28 | 293.59 | 0.4643 | -937.0 | -741.3 | |
| 0.00 | 2.97 | 0.00 | 1.66 | 7.59 | 102.77 | 25.21 | 294.65 | 0.4665 | -761.0 | -745.5 | |
| 0.00 | 0.93 | 0.00 | 0.52 | 8.26 | 102.75 | 25.19 | 295.96 | 0.4704 | -808.0 | -625.9 | |
| 0.00 | 5.10 | 0.00 | 2.84 | 7.58 | 102.25 | 24.68 | 295.09 | 0.4590 | -1076.0 | -844.8 | |
| 0.00 | 2.46 | 0.00 | 1.36 | 7.79 | 101.28 | 23.72 | 296.41 | 0.4469 | -997.0 | -827.0 | |
| 1.70 | 4.08 | 0.95 | 2.27 | 9.33 | 101.22 | 23.66 | 299.51 | 0.4570 | -964.5 | -504.8 | |
| 0.00 | 0.93 | 0.00 | 0.51 | 8.51 | 100.09 | 22.53 | 299.08 | 0.4355 | 441.0 | 391.9 | |
| 0.42 | 578.34 | 0.24 | 316.49 | 10.12 | 100.14 | 22.58 | 302.20 | 0.4486 | 774.6 | 414.6 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 7.40 | 99.93 | 22.37 | 296.94 | 0.4251 | 890.0 | 777.3 | |
| 0.00 | 1.61 | 0.00 | 0.88 | 7.57 | 99.88 | 22.31 | 297.37 | 0.4256 | 691.0 | 590.1 | |
| 0.68 | -32.00 | 0.37 | -32.00 | 8.74 | 99.63 | 22.06 | 300.07 | 0.4308 | 648.0 | 999999 | |
| 0.34 | -32.00 | 0.19 | -32.00 | 8.89 | 99.54 | 21.98 | 300.47 | 0.4308 | 724.5 | 999999 | |
| 1.95 | -32.00 | 1.07 | -32.00 | 9.04 | 99.42 | 21.86 | 300.90 | 0.4303 | 803.2 | 999999 | |
| 4.33 | -32.00 | 2.39 | -32.00 | 10.04 | 99.42 | 21.86 | 302.88 | 0.4385 | 1010.7 | 999999 | |
| 3.65 | -32.00 | 2.01 | -32.00 | 9.98 | 99.26 | 21.70 | 302.95 | 0.4358 | 1029.6 | 999999 | |
| 1.70 | -32.00 | 0.93 | -32.00 | 9.73 | 99.24 | 21.68 | 302.50 | 0.4335 | 960.7 | 999999 | |
| 1.19 | -32.00 | 0.65 | -32.00 | 8.70 | 99.04 | 21.48 | 300.64 | 0.4225 | 701.4 | 999999 | |
| 1.53 | -32.00 | 0.84 | -32.00 | 9.52 | 99.07 | 21.50 | 302.28 | 0.4294 | 945.5 | 999999 | |
| 6.46 | -32.00 | 3.54 | -32.00 | 9.69 | 98.92 | 21.35 | 302.81 | 0.4289 | 1056.6 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.51 | 7.67 | 98.79 | 21.23 | 298.75 | 0.4111 | -349.0 | -380.1 | |
| 0.00 | 0.93 | 0.00 | 0.50 | 5.95 | 98.42 | 20.86 | 295.32 | 0.3936 | -715.0 | -510.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 11.05 | 98.57 | 21.00 | 305.89 | 0.4361 | 640.0 | 440.4 | |
| 65.95 | -32.00 | 35.94 | -32.00 | 9.29 | 98.41 | 20.85 | 302.61 | 0.4187 | 1279.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 6.69 | 98.14 | 20.58 | 297.34 | 0.3947 | 712.0 | 562.4 | |
| 0.00 | 0.93 | 0.00 | 0.51 | 7.56 | 98.18 | 20.62 | 299.24 | 0.4018 | -744.0 | -557.5 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 12.83 | 97.29 | 19.73 | 310.88 | 0.4372 | 784.0 | 633.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
