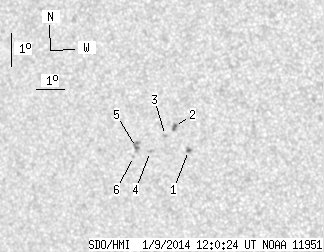

SDO HMI 2014-01-09 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.72 | 14.44 | 1.61 | 8.56 | -12.74 | 45.02 | -32.54 | 107.28 | 0.5516 | -73.4 | -262.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 12:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.85 | 2.21 | 0.50 | 1.29 | -12.96 | 46.17 | -31.39 | 108.14 | 0.5363 | 898.1 | 713.9 | |
| 1.19 | 2.46 | 0.70 | 1.45 | -12.23 | 45.78 | -31.79 | 106.65 | 0.5395 | 857.9 | 711.0 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -12.49 | 45.42 | -32.14 | 106.98 | 0.5453 | 193.0 | 133.9 | |
| 0.00 | 2.04 | 0.00 | 1.21 | -12.94 | 44.81 | -32.75 | 107.56 | 0.5552 | -818.0 | -577.3 | |
| 0.68 | 5.27 | 0.41 | 3.15 | -12.81 | 44.33 | -33.23 | 107.13 | 0.5614 | -891.9 | -746.1 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -13.07 | 44.18 | -33.38 | 107.54 | 0.5643 | -550.0 | -489.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
