SDO HMI 2014-01-09 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.23 | 0.00 | 9.97 | -21.11 | 62.78 | -13.69 | 152.54 | 0.3847 | -248.6 | -299.7 | |
|
previous
or next observation for the same group /

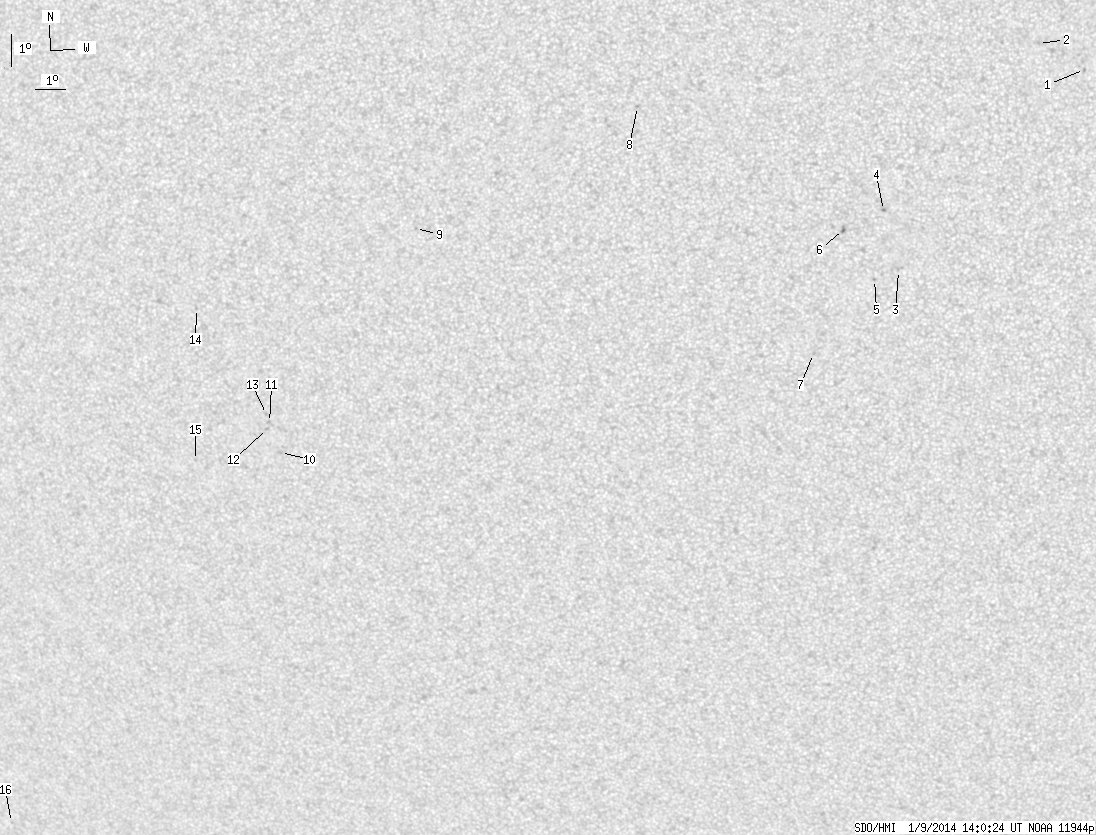

back to the solar disc SDO HMI 2014-01-09 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.47 | -13.65 | 80.31 | 3.85 | 201.16 | 0.1814 | -893.0 | -748.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -12.88 | 78.91 | 2.44 | 195.00 | 0.1613 | -814.0 | -664.9 | |
| 0.00 | 0.59 | 0.00 | 0.31 | -19.73 | 74.60 | -1.86 | 173.58 | 0.2747 | 749.0 | 587.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -17.90 | 74.16 | -2.30 | 170.97 | 0.2450 | 947.0 | 849.4 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -20.00 | 73.85 | -2.62 | 171.17 | 0.2809 | 919.0 | 791.6 | |
| 0.00 | 2.46 | 0.00 | 1.26 | -18.47 | 72.91 | -3.56 | 166.78 | 0.2586 | -973.0 | -873.6 | |
| 0.00 | 0.93 | 0.00 | 0.49 | -22.27 | 71.85 | -4.61 | 166.69 | 0.3245 | 714.0 | 616.2 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -14.70 | 66.66 | -9.80 | 138.65 | 0.2505 | 905.0 | 692.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.26 | 59.38 | -17.09 | 131.84 | 0.3762 | -769.0 | -609.7 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -25.08 | 53.82 | -22.65 | 136.31 | 0.5069 | -706.0 | -567.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -24.13 | 53.62 | -22.85 | 134.62 | 0.4999 | -816.0 | -655.7 | |
| 0.00 | 1.19 | 0.00 | 0.68 | -24.31 | 53.51 | -22.95 | 134.79 | 0.5028 | -736.0 | -637.6 | |
| 0.00 | 0.76 | 0.00 | 0.44 | -23.87 | 53.56 | -22.90 | 134.15 | 0.4981 | -672.0 | -517.4 | |
| 0.00 | 1.10 | 0.00 | 0.63 | -20.52 | 51.73 | -24.73 | 126.59 | 0.4901 | -691.0 | -475.1 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -25.25 | 50.75 | -25.72 | 133.25 | 0.5410 | -635.0 | -443.2 | |
| 0.00 | 0.68 | 0.00 | 0.50 | -36.94 | 38.85 | -37.61 | 138.73 | 0.7419 | -506.0 | -420.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
