SDO HMI 2014-01-09 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.02 | 271.62 | 23.76 | 160.91 | 5.77 | 44.87 | -31.59 | 72.73 | 0.5480 | -902.3 | -366.3 | |
|
previous
or next observation for the same group /

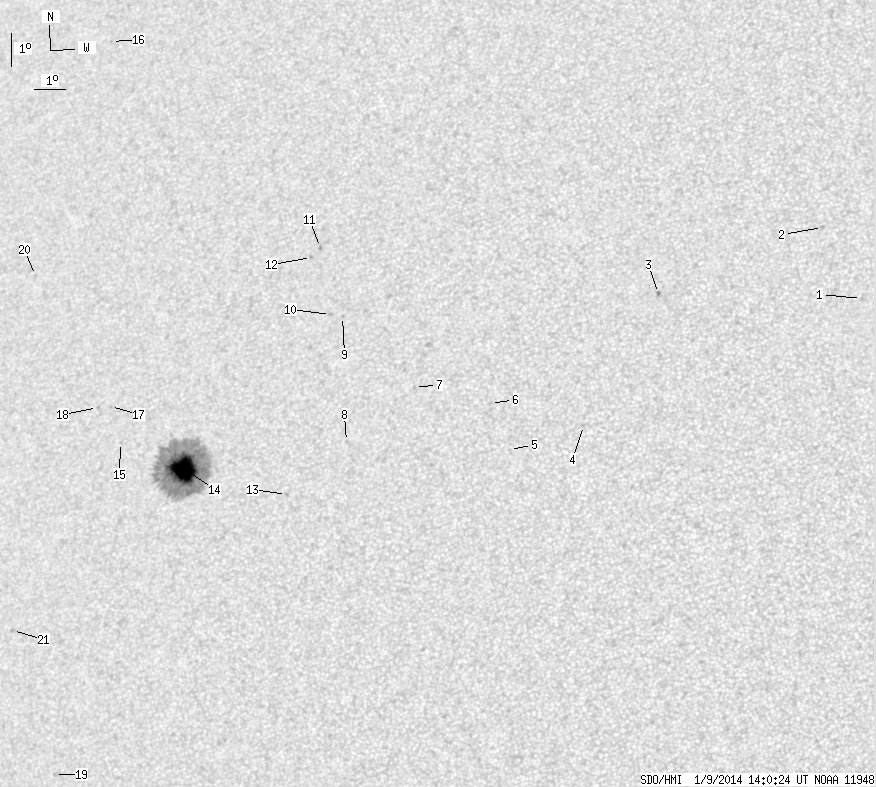

back to the solar disc SDO HMI 2014-01-09 14:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.84 | 10.12 | 65.92 | -10.54 | 36.63 | 0.3033 | -755.0 | -523.2 | |
| 0.00 | 2.04 | 0.00 | 1.08 | 12.31 | 64.64 | -11.82 | 35.67 | 0.3448 | -731.0 | -595.0 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 10.39 | 59.65 | -16.82 | 49.27 | 0.3772 | -883.0 | -768.4 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 6.46 | 57.48 | -18.98 | 61.27 | 0.3702 | -685.0 | -452.1 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 5.80 | 55.17 | -21.30 | 65.47 | 0.3989 | -671.0 | -549.8 | |
| 0.00 | 1.10 | 0.00 | 0.60 | 7.19 | 54.50 | -21.97 | 63.07 | 0.4181 | -713.0 | -604.5 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 7.75 | 52.01 | -24.46 | 64.37 | 0.4569 | -627.0 | -528.3 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 6.20 | 49.86 | -26.61 | 69.20 | 0.4783 | -676.0 | -579.5 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 9.97 | 49.45 | -27.01 | 62.44 | 0.5066 | -707.0 | -571.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 10.05 | 49.04 | -27.42 | 62.66 | 0.5126 | -883.0 | -639.5 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 12.11 | 48.49 | -27.97 | 59.61 | 0.5338 | -855.0 | -697.3 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 11.81 | 48.22 | -28.25 | 60.33 | 0.5353 | -852.0 | -706.0 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 4.68 | 47.92 | -28.54 | 73.41 | 0.4989 | -735.0 | -609.9 | |
| 40.02 | 247.52 | 23.76 | 147.06 | 5.55 | 44.37 | -32.09 | 73.68 | 0.5532 | -1224.0 | -360.4 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 6.45 | 42.04 | -34.43 | 73.27 | 0.5888 | -692.0 | -561.3 | |
| 0.00 | 0.68 | 0.00 | 0.46 | 18.89 | 39.70 | -36.77 | 56.47 | 0.6818 | 600.0 | 511.1 | |
| 0.00 | 1.02 | 0.00 | 0.63 | 7.55 | 41.58 | -34.88 | 71.71 | 0.5993 | -730.0 | -619.5 | |
| 0.00 | 0.59 | 0.00 | 0.37 | 7.54 | 41.11 | -35.35 | 71.96 | 0.6055 | -586.0 | -520.1 | |
| 0.00 | 1.10 | 0.00 | 0.68 | -3.30 | 39.81 | -36.65 | 90.20 | 0.5982 | 617.0 | 461.2 | |
| 0.00 | 0.76 | 0.00 | 0.50 | 11.66 | 38.27 | -38.19 | 67.17 | 0.6594 | -509.0 | -414.1 | |
| 0.00 | 1.70 | 0.00 | 1.07 | 1.02 | 38.32 | -38.14 | 83.34 | 0.6240 | 672.0 | 548.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
