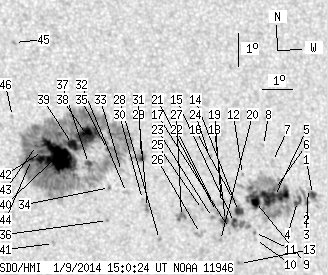

SDO HMI 2014-01-09 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145.09 | 832.13 | 81.67 | 467.29 | 9.08 | 100.62 | 24.70 | 298.29 | 0.4699 | 216.4 | 128.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.55 | 5.86 | 1.51 | 3.47 | 8.41 | 106.94 | 31.02 | 291.85 | 0.5515 | -689.9 | -506.0 | |
| 0.00 | 0.93 | 0.00 | 0.55 | 8.58 | 106.81 | 30.90 | 292.23 | 0.5507 | -604.0 | -457.2 | |
| 0.59 | 152.25 | 0.35 | 88.89 | 8.16 | 106.74 | 30.83 | 291.55 | 0.5476 | -686.4 | -435.3 | |
| 2.72 | -3.00 | 1.60 | -3.00 | 8.18 | 106.39 | 30.48 | 291.81 | 0.5430 | -772.2 | 999999 | |
| 24.04 | -3.00 | 14.05 | -3.00 | 8.30 | 105.61 | 29.70 | 292.54 | 0.5329 | -909.5 | 999999 | |
| 0.68 | -3.00 | 0.40 | -3.00 | 8.51 | 105.63 | 29.72 | 292.90 | 0.5343 | -672.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 9.36 | 105.64 | 29.73 | 294.36 | 0.5392 | -287.0 | -165.4 | |
| 0.00 | 0.59 | 0.00 | 0.35 | 9.83 | 105.38 | 29.46 | 295.36 | 0.5385 | 486.0 | 469.9 | |
| 6.71 | -3.00 | 3.89 | -3.00 | 8.13 | 104.95 | 29.03 | 292.69 | 0.5229 | -1122.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 6.98 | 104.86 | 28.95 | 290.68 | 0.5156 | -622.0 | -475.5 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 7.19 | 104.84 | 28.93 | 291.08 | 0.5164 | -735.0 | -593.1 | |
| 0.00 | 0.93 | 0.00 | 0.54 | 8.93 | 104.57 | 28.66 | 294.39 | 0.5223 | -528.0 | -480.2 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 6.24 | 104.27 | 28.36 | 289.69 | 0.5036 | -744.0 | -603.7 | |
| 4.59 | 28.63 | 2.64 | 16.46 | 7.81 | 104.34 | 28.43 | 292.54 | 0.5128 | -1053.7 | -761.8 | |
| 2.80 | -14.00 | 1.61 | -14.00 | 7.47 | 104.18 | 28.27 | 292.04 | 0.5087 | -995.0 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.57 | 8.16 | 104.20 | 28.29 | 293.29 | 0.5128 | -803.0 | -719.0 | |
| 0.00 | 3.91 | 0.00 | 2.24 | 7.28 | 104.00 | 28.09 | 291.82 | 0.5052 | -719.0 | -591.1 | |
| 2.89 | -14.00 | 1.65 | -14.00 | 7.52 | 103.88 | 27.97 | 292.35 | 0.5048 | -1068.4 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.32 | 8.03 | 103.79 | 27.87 | 293.35 | 0.5063 | -752.0 | -680.6 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 6.91 | 103.67 | 27.76 | 291.36 | 0.4985 | -748.0 | -638.9 | |
| 0.00 | 3.31 | 0.00 | 1.90 | 7.78 | 103.60 | 27.69 | 293.04 | 0.5023 | -797.0 | -776.2 | |
| 0.00 | 2.12 | 0.00 | 1.22 | 8.02 | 103.52 | 27.60 | 293.54 | 0.5025 | -790.0 | -630.0 | |
| 0.00 | 1.78 | 0.00 | 1.02 | 7.60 | 103.45 | 27.54 | 292.80 | 0.4992 | -1004.0 | -888.9 | |
| 0.00 | 2.46 | 0.00 | 1.42 | 9.44 | 103.50 | 27.59 | 296.13 | 0.5109 | 730.0 | 437.9 | |
| 0.00 | 0.93 | 0.00 | 0.53 | 7.83 | 103.13 | 27.22 | 293.48 | 0.4961 | -916.0 | -748.8 | |
| 0.00 | 5.10 | 0.00 | 2.89 | 7.10 | 103.02 | 27.10 | 292.20 | 0.4903 | -479.0 | -682.4 | |
| 0.00 | 6.03 | 0.00 | 3.41 | 7.59 | 102.42 | 26.50 | 293.60 | 0.4847 | -888.0 | -796.1 | |
| 0.00 | 1.10 | 0.00 | 0.62 | 6.88 | 101.64 | 25.73 | 292.82 | 0.4696 | -842.0 | -743.7 | |
| 0.00 | 3.31 | 0.00 | 1.86 | 7.83 | 101.31 | 25.39 | 294.97 | 0.4706 | -880.0 | -648.2 | |
| 0.00 | 0.76 | 0.00 | 0.43 | 8.07 | 101.16 | 25.24 | 295.56 | 0.4700 | 284.0 | 221.6 | |
| 1.78 | 588.02 | 1.01 | 325.83 | 9.31 | 101.22 | 25.30 | 297.87 | 0.4791 | -858.3 | 376.0 | |
| 0.00 | 2.72 | 0.00 | 1.52 | 8.26 | 100.65 | 24.73 | 296.41 | 0.4642 | -729.0 | -571.1 | |
| 0.00 | 2.63 | 0.00 | 1.47 | 8.89 | 100.53 | 24.61 | 297.74 | 0.4669 | -293.0 | -204.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 8.40 | 100.10 | 24.18 | 297.19 | 0.4575 | 640.0 | 535.8 | |
| 0.59 | -31.00 | 0.33 | -31.00 | 9.55 | 100.12 | 24.20 | 299.39 | 0.4660 | 803.1 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.52 | 7.40 | 99.97 | 24.06 | 295.31 | 0.4490 | 819.0 | 710.6 | |
| 2.21 | -31.00 | 1.23 | -31.00 | 9.11 | 99.46 | 23.55 | 299.21 | 0.4538 | 873.0 | 999999 | |
| 23.53 | -31.00 | 13.12 | -31.00 | 9.96 | 99.49 | 23.58 | 300.81 | 0.4607 | 931.3 | 999999 | |
| 8.33 | -31.00 | 4.62 | -31.00 | 9.67 | 98.98 | 23.07 | 300.80 | 0.4516 | 1022.9 | 999999 | |
| 56.16 | -31.00 | 30.96 | -31.00 | 9.29 | 98.44 | 22.52 | 300.66 | 0.4413 | 1284.1 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 6.66 | 98.18 | 22.27 | 295.48 | 0.4188 | 588.0 | 456.8 | |
| 1.44 | -31.00 | 0.79 | -31.00 | 9.43 | 97.99 | 22.08 | 301.44 | 0.4365 | 839.1 | 999999 | |
| 1.10 | -31.00 | 0.61 | -31.00 | 9.61 | 97.81 | 21.90 | 302.00 | 0.4355 | 970.0 | 999999 | |
| 2.38 | -31.00 | 1.30 | -31.00 | 9.18 | 97.62 | 21.71 | 301.37 | 0.4295 | 1233.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 12.74 | 97.35 | 21.44 | 308.43 | 0.4570 | 887.0 | 759.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 10.47 | 97.10 | 21.19 | 304.55 | 0.4334 | 710.0 | 537.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
