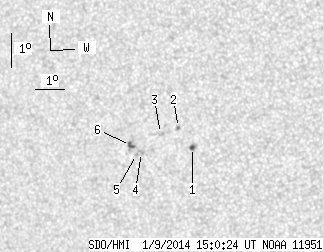

SDO HMI 2014-01-09 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.48 | 16.22 | 2.03 | 9.46 | -12.81 | 45.01 | -30.91 | 108.07 | 0.5289 | -137.2 | -114.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 15:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 2.89 | 0.83 | 1.66 | -12.97 | 46.36 | -29.55 | 108.98 | 0.5104 | 911.6 | 748.4 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -12.36 | 45.95 | -29.96 | 107.63 | 0.5140 | 931.0 | 867.5 | |
| 0.00 | 2.97 | 0.00 | 1.73 | -12.52 | 45.30 | -30.61 | 107.64 | 0.5238 | 18.0 | 254.3 | |
| 0.00 | 2.46 | 0.00 | 1.44 | -13.06 | 44.56 | -31.36 | 108.32 | 0.5361 | -702.0 | -653.6 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -13.11 | 44.37 | -31.54 | 108.34 | 0.5389 | -777.0 | -649.2 | |
| 2.04 | 5.27 | 1.20 | 3.10 | -12.84 | 44.20 | -31.72 | 107.77 | 0.5404 | -878.5 | -690.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
