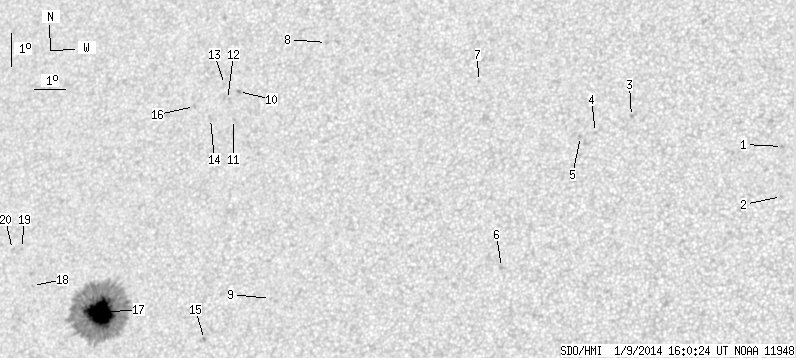

SDO HMI 2014-01-09 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.46 | 282.00 | 24.33 | 164.98 | 5.90 | 44.92 | -30.44 | 71.87 | 0.5324 | -1020.9 | -380.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 16:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.76 | 0.00 | 0.40 | 10.01 | 65.92 | -9.44 | 33.88 | 0.2912 | -826.0 | -734.9 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 8.50 | 65.93 | -9.44 | 37.03 | 0.2705 | -765.0 | -560.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 11.00 | 61.25 | -14.11 | 43.04 | 0.3521 | -781.0 | -675.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 10.53 | 60.16 | -15.20 | 46.11 | 0.3593 | -855.0 | -598.5 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 10.42 | 59.70 | -15.66 | 47.19 | 0.3635 | -696.0 | -619.0 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 6.52 | 57.41 | -17.95 | 59.74 | 0.3561 | -785.0 | -555.5 | |
| 0.00 | 0.76 | 0.00 | 0.42 | 12.17 | 56.38 | -18.98 | 49.21 | 0.4218 | -702.0 | -549.8 | |
| 0.00 | 1.61 | 0.00 | 0.92 | 13.51 | 51.31 | -24.05 | 53.37 | 0.4957 | -753.0 | -513.5 | |
| 0.00 | 0.76 | 0.00 | 0.43 | 5.79 | 50.06 | -25.30 | 69.04 | 0.4572 | -696.0 | -554.4 | |
| 0.00 | 1.44 | 0.00 | 0.84 | 12.10 | 48.52 | -26.84 | 58.61 | 0.5194 | -773.0 | -684.8 | |
| 0.00 | 0.93 | 0.00 | 0.54 | 11.24 | 48.44 | -26.92 | 60.13 | 0.5142 | -765.0 | -597.7 | |
| 0.00 | 0.34 | 0.00 | 0.20 | 11.86 | 48.17 | -27.19 | 59.32 | 0.5221 | -561.0 | -577.0 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 12.33 | 48.02 | -27.34 | 58.68 | 0.5274 | -491.0 | -412.2 | |
| 0.00 | 1.78 | 0.00 | 1.04 | 11.30 | 47.65 | -27.71 | 60.73 | 0.5248 | -659.0 | -540.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 4.63 | 47.93 | -27.43 | 72.83 | 0.4826 | -823.0 | -652.3 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 11.69 | 47.07 | -28.30 | 60.58 | 0.5351 | -799.0 | -593.4 | |
| 41.46 | 259.53 | 24.33 | 152.32 | 5.57 | 44.32 | -31.04 | 73.11 | 0.5385 | -1255.2 | -361.5 | |
| 0.00 | 0.59 | 0.00 | 0.36 | 6.47 | 41.91 | -33.45 | 72.78 | 0.5757 | -621.0 | -481.4 | |
| 0.00 | 0.76 | 0.00 | 0.47 | 7.60 | 41.42 | -33.94 | 71.16 | 0.5870 | -746.0 | -633.9 | |
| 0.00 | 1.53 | 0.00 | 0.94 | 7.58 | 41.10 | -34.26 | 71.35 | 0.5912 | -602.0 | -471.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
