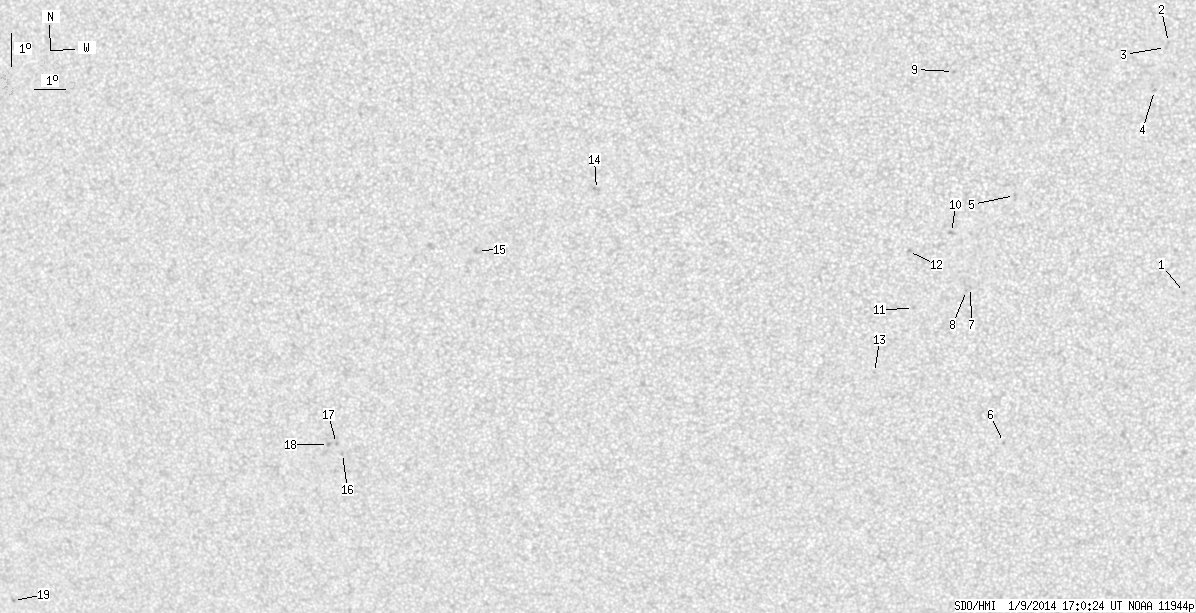

SDO HMI 2014-01-09 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.56 | 0.00 | 14.73 | -19.85 | 65.65 | -9.16 | 161.81 | 0.3434 | -125.3 | -214.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.57 | -19.72 | 81.54 | 6.73 | 202.09 | 0.2947 | 742.0 | 578.2 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -12.19 | 80.81 | 6.00 | 215.52 | 0.1768 | -765.0 | -595.8 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -12.34 | 80.73 | 5.92 | 214.63 | 0.1780 | -847.0 | -619.6 | |
| 0.00 | 1.02 | 0.00 | 0.51 | -13.62 | 80.42 | 5.61 | 209.50 | 0.1938 | -879.0 | -709.8 | |
| 0.00 | 1.19 | 0.00 | 0.60 | -16.79 | 76.18 | 1.37 | 185.91 | 0.2240 | 757.0 | 571.9 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -24.39 | 75.89 | 1.08 | 182.82 | 0.3509 | 873.0 | 710.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -19.59 | 74.83 | 0.02 | 180.06 | 0.2703 | 828.0 | 601.2 | |
| 0.00 | 0.76 | 0.00 | 0.39 | -19.68 | 74.70 | -0.11 | 179.62 | 0.2719 | 790.0 | 671.4 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -13.06 | 74.32 | -0.49 | 176.98 | 0.1590 | -950.0 | -833.5 | |
| 0.00 | 2.12 | 0.00 | 1.08 | -17.91 | 74.24 | -0.57 | 177.75 | 0.2421 | 1033.0 | 844.2 | |
| 0.00 | 0.93 | 0.00 | 0.48 | -20.22 | 73.04 | -1.77 | 174.08 | 0.2827 | 713.0 | 601.7 | |
| 0.00 | 1.61 | 0.00 | 0.83 | -18.48 | 72.90 | -1.91 | 172.82 | 0.2537 | -905.0 | -728.3 | |
| 0.00 | 0.76 | 0.00 | 0.40 | -22.20 | 71.77 | -3.04 | 171.07 | 0.3181 | 703.0 | 495.0 | |
| 0.00 | 2.46 | 0.00 | 1.28 | -16.51 | 63.26 | -11.55 | 138.69 | 0.2922 | -786.0 | -712.9 | |
| 0.00 | 3.82 | 0.00 | 2.03 | -18.30 | 59.34 | -15.47 | 134.61 | 0.3573 | -437.0 | -442.6 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -24.47 | 54.03 | -20.78 | 137.65 | 0.4813 | -813.0 | -649.6 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -24.15 | 53.88 | -20.93 | 136.96 | 0.4796 | -948.0 | -729.6 | |
| 0.00 | 1.87 | 0.00 | 1.06 | -24.17 | 53.60 | -21.21 | 136.64 | 0.4828 | -793.0 | -717.9 | |
| 0.00 | 1.95 | 0.00 | 1.28 | -28.77 | 40.62 | -34.19 | 131.12 | 0.6561 | -697.0 | -582.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
