SDO HMI 2014-01-09 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 155.91 | 767.05 | 88.71 | 435.16 | 9.04 | 100.76 | 25.95 | 297.06 | 0.4865 | 175.1 | 122.5 | |
|
previous
or next observation for the same group /

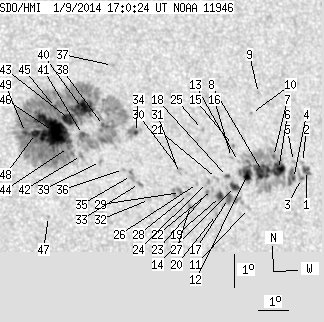

back to the solar disc SDO HMI 2014-01-09 17:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.14 | 5.78 | 1.89 | 3.47 | 8.35 | 107.01 | 32.20 | 291.05 | 0.5672 | -651.4 | -435.0 | |
| 0.00 | 1.10 | 0.00 | 0.66 | 8.59 | 106.89 | 32.09 | 291.52 | 0.5668 | -496.0 | -354.8 | |
| 0.59 | 4.76 | 0.36 | 2.85 | 8.11 | 106.81 | 32.00 | 290.76 | 0.5633 | -686.0 | -555.0 | |
| 1.10 | 141.35 | 0.66 | 83.53 | 8.10 | 106.53 | 31.72 | 290.91 | 0.5594 | -773.9 | -394.6 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 8.61 | 106.58 | 31.77 | 291.74 | 0.5626 | -572.0 | -459.4 | |
| 12.57 | -4.00 | 7.47 | -4.00 | 8.35 | 106.03 | 31.22 | 291.64 | 0.5539 | -860.7 | 999999 | |
| 0.68 | -4.00 | 0.40 | -4.00 | 8.74 | 105.89 | 31.08 | 292.39 | 0.5541 | -489.5 | 999999 | |
| 16.22 | -4.00 | 9.57 | -4.00 | 8.27 | 105.47 | 30.66 | 291.86 | 0.5459 | -932.4 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.35 | 10.63 | 105.57 | 30.76 | 295.77 | 0.5603 | -658.0 | -557.4 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 10.01 | 105.25 | 30.44 | 294.97 | 0.5526 | 486.0 | 458.8 | |
| 0.00 | 1.61 | 0.00 | 0.94 | 7.14 | 104.89 | 30.08 | 290.24 | 0.5322 | -607.0 | -491.3 | |
| 7.65 | -4.00 | 4.48 | -4.00 | 8.16 | 104.94 | 30.13 | 292.02 | 0.5381 | -1080.9 | 999999 | |
| 0.00 | 0.42 | 0.00 | 0.25 | 8.54 | 104.66 | 29.85 | 292.87 | 0.5364 | -651.0 | -511.2 | |
| 3.99 | 6.03 | 2.33 | 3.52 | 7.78 | 104.46 | 29.65 | 291.67 | 0.5296 | -1011.5 | -765.2 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 9.02 | 104.53 | 29.72 | 293.79 | 0.5373 | -639.0 | -580.7 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 8.65 | 104.43 | 29.62 | 293.22 | 0.5339 | -557.0 | -410.0 | |
| 2.63 | 22.26 | 1.53 | 12.92 | 7.41 | 104.23 | 29.42 | 291.17 | 0.5244 | -972.1 | -730.2 | |
| 0.93 | 2.04 | 0.54 | 1.19 | 8.08 | 104.24 | 29.43 | 292.33 | 0.5281 | -828.9 | -754.2 | |
| 3.14 | -17.00 | 1.82 | -17.00 | 7.46 | 103.96 | 29.15 | 291.44 | 0.5209 | -1043.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 6.92 | 103.78 | 28.97 | 290.56 | 0.5157 | -746.0 | -680.8 | |
| 0.00 | 2.55 | 0.00 | 1.48 | 8.00 | 103.86 | 29.05 | 292.47 | 0.5225 | -641.0 | -565.9 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 7.67 | 103.70 | 28.89 | 291.97 | 0.5184 | -967.0 | -823.3 | |
| 0.00 | 2.38 | 0.00 | 1.37 | 7.57 | 103.52 | 28.71 | 291.92 | 0.5155 | -1002.0 | -881.4 | |
| 0.00 | 2.72 | 0.00 | 1.57 | 7.87 | 103.55 | 28.74 | 292.45 | 0.5174 | -828.0 | -751.1 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 9.47 | 103.51 | 28.70 | 295.32 | 0.5262 | 763.0 | 592.7 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 7.83 | 103.20 | 28.39 | 292.62 | 0.5124 | -826.0 | -685.1 | |
| 0.00 | 4.25 | 0.00 | 2.43 | 7.16 | 102.92 | 28.11 | 291.59 | 0.5048 | -894.0 | -761.5 | |
| 0.00 | 2.21 | 0.00 | 1.27 | 7.49 | 102.87 | 28.06 | 292.23 | 0.5060 | -974.0 | -829.5 | |
| 0.42 | 5.86 | 0.24 | 3.35 | 7.54 | 102.61 | 27.80 | 292.52 | 0.5025 | -967.2 | -818.4 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 8.26 | 102.63 | 27.82 | 293.83 | 0.5070 | -673.0 | -537.7 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 8.11 | 102.62 | 27.81 | 293.57 | 0.5059 | -553.0 | -511.0 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 7.30 | 101.55 | 26.74 | 292.85 | 0.4864 | -784.0 | -661.3 | |
| 0.00 | 2.38 | 0.00 | 1.35 | 7.77 | 101.25 | 26.44 | 293.99 | 0.4849 | -906.0 | -742.0 | |
| 1.36 | 10.87 | 0.77 | 6.18 | 9.31 | 101.24 | 26.43 | 296.87 | 0.4944 | -990.5 | -403.0 | |
| 0.00 | 4.93 | 0.00 | 2.78 | 8.00 | 101.00 | 26.19 | 294.63 | 0.4829 | 62.0 | 16.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 8.17 | 100.75 | 25.94 | 295.18 | 0.4804 | -912.0 | -772.9 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 11.33 | 100.65 | 25.84 | 301.02 | 0.5008 | 470.0 | 422.2 | |
| 0.76 | 521.15 | 0.43 | 291.20 | 9.49 | 100.19 | 25.38 | 298.15 | 0.4814 | 862.9 | 389.9 | |
| 0.00 | 1.95 | 0.00 | 1.10 | 8.39 | 100.01 | 25.20 | 296.25 | 0.4715 | 713.0 | 536.2 | |
| 22.51 | -38.00 | 12.66 | -38.00 | 9.98 | 99.54 | 24.73 | 299.70 | 0.4762 | 921.2 | 999999 | |
| 1.95 | -38.00 | 1.09 | -38.00 | 9.19 | 99.47 | 24.66 | 298.28 | 0.4697 | 860.2 | 999999 | |
| 0.00 | 2.97 | 0.00 | 1.66 | 8.56 | 99.39 | 24.58 | 297.13 | 0.4642 | 612.0 | 536.4 | |
| 11.04 | -38.00 | 6.18 | -38.00 | 9.64 | 99.08 | 24.27 | 299.50 | 0.4676 | 948.6 | 999999 | |
| 0.68 | -38.00 | 0.38 | -38.00 | 8.79 | 98.98 | 24.17 | 297.97 | 0.4601 | 746.8 | 999999 | |
| 1.44 | -38.00 | 0.81 | -38.00 | 9.99 | 98.65 | 23.84 | 300.61 | 0.4644 | 518.1 | 999999 | |
| 56.49 | -38.00 | 31.43 | -38.00 | 9.26 | 98.53 | 23.72 | 299.34 | 0.4573 | 1213.6 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 6.69 | 98.20 | 23.39 | 294.46 | 0.4351 | 685.0 | 530.2 | |
| 4.84 | -38.00 | 2.68 | -38.00 | 9.18 | 97.94 | 23.13 | 299.81 | 0.4487 | 1297.4 | 999999 | |
| 1.78 | -38.00 | 0.99 | -38.00 | 9.20 | 97.61 | 22.80 | 300.19 | 0.4445 | 1185.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
