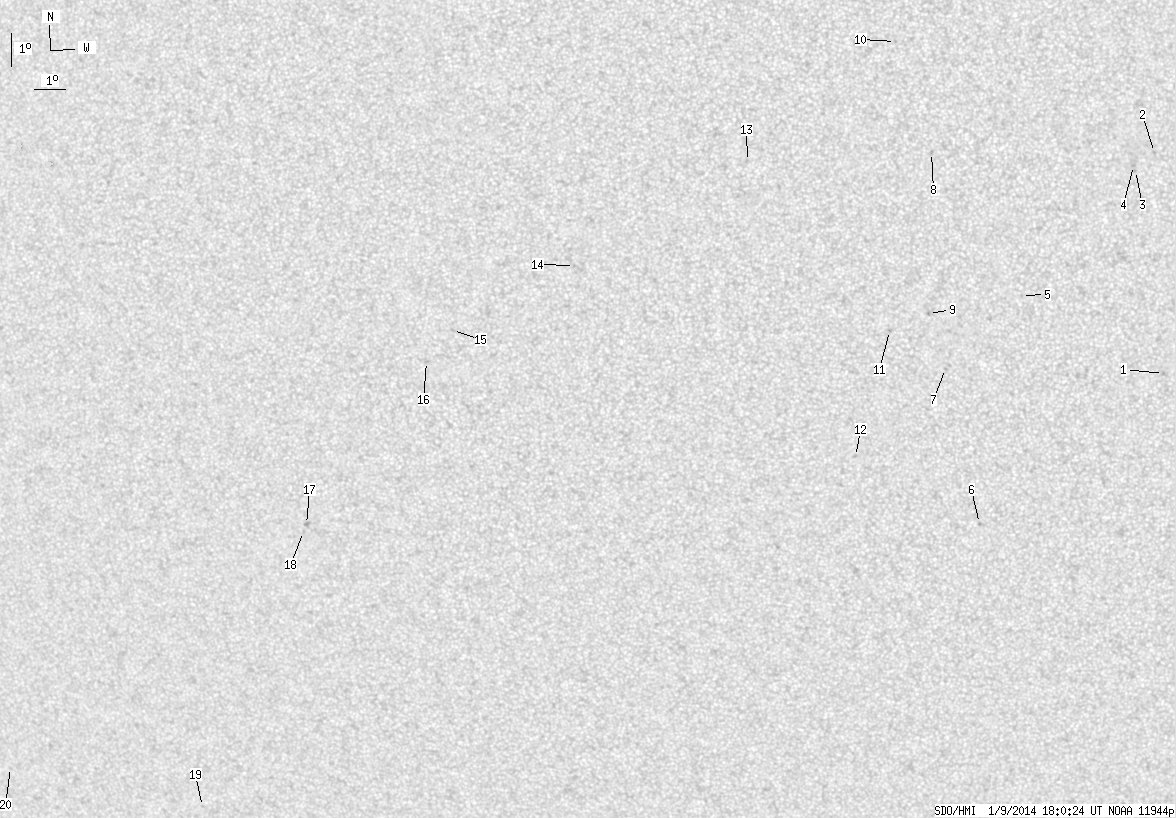

SDO HMI 2014-01-09 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.48 | 0.00 | 11.88 | -19.18 | 67.95 | -6.31 | 168.10 | 0.3146 | -313.8 | -296.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 18:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.62 | -19.75 | 81.56 | 7.30 | 203.70 | 0.2988 | 793.0 | 645.6 | |
| 0.00 | 1.10 | 0.00 | 0.56 | -13.08 | 81.04 | 6.78 | 215.94 | 0.1970 | -978.0 | -706.8 | |
| 0.00 | 0.93 | 0.00 | 0.47 | -13.62 | 80.48 | 6.22 | 212.08 | 0.1992 | -784.0 | -670.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -13.48 | 80.41 | 6.15 | 212.23 | 0.1964 | -1017.0 | -766.9 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -17.40 | 77.06 | 2.80 | 191.35 | 0.2379 | 765.0 | 562.8 | |
| 0.00 | 1.10 | 0.00 | 0.58 | -24.43 | 75.82 | 1.56 | 184.07 | 0.3519 | 693.0 | 574.7 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -19.62 | 74.71 | 0.45 | 181.59 | 0.2710 | 764.0 | 650.8 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -13.10 | 74.28 | 0.02 | 180.15 | 0.1593 | -896.0 | -665.6 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -17.95 | 74.18 | -0.07 | 179.71 | 0.2425 | 905.0 | 813.7 | |
| 0.00 | 0.68 | 0.00 | 0.34 | -9.80 | 73.21 | -1.05 | 169.92 | 0.1036 | -811.0 | -622.9 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -18.46 | 72.97 | -1.29 | 175.13 | 0.2522 | -976.0 | -796.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -22.33 | 71.85 | -2.41 | 172.96 | 0.3187 | 836.0 | 604.7 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -13.35 | 68.70 | -5.56 | 149.99 | 0.1892 | -700.0 | -551.2 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -16.41 | 63.24 | -11.01 | 139.75 | 0.2849 | -862.0 | -718.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -18.31 | 59.24 | -15.02 | 135.44 | 0.3522 | -774.0 | -669.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -19.24 | 58.31 | -15.95 | 135.69 | 0.3731 | -741.0 | -629.7 | |
| 0.00 | 2.38 | 0.00 | 1.34 | -24.19 | 53.63 | -20.63 | 137.41 | 0.4769 | -836.0 | -757.5 | |
| 0.00 | 0.85 | 0.00 | 0.48 | -24.41 | 53.49 | -20.77 | 137.57 | 0.4806 | -727.0 | -633.9 | |
| 0.00 | 0.93 | 0.00 | 0.59 | -33.23 | 47.61 | -26.65 | 142.83 | 0.6233 | -651.0 | -481.3 | |
| 0.00 | 0.25 | 0.00 | 0.17 | -31.67 | 40.41 | -33.85 | 135.04 | 0.6733 | -278.0 | -196.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
