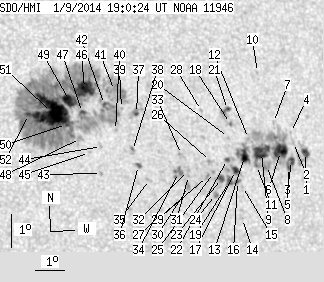

SDO HMI 2014-01-09 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.33 | 760.90 | 86.59 | 435.94 | 9.07 | 100.85 | 27.14 | 296.10 | 0.5030 | 142.2 | 149.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 19:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.74 | 15.12 | 2.27 | 9.18 | 8.33 | 107.07 | 33.37 | 290.35 | 0.5827 | -632.4 | -417.1 | |
| 0.00 | 2.55 | 0.00 | 1.54 | 8.61 | 106.67 | 32.97 | 291.05 | 0.5788 | -537.0 | -415.2 | |
| 2.46 | 91.56 | 1.49 | 54.98 | 8.07 | 106.55 | 32.85 | 290.22 | 0.5745 | -740.6 | -359.8 | |
| 0.00 | 1.10 | 0.00 | 0.67 | 8.91 | 106.60 | 32.89 | 291.58 | 0.5792 | -418.0 | -344.5 | |
| 1.10 | -3.00 | 0.67 | -3.00 | 7.85 | 106.42 | 32.72 | 289.93 | 0.5718 | -655.2 | 999999 | |
| 13.34 | -3.00 | 8.03 | -3.00 | 8.33 | 106.18 | 32.48 | 290.85 | 0.5708 | -905.5 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.72 | 9.19 | 106.02 | 32.32 | 292.38 | 0.5730 | -434.0 | -390.7 | |
| 0.00 | 7.47 | 0.00 | 4.47 | 7.88 | 105.65 | 31.95 | 290.43 | 0.5615 | -136.0 | -180.1 | |
| 14.61 | -3.00 | 8.73 | -3.00 | 8.27 | 105.51 | 31.81 | 291.16 | 0.5615 | -935.1 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.56 | 10.70 | 105.63 | 31.92 | 295.07 | 0.5759 | -633.0 | -480.5 | |
| 0.59 | -3.00 | 0.35 | -3.00 | 7.87 | 105.30 | 31.59 | 290.62 | 0.5567 | -750.1 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.06 | 8.68 | 105.09 | 31.39 | 292.11 | 0.5579 | -203.0 | -233.8 | |
| 6.46 | 18.35 | 3.83 | 10.89 | 8.13 | 104.90 | 31.20 | 291.29 | 0.5526 | -1056.8 | -654.0 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 6.26 | 104.69 | 30.98 | 288.17 | 0.5407 | -657.0 | -556.4 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 7.22 | 104.76 | 31.05 | 289.82 | 0.5461 | -612.0 | -526.9 | |
| 1.02 | 27.94 | 0.60 | 16.44 | 7.36 | 104.60 | 30.89 | 290.17 | 0.5446 | -813.8 | -716.9 | |
| 3.57 | -16.00 | 2.11 | -16.00 | 7.69 | 104.55 | 30.85 | 290.76 | 0.5456 | -963.8 | 999999 | |
| 0.34 | 2.46 | 0.20 | 1.46 | 9.11 | 104.51 | 30.80 | 293.21 | 0.5523 | -684.5 | -454.8 | |
| 3.14 | -16.00 | 1.85 | -16.00 | 7.35 | 104.32 | 30.61 | 290.32 | 0.5407 | -877.1 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 8.68 | 104.40 | 30.69 | 292.56 | 0.5486 | -673.0 | -502.7 | |
| 1.19 | 6.88 | 0.71 | 4.08 | 9.53 | 104.44 | 30.74 | 293.96 | 0.5538 | 710.1 | 159.3 | |
| 1.27 | 3.65 | 0.75 | 2.15 | 8.02 | 104.30 | 30.60 | 291.48 | 0.5438 | -854.5 | -712.5 | |
| 2.55 | -16.00 | 1.49 | -16.00 | 7.44 | 104.05 | 30.34 | 290.63 | 0.5374 | -1016.7 | 999999 | |
| 0.00 | 2.97 | 0.00 | 1.74 | 6.95 | 103.80 | 30.10 | 289.91 | 0.5316 | -853.0 | -741.1 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 7.61 | 103.79 | 30.08 | 291.09 | 0.5346 | -1002.0 | -854.5 | |
| 0.00 | 3.23 | 0.00 | 1.89 | 7.94 | 103.71 | 30.00 | 291.72 | 0.5353 | -643.0 | -639.9 | |
| 0.00 | 2.46 | 0.00 | 1.44 | 7.48 | 103.57 | 29.86 | 291.01 | 0.5310 | -956.0 | -842.3 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 9.47 | 103.54 | 29.83 | 294.49 | 0.5414 | 751.0 | 487.1 | |
| 0.00 | 1.44 | 0.00 | 0.84 | 7.20 | 103.17 | 29.47 | 290.76 | 0.5240 | -859.0 | -716.7 | |
| 0.00 | 3.23 | 0.00 | 1.87 | 7.16 | 102.89 | 29.19 | 290.86 | 0.5200 | -941.0 | -772.0 | |
| 0.00 | 0.93 | 0.00 | 0.54 | 7.49 | 102.92 | 29.22 | 291.45 | 0.5220 | -956.0 | -777.4 | |
| 0.00 | 1.19 | 0.00 | 0.69 | 7.64 | 102.93 | 29.23 | 291.71 | 0.5230 | -804.0 | -661.3 | |
| 0.00 | 1.95 | 0.00 | 1.13 | 8.11 | 102.73 | 29.03 | 292.70 | 0.5228 | -730.0 | -686.5 | |
| 0.00 | 8.41 | 0.00 | 4.86 | 7.57 | 102.58 | 28.88 | 291.82 | 0.5178 | -845.0 | -840.4 | |
| 0.00 | 2.63 | 0.00 | 1.51 | 7.32 | 101.59 | 27.88 | 292.07 | 0.5026 | -740.0 | -673.7 | |
| 1.02 | 3.06 | 0.58 | 1.75 | 7.73 | 101.25 | 27.54 | 293.08 | 0.5001 | -875.6 | -611.5 | |
| 1.27 | 6.88 | 0.73 | 3.96 | 9.30 | 101.30 | 27.60 | 295.90 | 0.5103 | -893.5 | -511.4 | |
| 0.00 | 3.14 | 0.00 | 1.80 | 8.18 | 101.08 | 27.37 | 294.04 | 0.5004 | -143.0 | 30.5 | |
| 0.00 | 0.59 | 0.00 | 0.34 | 9.44 | 100.81 | 27.11 | 296.55 | 0.5045 | 316.0 | 296.0 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 8.77 | 100.55 | 26.85 | 295.54 | 0.4967 | -380.0 | -304.7 | |
| 0.00 | 40.94 | 0.00 | 23.47 | 9.98 | 100.62 | 26.92 | 297.68 | 0.5056 | -8.0 | 98.8 | |
| 0.93 | 484.23 | 0.53 | 272.64 | 9.54 | 100.25 | 26.55 | 297.22 | 0.4976 | 725.4 | 430.3 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 7.45 | 99.99 | 26.29 | 293.53 | 0.4809 | 763.0 | 619.0 | |
| 0.00 | 0.59 | 0.00 | 0.34 | 8.27 | 100.05 | 26.34 | 295.03 | 0.4867 | 635.0 | 504.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 8.07 | 99.64 | 25.93 | 295.01 | 0.4797 | 626.0 | 475.1 | |
| 21.66 | -42.00 | 12.31 | -42.00 | 10.01 | 99.62 | 25.92 | 298.62 | 0.4924 | 910.1 | 999999 | |
| 1.70 | -42.00 | 0.96 | -42.00 | 9.28 | 99.49 | 25.79 | 297.40 | 0.4857 | 813.3 | 999999 | |
| 0.00 | 3.65 | 0.00 | 2.06 | 8.49 | 99.37 | 25.66 | 296.03 | 0.4787 | 640.0 | 556.3 | |
| 11.89 | -42.00 | 6.72 | -42.00 | 9.63 | 99.09 | 25.39 | 298.42 | 0.4826 | 951.4 | 999999 | |
| 0.76 | -42.00 | 0.43 | -42.00 | 8.90 | 98.94 | 25.23 | 297.20 | 0.4755 | 888.9 | 999999 | |
| 53.60 | -42.00 | 30.07 | -42.00 | 9.25 | 98.47 | 24.76 | 298.30 | 0.4715 | 1236.2 | 999999 | |
| 2.12 | -42.00 | 1.18 | -42.00 | 9.17 | 97.71 | 24.00 | 298.89 | 0.4606 | 1135.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
