SDO HMI 2014-01-09 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.94 | 0.00 | 17.70 | -14.36 | 110.54 | 37.39 | 251.84 | 0.6222 | -231.2 | -207.1 | |
|
previous
or next observation for the same group /

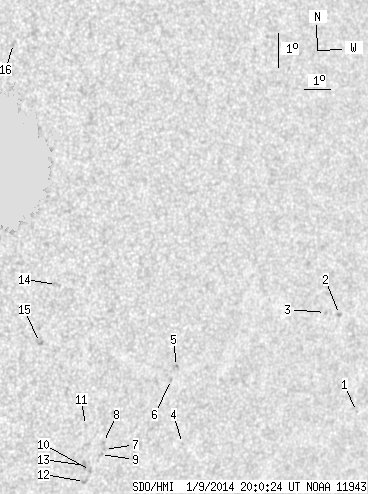

back to the solar disc SDO HMI 2014-01-09 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.25 | 0.00 | 0.19 | -15.19 | 120.38 | 47.22 | 253.06 | 0.7429 | 530.0 | 506.3 | |
| 0.00 | 1.78 | 0.00 | 1.27 | -12.34 | 118.89 | 45.74 | 256.67 | 0.7214 | 781.0 | 620.3 | |
| 0.00 | 1.19 | 0.00 | 0.84 | -12.31 | 118.28 | 45.13 | 256.62 | 0.7141 | 670.0 | 573.1 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -16.48 | 113.32 | 40.17 | 249.44 | 0.6630 | -494.0 | -431.7 | |
| 0.00 | 1.19 | 0.00 | 0.77 | -14.19 | 112.56 | 39.41 | 252.64 | 0.6472 | -734.0 | -642.6 | |
| 0.00 | 1.53 | 0.00 | 0.99 | -14.58 | 112.44 | 39.29 | 252.00 | 0.6467 | -697.0 | -453.1 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -16.79 | 110.31 | 37.16 | 247.88 | 0.6265 | -649.0 | -523.9 | |
| 0.00 | 1.10 | 0.00 | 0.70 | -16.58 | 110.23 | 37.07 | 248.17 | 0.6247 | -682.0 | -545.2 | |
| 0.00 | 1.87 | 0.00 | 1.18 | -16.95 | 110.19 | 37.04 | 247.59 | 0.6256 | -585.0 | -495.7 | |
| 0.00 | 1.87 | 0.00 | 1.18 | -17.44 | 109.92 | 36.77 | 246.71 | 0.6240 | -579.0 | -509.3 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -16.10 | 109.43 | 36.28 | 248.61 | 0.6128 | -545.0 | -513.5 | |
| 0.00 | 2.21 | 0.00 | 1.40 | -17.78 | 109.77 | 36.62 | 246.12 | 0.6235 | -616.0 | -544.1 | |
| 0.00 | 3.65 | 0.00 | 2.30 | -17.30 | 109.66 | 36.50 | 246.81 | 0.6202 | -709.0 | -653.2 | |
| 0.00 | 2.97 | 0.00 | 1.80 | -11.93 | 107.61 | 34.46 | 254.83 | 0.5758 | 511.0 | 519.3 | |
| 0.00 | 2.89 | 0.00 | 1.75 | -13.68 | 107.26 | 34.10 | 251.73 | 0.5760 | -616.0 | -624.9 | |
| 0.00 | 2.55 | 0.00 | 1.49 | -4.87 | 105.39 | 32.24 | 267.20 | 0.5343 | 714.0 | 545.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
