SDO HMI 2014-01-09 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.88 | 0.00 | 14.02 | -21.87 | 63.87 | -9.29 | 165.01 | 0.3791 | -83.6 | -126.6 | |
|
previous
or next observation for the same group /

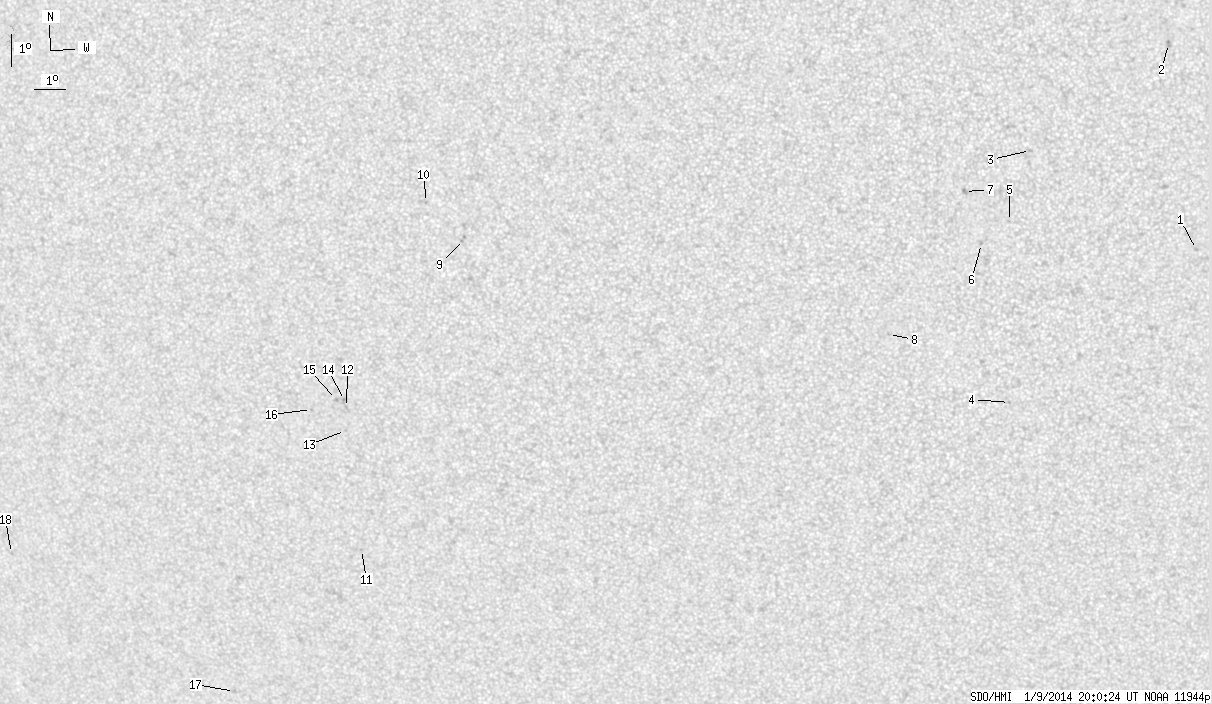

back to the solar disc SDO HMI 2014-01-09 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.84 | -19.72 | 81.56 | 8.40 | 206.84 | 0.3061 | 764.0 | 679.8 | |
| 0.00 | 2.80 | 0.00 | 1.42 | -13.51 | 80.44 | 7.29 | 216.62 | 0.2077 | -842.0 | -722.0 | |
| 0.00 | 1.61 | 0.00 | 0.82 | -16.74 | 76.28 | 3.13 | 193.32 | 0.2280 | 887.0 | 699.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -24.50 | 75.76 | 2.60 | 186.73 | 0.3544 | 781.0 | 594.0 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -18.90 | 75.66 | 2.51 | 189.15 | 0.2618 | 794.0 | 647.1 | |
| 0.00 | 1.02 | 0.00 | 0.52 | -19.57 | 74.80 | 1.64 | 185.75 | 0.2712 | 822.0 | 637.8 | |
| 0.00 | 2.55 | 0.00 | 1.30 | -17.99 | 74.26 | 1.10 | 184.33 | 0.2437 | 931.0 | 805.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -22.37 | 71.86 | -1.29 | 176.22 | 0.3175 | 799.0 | 609.3 | |
| 0.00 | 1.95 | 0.00 | 1.04 | -19.31 | 58.46 | -14.69 | 138.05 | 0.3596 | -460.0 | -701.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.16 | 57.37 | -15.78 | 133.74 | 0.3592 | -721.0 | -586.5 | |
| 0.00 | 0.76 | 0.00 | 0.44 | -28.97 | 53.65 | -19.51 | 145.55 | 0.5185 | -625.0 | -525.6 | |
| 0.00 | 1.87 | 0.00 | 1.04 | -24.43 | 53.93 | -19.22 | 139.64 | 0.4648 | -788.0 | -509.5 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -25.15 | 53.78 | -19.37 | 140.52 | 0.4742 | -676.0 | -548.1 | |
| 0.00 | 1.95 | 0.00 | 1.09 | -24.20 | 53.90 | -19.25 | 139.26 | 0.4627 | -897.0 | -787.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -24.17 | 53.63 | -19.52 | 138.83 | 0.4650 | -854.0 | -726.5 | |
| 0.00 | 1.02 | 0.00 | 0.57 | -24.46 | 52.72 | -20.43 | 138.07 | 0.4774 | -599.0 | -502.6 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -33.55 | 47.74 | -25.41 | 144.36 | 0.6162 | -77.0 | -85.2 | |
| 0.00 | 0.93 | 0.00 | 0.60 | -28.71 | 40.56 | -32.59 | 132.17 | 0.6396 | -744.0 | -592.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
