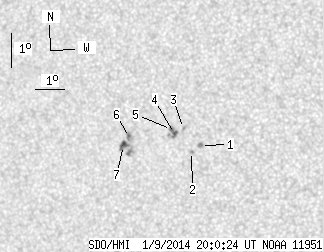

SDO HMI 2014-01-09 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.52 | 29.56 | 3.14 | 16.77 | -12.74 | 44.95 | -28.21 | 109.18 | 0.4900 | 320.1 | -47.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 20:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.55 | 0.00 | 1.43 | -12.97 | 46.62 | -26.53 | 110.56 | 0.4668 | 1035.0 | 831.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -13.14 | 46.30 | -26.86 | 110.71 | 0.4723 | 832.0 | 688.3 | |
| 0.00 | 2.04 | 0.00 | 1.14 | -12.44 | 46.11 | -27.05 | 109.18 | 0.4721 | 974.0 | 767.2 | |
| 1.53 | 7.73 | 0.86 | 4.35 | -12.58 | 45.78 | -27.37 | 109.29 | 0.4773 | 964.9 | 677.9 | |
| 0.76 | -4.00 | 0.43 | -4.00 | -12.46 | 45.70 | -27.46 | 109.00 | 0.4781 | 886.3 | 999999 | |
| 0.00 | 4.25 | 0.00 | 2.43 | -12.65 | 44.23 | -28.92 | 108.63 | 0.5000 | -778.0 | -748.1 | |
| 3.23 | 11.72 | 1.85 | 6.71 | -12.88 | 44.00 | -29.16 | 108.96 | 0.5043 | -840.2 | -712.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
