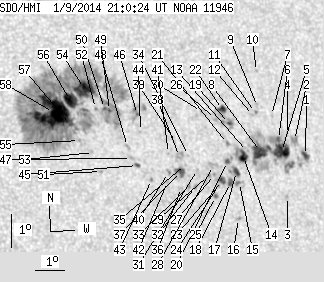

SDO HMI 2014-01-09 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 154.74 | 763.64 | 90.03 | 442.08 | 9.07 | 100.83 | 28.23 | 295.23 | 0.5178 | 117.7 | 132.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.72 | 12.49 | 1.68 | 7.69 | 8.24 | 107.15 | 34.55 | 289.60 | 0.5980 | -634.3 | -409.1 | |
| 0.00 | 6.54 | 0.00 | 4.02 | 8.68 | 106.80 | 34.20 | 290.48 | 0.5954 | -417.0 | -324.7 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 6.98 | 106.38 | 33.78 | 287.94 | 0.5824 | 420.0 | 175.0 | |
| 0.00 | 0.68 | 0.00 | 0.42 | 8.85 | 106.56 | 33.96 | 290.89 | 0.5931 | -440.0 | -358.5 | |
| 16.05 | 89.02 | 9.80 | 54.09 | 8.33 | 106.29 | 33.69 | 290.20 | 0.5871 | -887.2 | -401.2 | |
| 1.36 | -5.00 | 0.83 | -5.00 | 8.69 | 106.22 | 33.62 | 290.81 | 0.5878 | -628.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 9.41 | 106.05 | 33.45 | 292.07 | 0.5890 | 125.0 | 154.0 | |
| 14.01 | -5.00 | 8.48 | -5.00 | 8.30 | 105.54 | 32.94 | 290.57 | 0.5769 | -881.8 | 999999 | |
| 0.00 | 2.55 | 0.00 | 1.55 | 9.66 | 105.57 | 32.98 | 292.76 | 0.5841 | -596.0 | -518.0 | |
| 0.00 | 0.76 | 0.00 | 0.47 | 10.73 | 105.67 | 33.07 | 294.39 | 0.5909 | -421.0 | -445.7 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 9.48 | 105.48 | 32.88 | 292.52 | 0.5819 | -629.0 | -685.3 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 9.38 | 105.40 | 32.80 | 292.41 | 0.5804 | -528.0 | -409.0 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 8.28 | 105.08 | 32.48 | 290.81 | 0.5706 | -558.0 | -648.4 | |
| 6.12 | 13.93 | 3.67 | 8.36 | 8.13 | 104.92 | 32.32 | 290.64 | 0.5678 | -1019.2 | -624.7 | |
| 0.00 | 3.06 | 0.00 | 1.83 | 7.34 | 104.71 | 32.11 | 289.43 | 0.5612 | -798.0 | -619.7 | |
| 0.00 | 2.04 | 0.00 | 1.21 | 6.25 | 104.59 | 31.99 | 287.64 | 0.5548 | -734.0 | -625.6 | |
| 2.72 | 8.58 | 1.62 | 5.12 | 7.67 | 104.63 | 32.03 | 290.03 | 0.5617 | -943.2 | -729.1 | |
| 2.21 | 4.08 | 1.31 | 2.43 | 7.33 | 104.39 | 31.79 | 289.59 | 0.5569 | -874.0 | -741.4 | |
| 1.19 | 18.77 | 0.71 | 11.26 | 9.11 | 104.52 | 31.92 | 292.51 | 0.5674 | -577.2 | -166.3 | |
| 1.19 | 3.82 | 0.71 | 2.28 | 7.96 | 104.34 | 31.74 | 290.69 | 0.5592 | -857.7 | -743.7 | |
| 0.00 | 1.95 | 0.00 | 1.17 | 8.50 | 104.39 | 31.79 | 291.57 | 0.5625 | -674.0 | -553.5 | |
| 3.31 | -19.00 | 1.99 | -19.00 | 9.52 | 104.32 | 31.72 | 293.32 | 0.5669 | 662.2 | 999999 | |
| 2.55 | 5.01 | 1.51 | 2.97 | 7.38 | 104.12 | 31.52 | 289.83 | 0.5533 | -982.5 | -807.0 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 7.22 | 103.97 | 31.37 | 289.65 | 0.5505 | -811.0 | -710.0 | |
| 0.68 | 1.87 | 0.40 | 1.10 | 6.89 | 103.84 | 31.24 | 289.15 | 0.5471 | -828.4 | -709.4 | |
| 0.00 | 1.95 | 0.00 | 1.17 | 9.21 | 104.04 | 31.44 | 292.98 | 0.5615 | -42.0 | -97.1 | |
| 0.00 | 1.10 | 0.00 | 0.65 | 7.55 | 103.85 | 31.25 | 290.28 | 0.5505 | -976.0 | -811.9 | |
| 0.00 | 5.18 | 0.00 | 3.07 | 7.82 | 103.84 | 31.24 | 290.75 | 0.5517 | -731.0 | -630.2 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 7.51 | 103.64 | 31.04 | 290.35 | 0.5474 | -954.0 | -810.4 | |
| 0.00 | 0.93 | 0.00 | 0.56 | 9.44 | 103.57 | 30.97 | 293.67 | 0.5565 | 625.0 | 482.3 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 7.68 | 103.27 | 30.67 | 290.86 | 0.5432 | -798.0 | -619.0 | |
| 0.00 | 1.78 | 0.00 | 1.05 | 7.16 | 103.16 | 30.56 | 290.03 | 0.5392 | -817.0 | -659.9 | |
| 0.00 | 1.70 | 0.00 | 1.00 | 7.15 | 102.92 | 30.32 | 290.16 | 0.5358 | -849.0 | -749.5 | |
| 0.00 | 0.42 | 0.00 | 0.25 | 8.09 | 103.00 | 30.40 | 291.75 | 0.5415 | -764.0 | -683.6 | |
| 0.00 | 0.34 | 0.00 | 0.20 | 7.81 | 102.87 | 30.27 | 291.35 | 0.5384 | -494.0 | -563.2 | |
| 0.00 | 0.76 | 0.00 | 0.45 | 7.12 | 102.68 | 30.08 | 290.24 | 0.5322 | -870.0 | -693.0 | |
| 3.74 | 9.26 | 2.19 | 5.42 | 7.60 | 102.68 | 30.08 | 291.09 | 0.5346 | -946.1 | -770.2 | |
| 0.00 | 6.54 | 0.00 | 3.83 | 8.05 | 102.68 | 30.08 | 291.88 | 0.5370 | -616.0 | -421.0 | |
| 0.00 | 0.42 | 0.00 | 0.25 | 8.47 | 102.61 | 30.02 | 292.66 | 0.5383 | -554.0 | -603.2 | |
| 0.00 | 1.78 | 0.00 | 1.04 | 7.55 | 102.26 | 29.66 | 291.28 | 0.5287 | -693.0 | -788.4 | |
| 0.00 | 0.59 | 0.00 | 0.35 | 8.12 | 102.31 | 29.71 | 292.27 | 0.5323 | -690.0 | -519.1 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 7.28 | 102.21 | 29.61 | 290.83 | 0.5265 | -862.0 | -689.1 | |
| 0.00 | 1.10 | 0.00 | 0.64 | 7.32 | 101.67 | 29.07 | 291.27 | 0.5192 | -839.0 | -763.6 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 8.76 | 101.41 | 28.81 | 294.02 | 0.5235 | -653.0 | -459.0 | |
| 0.93 | 2.12 | 0.54 | 1.23 | 7.73 | 101.22 | 28.62 | 292.31 | 0.5152 | -809.8 | -600.9 | |
| 0.42 | 13.76 | 0.25 | 8.00 | 9.27 | 101.35 | 28.75 | 294.96 | 0.5257 | -864.8 | -312.9 | |
| 0.00 | 2.12 | 0.00 | 1.22 | 7.93 | 101.03 | 28.43 | 292.81 | 0.5137 | -146.0 | -244.6 | |
| 0.00 | 2.21 | 0.00 | 1.27 | 8.29 | 100.93 | 28.33 | 293.54 | 0.5142 | 306.0 | 241.0 | |
| 0.76 | 520.34 | 0.44 | 296.16 | 9.36 | 100.41 | 27.81 | 295.85 | 0.5136 | 737.6 | 385.7 | |
| 0.76 | -49.00 | 0.44 | -49.00 | 9.41 | 100.24 | 27.64 | 296.09 | 0.5117 | 880.2 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.63 | 7.51 | 99.99 | 27.39 | 292.79 | 0.4968 | 739.0 | 632.0 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 9.40 | 99.94 | 27.34 | 296.32 | 0.5075 | 806.0 | 683.0 | |
| 0.00 | 0.42 | 0.00 | 0.24 | 8.07 | 99.76 | 27.16 | 294.02 | 0.4969 | 524.0 | 505.2 | |
| 21.40 | -49.00 | 12.28 | -49.00 | 10.00 | 99.62 | 27.02 | 297.65 | 0.5072 | 894.8 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.63 | 8.42 | 99.32 | 26.72 | 295.02 | 0.4929 | 673.0 | 571.6 | |
| 12.91 | -49.00 | 7.36 | -49.00 | 9.62 | 99.12 | 26.52 | 297.40 | 0.4979 | 893.4 | 999999 | |
| 0.85 | -49.00 | 0.48 | -49.00 | 8.89 | 99.06 | 26.46 | 296.12 | 0.4923 | 786.9 | 999999 | |
| 58.86 | -49.00 | 33.34 | -49.00 | 9.24 | 98.52 | 25.92 | 297.23 | 0.4873 | 1179.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
