SDO HMI 2014-01-09 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.76 | 285.21 | 25.54 | 162.02 | 5.81 | 45.23 | -27.37 | 69.70 | 0.4892 | -1165.2 | -409.0 | |
|
previous
or next observation for the same group /

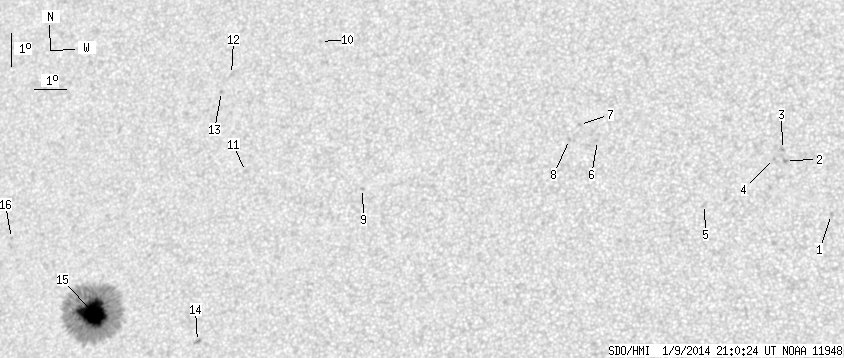

back to the solar disc SDO HMI 2014-01-09 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 0.91 | 8.01 | 67.35 | -5.25 | 23.59 | 0.2277 | -940.0 | -629.6 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 9.65 | 65.94 | -6.66 | 25.89 | 0.2630 | -980.0 | -842.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 9.99 | 65.84 | -6.75 | 25.66 | 0.2687 | -899.0 | -675.4 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 9.71 | 65.61 | -6.99 | 26.89 | 0.2664 | -873.0 | -679.2 | |
| 0.00 | 2.46 | 0.00 | 1.26 | 8.35 | 63.53 | -9.07 | 36.23 | 0.2651 | -778.0 | -502.2 | |
| 0.00 | 0.59 | 0.00 | 0.31 | 10.33 | 60.22 | -12.38 | 40.63 | 0.3255 | -801.0 | -616.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 10.83 | 59.64 | -12.96 | 40.91 | 0.3378 | -718.0 | -577.4 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 10.38 | 59.35 | -13.25 | 42.44 | 0.3355 | -736.0 | -581.1 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 9.03 | 52.96 | -19.64 | 56.29 | 0.4007 | -861.0 | -658.5 | |
| 0.00 | 0.76 | 0.00 | 0.43 | 13.56 | 51.28 | -21.32 | 49.95 | 0.4637 | -788.0 | -693.6 | |
| 0.00 | 1.87 | 0.00 | 1.04 | 9.65 | 49.16 | -23.44 | 59.58 | 0.4566 | -303.0 | -245.8 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 12.63 | 48.45 | -24.15 | 54.94 | 0.4898 | -749.0 | -668.2 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 12.12 | 48.16 | -24.44 | 56.13 | 0.4891 | -824.0 | -690.4 | |
| 0.00 | 2.80 | 0.00 | 1.55 | 4.58 | 47.88 | -24.72 | 71.09 | 0.4426 | -900.0 | -763.2 | |
| 44.76 | 263.91 | 25.54 | 150.59 | 5.56 | 44.39 | -28.21 | 71.45 | 0.4983 | -1387.5 | -389.7 | |
| 0.00 | 0.93 | 0.00 | 0.55 | 7.89 | 41.43 | -31.17 | 69.08 | 0.5510 | -653.0 | -527.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
