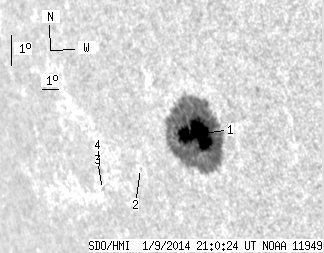

SDO HMI 2014-01-09 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.88 | 296.01 | 48.06 | 281.13 | -15.90 | 14.31 | -58.29 | 106.23 | 0.8542 | 872.9 | 178.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 21:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.88 | 292.36 | 48.06 | 276.94 | -15.89 | 14.40 | -58.20 | 106.22 | 0.8534 | 937.9 | 185.8 | |
| 0.00 | 0.59 | 0.00 | 0.63 | -16.69 | 10.49 | -62.11 | 106.78 | 0.8862 | 249.0 | 196.0 | |
| 0.00 | 1.19 | 0.00 | 1.39 | -17.16 | 7.55 | -65.05 | 107.08 | 0.9081 | -519.0 | -448.4 | |
| 0.00 | 1.87 | 0.00 | 2.17 | -16.59 | 7.77 | -64.83 | 106.47 | 0.9063 | -237.0 | -203.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
