SDO HMI 2014-01-09 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 161.30 | 738.17 | 94.54 | 429.83 | 9.09 | 100.98 | 28.93 | 294.74 | 0.5273 | 106.0 | 140.8 | |
|
previous
or next observation for the same group /

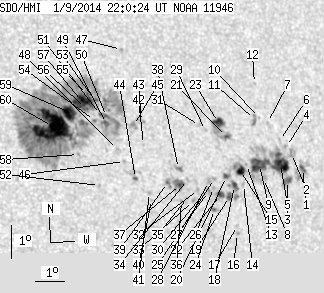

back to the solar disc SDO HMI 2014-01-09 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.04 | 15.97 | 1.27 | 9.91 | 8.26 | 107.14 | 35.10 | 289.35 | 0.6053 | -699.1 | -321.5 | |
| 0.00 | 5.86 | 0.00 | 3.63 | 8.69 | 106.79 | 34.74 | 290.22 | 0.6026 | -574.0 | -283.9 | |
| 3.48 | 76.62 | 2.14 | 46.93 | 7.87 | 106.56 | 34.51 | 289.03 | 0.5960 | -787.8 | -416.6 | |
| 0.00 | 1.44 | 0.00 | 0.89 | 8.90 | 106.63 | 34.58 | 290.63 | 0.6015 | -535.0 | -398.0 | |
| 18.18 | -3.00 | 11.18 | -3.00 | 8.38 | 106.36 | 34.31 | 289.95 | 0.5955 | -846.0 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.21 | 9.07 | 106.40 | 34.35 | 291.03 | 0.5992 | -242.0 | -260.0 | |
| 0.00 | 0.93 | 0.00 | 0.58 | 9.60 | 106.02 | 33.97 | 292.08 | 0.5969 | 182.0 | 153.0 | |
| 0.00 | 4.50 | 0.00 | 2.74 | 7.90 | 105.70 | 33.65 | 289.53 | 0.5846 | -115.0 | -172.1 | |
| 15.03 | -3.00 | 9.16 | -3.00 | 8.32 | 105.60 | 33.55 | 290.26 | 0.5851 | -852.5 | 999999 | |
| 0.00 | 0.76 | 0.00 | 0.47 | 9.74 | 105.75 | 33.70 | 292.46 | 0.5940 | -547.0 | -405.2 | |
| 0.00 | 4.25 | 0.00 | 2.60 | 9.67 | 105.56 | 33.51 | 292.46 | 0.5912 | -850.0 | -687.5 | |
| 0.00 | 0.76 | 0.00 | 0.47 | 10.77 | 105.70 | 33.65 | 294.11 | 0.5986 | -551.0 | -489.3 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 8.30 | 105.13 | 33.08 | 290.49 | 0.5789 | -711.0 | -594.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 7.69 | 104.97 | 32.92 | 289.58 | 0.5738 | -712.0 | -572.5 | |
| 5.35 | 11.64 | 3.23 | 7.03 | 8.11 | 104.90 | 32.85 | 290.31 | 0.5749 | -990.7 | -678.7 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 6.21 | 104.64 | 32.59 | 287.26 | 0.5629 | -744.0 | -656.9 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 6.45 | 104.65 | 32.61 | 287.66 | 0.5641 | -774.0 | -546.6 | |
| 2.21 | 5.10 | 1.33 | 3.06 | 7.65 | 104.64 | 32.60 | 289.69 | 0.5693 | -951.2 | -765.6 | |
| 2.04 | 14.02 | 1.22 | 8.39 | 7.31 | 104.44 | 32.39 | 289.24 | 0.5650 | -889.1 | -698.4 | |
| 1.36 | 4.42 | 0.82 | 2.65 | 7.91 | 104.39 | 32.34 | 290.27 | 0.5670 | -851.8 | -699.8 | |
| 1.36 | 22.59 | 0.82 | 13.63 | 9.12 | 104.50 | 32.45 | 292.21 | 0.5745 | -801.0 | -215.1 | |
| 2.55 | -19.00 | 1.52 | -19.00 | 7.36 | 104.13 | 32.08 | 289.49 | 0.5609 | -949.9 | 999999 | |
| 5.86 | -21.00 | 3.54 | -21.00 | 9.53 | 104.26 | 32.22 | 293.03 | 0.5735 | 483.4 | 999999 | |
| 0.76 | 2.97 | 0.45 | 1.77 | 6.90 | 103.88 | 31.83 | 288.85 | 0.5554 | -820.0 | -654.4 | |
| 0.00 | 1.61 | 0.00 | 0.96 | 7.83 | 103.96 | 31.91 | 290.39 | 0.5608 | -658.0 | -594.2 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 7.56 | 103.90 | 31.85 | 289.97 | 0.5587 | -891.0 | -789.4 | |
| 0.00 | 2.21 | 0.00 | 1.31 | 7.43 | 103.71 | 31.66 | 289.86 | 0.5556 | -893.0 | -811.5 | |
| 0.00 | 2.29 | 0.00 | 1.37 | 7.73 | 103.74 | 31.69 | 290.36 | 0.5574 | -809.0 | -728.0 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 9.27 | 103.78 | 31.73 | 292.91 | 0.5657 | 334.0 | 343.7 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 7.37 | 103.53 | 31.48 | 289.85 | 0.5528 | -784.0 | -719.2 | |
| 0.00 | 1.61 | 0.00 | 0.97 | 9.42 | 103.58 | 31.53 | 293.28 | 0.5639 | 653.0 | 394.6 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 7.48 | 103.37 | 31.32 | 290.14 | 0.5511 | -790.0 | -699.6 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 7.14 | 103.17 | 31.12 | 289.68 | 0.5467 | -768.0 | -619.8 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 7.77 | 103.01 | 30.96 | 290.85 | 0.5476 | -597.0 | -547.5 | |
| 0.00 | 0.93 | 0.00 | 0.55 | 7.23 | 102.96 | 30.92 | 289.94 | 0.5444 | -802.0 | -675.2 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 7.10 | 102.75 | 30.70 | 289.85 | 0.5407 | -849.0 | -682.1 | |
| 2.72 | 10.53 | 1.60 | 6.20 | 7.61 | 102.75 | 30.70 | 290.74 | 0.5433 | -963.6 | -777.8 | |
| 0.00 | 3.91 | 0.00 | 2.31 | 8.09 | 102.72 | 30.67 | 291.59 | 0.5453 | -816.0 | -636.0 | |
| 0.59 | 3.99 | 0.35 | 2.34 | 7.65 | 102.31 | 30.26 | 291.09 | 0.5374 | -761.7 | -609.9 | |
| 0.00 | 0.42 | 0.00 | 0.25 | 7.12 | 101.72 | 29.67 | 290.53 | 0.5266 | -782.0 | -600.2 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 7.33 | 101.66 | 29.61 | 290.93 | 0.5269 | -914.0 | -831.5 | |
| 0.00 | 0.76 | 0.00 | 0.45 | 8.77 | 101.58 | 29.53 | 293.54 | 0.5334 | -720.0 | -595.3 | |
| 0.00 | 3.40 | 0.00 | 1.99 | 9.47 | 101.57 | 29.52 | 294.75 | 0.5374 | -286.0 | -331.5 | |
| 0.68 | 4.25 | 0.39 | 2.46 | 7.74 | 101.21 | 29.17 | 291.96 | 0.5228 | -950.6 | -516.3 | |
| 0.00 | 3.99 | 0.00 | 2.33 | 9.34 | 101.28 | 29.24 | 294.73 | 0.5327 | -291.0 | -346.7 | |
| 0.00 | 1.19 | 0.00 | 0.69 | 8.24 | 100.88 | 28.83 | 293.09 | 0.5209 | 233.0 | 212.1 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 11.64 | 101.11 | 29.07 | 298.75 | 0.5449 | 626.0 | 476.7 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 8.59 | 100.67 | 28.62 | 293.87 | 0.5201 | 329.0 | 282.1 | |
| 1.78 | 64.05 | 1.03 | 37.22 | 9.37 | 100.37 | 28.32 | 295.48 | 0.5206 | 844.9 | 177.7 | |
| 1.10 | -49.00 | 0.64 | -49.00 | 9.58 | 100.38 | 28.34 | 295.84 | 0.5221 | 586.6 | 999999 | |
| 0.51 | -49.00 | 0.30 | -49.00 | 9.63 | 100.19 | 28.14 | 296.09 | 0.5198 | 726.2 | 999999 | |
| 0.00 | 0.93 | 0.00 | 0.54 | 7.48 | 99.98 | 27.93 | 292.37 | 0.5042 | 649.0 | 499.5 | |
| 0.68 | 439.49 | 0.39 | 250.80 | 10.05 | 100.06 | 28.01 | 296.93 | 0.5207 | 568.4 | 430.3 | |
| 0.00 | 1.10 | 0.00 | 0.64 | 9.45 | 99.97 | 27.92 | 295.93 | 0.5156 | 768.0 | 697.2 | |
| 0.51 | -53.00 | 0.29 | -53.00 | 10.23 | 99.80 | 27.75 | 297.44 | 0.5185 | 524.8 | 999999 | |
| 2.04 | -53.00 | 1.18 | -53.00 | 9.80 | 99.69 | 27.65 | 296.78 | 0.5142 | 833.8 | 999999 | |
| 18.01 | -53.00 | 10.39 | -53.00 | 10.01 | 99.61 | 27.56 | 297.21 | 0.5145 | 898.3 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.63 | 8.40 | 99.34 | 27.29 | 294.54 | 0.5007 | 688.0 | 598.2 | |
| 13.34 | -53.00 | 7.65 | -53.00 | 9.66 | 99.14 | 27.09 | 296.99 | 0.5059 | 884.5 | 999999 | |
| 59.12 | -53.00 | 33.65 | -53.00 | 9.22 | 98.53 | 26.49 | 296.71 | 0.4948 | 1154.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
