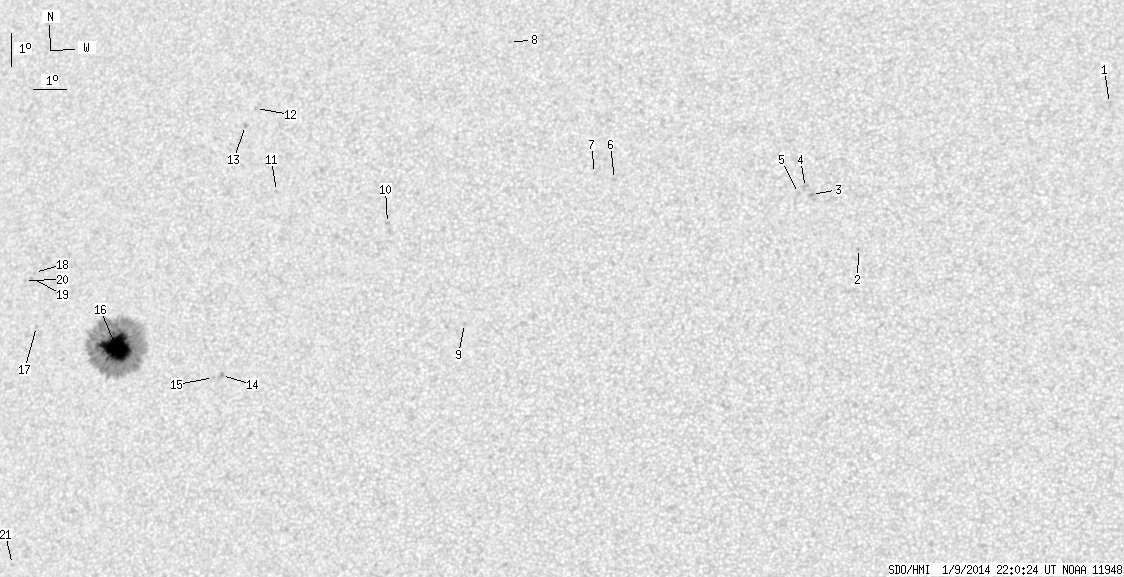

SDO HMI 2014-01-09 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.21 | 289.73 | 26.22 | 163.70 | 5.87 | 45.43 | -26.61 | 81.78 | 0.4805 | -1095.5 | -414.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.23 | 12.41 | 74.91 | 2.86 | 350.21 | 0.2880 | -656.0 | -575.1 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 8.02 | 67.39 | -4.66 | 21.12 | 0.2242 | -843.0 | -664.7 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 9.67 | 65.96 | -6.09 | 23.89 | 0.2592 | -1031.0 | -797.7 | |
| 0.00 | 3.40 | 0.00 | 1.74 | 9.88 | 65.78 | -6.27 | 24.19 | 0.2638 | -511.0 | -563.0 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 9.70 | 65.57 | -6.48 | 25.19 | 0.2625 | -929.0 | -737.4 | |
| 0.00 | 1.10 | 0.00 | 0.58 | 10.20 | 59.98 | -12.07 | 40.17 | 0.3205 | -963.0 | -773.4 | |
| 0.00 | 0.93 | 0.00 | 0.49 | 10.39 | 59.35 | -12.69 | 41.20 | 0.3296 | -707.0 | -536.0 | |
| 0.00 | 1.10 | 0.00 | 0.60 | 14.47 | 56.48 | -15.56 | 39.57 | 0.4096 | -566.0 | -516.4 | |
| 0.00 | 1.19 | 0.00 | 0.62 | 5.94 | 55.51 | -16.54 | 59.04 | 0.3316 | -827.0 | -667.4 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 9.01 | 52.98 | -19.07 | 55.55 | 0.3930 | -914.0 | -651.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 10.07 | 49.36 | -22.69 | 57.94 | 0.4500 | -799.0 | -583.9 | |
| 0.00 | 1.70 | 0.00 | 0.96 | 12.63 | 48.45 | -23.59 | 54.30 | 0.4829 | -797.0 | -639.9 | |
| 0.00 | 2.12 | 0.00 | 1.20 | 12.12 | 48.17 | -23.87 | 55.51 | 0.4821 | -863.0 | -669.5 | |
| 0.00 | 2.29 | 0.00 | 1.26 | 4.59 | 47.88 | -24.17 | 70.66 | 0.4344 | -985.0 | -802.5 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 4.54 | 47.62 | -24.43 | 70.96 | 0.4380 | -621.0 | -512.0 | |
| 46.21 | 259.76 | 26.22 | 147.45 | 5.54 | 44.38 | -27.67 | 71.15 | 0.4904 | -1404.2 | -392.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 6.26 | 41.62 | -30.43 | 71.48 | 0.5330 | -633.0 | -509.9 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 7.89 | 41.43 | -30.61 | 68.72 | 0.5435 | -726.0 | -626.3 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 7.71 | 41.34 | -30.70 | 69.09 | 0.5438 | -747.0 | -649.3 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 7.66 | 41.11 | -30.94 | 69.32 | 0.5468 | -524.0 | -429.1 | |
| 0.00 | 1.19 | 0.00 | 0.69 | -0.78 | 40.99 | -31.06 | 84.88 | 0.5201 | 827.0 | 660.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
