SDO HMI 2014-01-09 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.11 | 35.42 | 15.07 | 27.69 | 16.82 | 25.27 | -46.78 | 64.38 | 0.7757 | 294.0 | -10.1 | |
|
previous
or next observation for the same group /

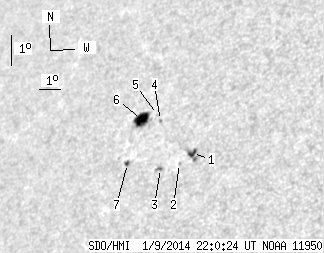

back to the solar disc SDO HMI 2014-01-09 22:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.31 | 9.00 | 2.49 | 6.77 | 16.16 | 27.08 | -44.97 | 64.41 | 0.7549 | -517.4 | -288.7 | |
| 0.00 | 1.10 | 0.00 | 0.84 | 15.87 | 26.60 | -45.45 | 64.98 | 0.7588 | -512.0 | -372.4 | |
| 0.59 | 2.55 | 0.46 | 1.96 | 15.76 | 25.79 | -46.26 | 65.47 | 0.7666 | -576.3 | -437.7 | |
| 0.00 | 1.19 | 0.00 | 0.93 | 17.29 | 25.31 | -46.74 | 63.80 | 0.7772 | 662.0 | 579.1 | |
| 0.00 | 0.85 | 0.00 | 0.67 | 17.49 | 25.11 | -46.94 | 63.65 | 0.7800 | 623.0 | 519.0 | |
| 13.85 | 18.35 | 11.04 | 14.63 | 17.37 | 24.42 | -47.63 | 64.08 | 0.7863 | 684.1 | 431.0 | |
| 1.36 | 2.38 | 1.08 | 1.89 | 16.00 | 24.23 | -47.82 | 65.81 | 0.7832 | -545.1 | -439.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
