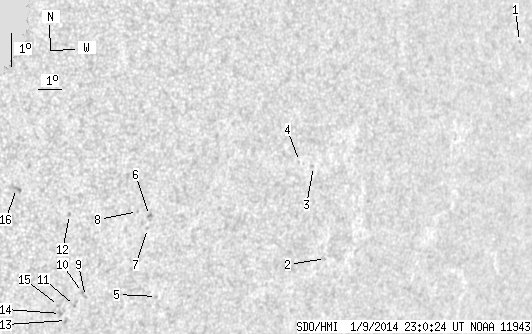

SDO HMI 2014-01-09 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.77 | 0.00 | 13.09 | -14.91 | 111.91 | 40.42 | 251.56 | 0.6605 | -402.6 | -470.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-01-09 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.76 | -8.20 | 128.22 | 56.73 | 262.82 | 0.8362 | -494.0 | -435.8 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -15.12 | 120.36 | 48.86 | 253.47 | 0.7608 | 543.0 | 546.7 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -12.42 | 119.07 | 47.57 | 256.85 | 0.7427 | 603.0 | 584.2 | |
| 0.00 | 0.42 | 0.00 | 0.31 | -12.30 | 118.42 | 46.92 | 256.92 | 0.7350 | 664.0 | 610.4 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -16.61 | 113.38 | 41.88 | 249.81 | 0.6840 | -436.0 | -321.2 | |
| 0.00 | 2.04 | 0.00 | 1.35 | -14.20 | 112.51 | 41.01 | 253.08 | 0.6673 | -787.0 | -637.0 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -14.59 | 112.51 | 41.02 | 252.51 | 0.6683 | -623.0 | -528.7 | |
| 0.00 | 0.59 | 0.00 | 0.39 | -14.10 | 112.00 | 40.51 | 253.10 | 0.6608 | -569.0 | -544.7 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -16.73 | 110.53 | 39.03 | 248.70 | 0.6497 | -559.0 | -477.4 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -16.62 | 110.38 | 38.89 | 248.82 | 0.6475 | -595.0 | -511.3 | |
| 0.00 | 0.93 | 0.00 | 0.60 | -17.02 | 110.17 | 38.67 | 248.13 | 0.6461 | -651.0 | -535.0 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -14.30 | 109.37 | 37.87 | 252.03 | 0.6277 | -635.0 | -542.5 | |
| 0.00 | 1.10 | 0.00 | 0.71 | -17.48 | 109.96 | 38.47 | 247.36 | 0.6452 | -542.0 | -468.5 | |
| 0.00 | 1.95 | 0.00 | 1.26 | -17.28 | 109.68 | 38.18 | 247.55 | 0.6410 | -836.0 | -720.7 | |
| 0.00 | 1.44 | 0.00 | 0.93 | -17.04 | 109.54 | 38.04 | 247.86 | 0.6384 | -746.0 | -617.9 | |
| 0.00 | 3.91 | 0.00 | 2.41 | -13.61 | 107.23 | 35.73 | 252.45 | 0.5975 | -779.0 | -638.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
