SDO HMI 2014-01-09 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.82 | 27.67 | 2.15 | 15.48 | -12.85 | 45.04 | -26.46 | 110.34 | 0.4651 | 150.7 | -65.0 | |
|
previous
or next observation for the same group /

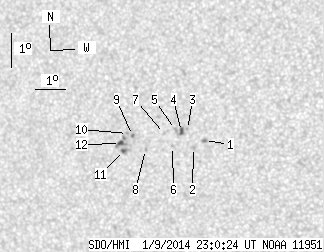

back to the solar disc SDO HMI 2014-01-09 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.12 | 0.00 | 1.17 | -12.90 | 46.79 | -24.71 | 111.52 | 0.4399 | 1022.0 | 795.2 | |
| 0.00 | 2.12 | 0.00 | 1.17 | -13.09 | 46.40 | -25.10 | 111.69 | 0.4465 | 929.0 | 613.6 | |
| 0.00 | 0.85 | 0.00 | 0.47 | -12.55 | 46.26 | -25.24 | 110.43 | 0.4460 | 711.0 | 589.0 | |
| 1.44 | 4.25 | 0.80 | 2.35 | -12.61 | 46.05 | -25.45 | 110.41 | 0.4493 | 988.9 | 726.8 | |
| 0.00 | 1.61 | 0.00 | 0.90 | -12.54 | 45.86 | -25.64 | 110.15 | 0.4518 | 768.0 | 642.7 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -13.04 | 45.70 | -25.80 | 111.12 | 0.4564 | 637.0 | 430.5 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -12.65 | 45.48 | -26.02 | 110.15 | 0.4579 | 586.0 | 423.5 | |
| 0.00 | 1.19 | 0.00 | 0.67 | -13.10 | 44.78 | -26.72 | 110.68 | 0.4700 | -851.0 | -621.6 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -12.67 | 44.39 | -27.11 | 109.58 | 0.4738 | -997.0 | -762.3 | |
| 0.00 | 0.93 | 0.00 | 0.53 | -12.61 | 44.23 | -27.27 | 109.36 | 0.4759 | -784.0 | -636.8 | |
| 1.02 | 3.91 | 0.58 | 2.20 | -13.11 | 44.03 | -27.46 | 110.26 | 0.4808 | -784.2 | -630.9 | |
| 1.36 | 7.39 | 0.77 | 4.17 | -12.90 | 43.96 | -27.54 | 109.79 | 0.4810 | -879.0 | -749.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
