SDO HMI 2014-01-09 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.67 | 9.51 | 6.11 | 13.18 | 7.32 | 3.28 | -68.22 | 80.58 | 0.9343 | -410.5 | -214.3 | |
|
previous
or next observation for the same group /

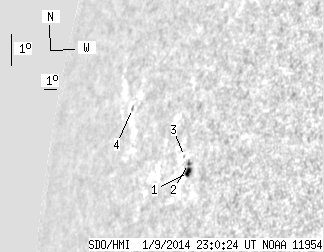

back to the solar disc SDO HMI 2014-01-09 23:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.74 | 7.39 | 4.89 | 9.68 | 6.77 | 4.51 | -66.99 | 81.00 | 0.9270 | -527.9 | -415.0 | |
| 0.93 | -1.00 | 1.22 | -1.00 | 7.05 | 4.43 | -67.06 | 80.71 | 0.9278 | -526.5 | 999999 | |
| 0.00 | 0.59 | 0.00 | 0.80 | 7.28 | 4.05 | -67.45 | 80.51 | 0.9304 | -122.0 | -131.9 | |
| 0.00 | 1.53 | 0.00 | 2.70 | 9.08 | 358.70 | -72.79 | 79.32 | 0.9612 | 17.0 | 26.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
