SDO HMI 2014-01-10 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.73 | 25.56 | 2.08 | 14.21 | -12.82 | 45.15 | -25.79 | 110.67 | 0.4553 | 164.1 | -41.1 | |
|
previous
or next observation for the same group /

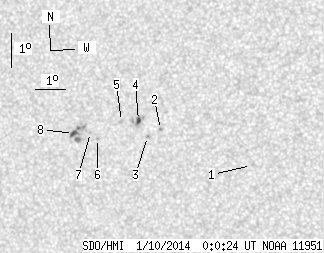

back to the solar disc SDO HMI 2014-01-10 00:00:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.18 | -14.05 | 49.71 | -21.24 | 116.96 | 0.3960 | 609.0 | 535.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -12.89 | 46.84 | -24.11 | 111.91 | 0.4311 | 977.0 | 794.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -13.09 | 46.38 | -24.56 | 112.02 | 0.4386 | 814.0 | 669.1 | |
| 1.78 | 8.24 | 0.98 | 4.54 | -12.60 | 46.14 | -24.81 | 110.80 | 0.4399 | 886.3 | 609.2 | |
| 0.00 | 2.04 | 0.00 | 1.13 | -12.61 | 45.57 | -25.38 | 110.46 | 0.4483 | 607.0 | 470.4 | |
| 0.00 | 0.76 | 0.00 | 0.43 | -13.10 | 44.71 | -26.24 | 110.94 | 0.4631 | -851.0 | -730.0 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -12.91 | 44.49 | -26.46 | 110.42 | 0.4653 | -784.0 | -652.8 | |
| 1.95 | 10.45 | 1.10 | 5.86 | -12.92 | 43.91 | -27.03 | 110.11 | 0.4738 | -831.3 | -764.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
